Service Manual
68
Installation and Maintenance
ProcedureStep

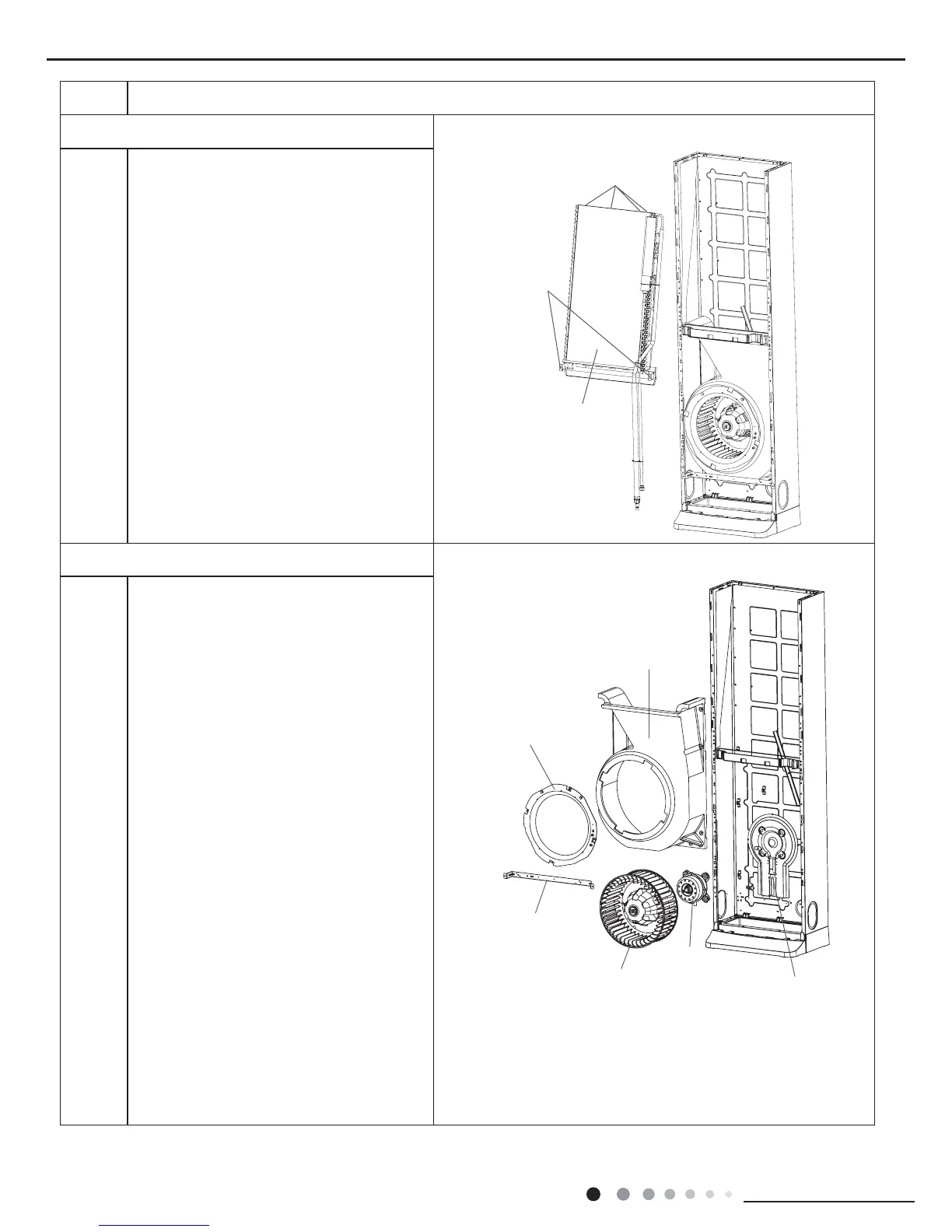

13.Remove evaporator
14.Remove propeller housing, centrifugal blade and motor
Remove 3 screws used for fixing the
press plate of propeller housing, and then
take out the pressure plate of propeller
housing.
Rotate the diversion loop to a certain
position in the clockwise direction and
then take out the diversion loop,
Remove 9 screws used for fixing the
propeller housing and then take out the
propeller housing.
Use wrench to remove the nuts used for
fixing the centrifugal blade and then pull
the centrifugal blade outwards.
Take out the centrifugal blade.
Remove 4 screws fixing the motor and 2
screws fixing the wire-pressing late, and
then remove the motor.
Remove 4 screws used for fixing the top
connection board and lower connection
board of evaporator and 2 screws used
for xing the side plate, pull left and right
side plates outwards slightly and take
out evaporator, baffle board and water
tray. After the evaporator is removed,
remove left and right wind boards on the
evaporator and the bafe board.
screw
diversion loop
centrifugal blade
motor
wire-pressing plate
press plate of propeller
housing
propeller housing
evaporator
screw
a
b
c
f
e
d
