Service Manual
71
Installation and Maintenance
ProcedureStep
Remove 4 screws used for xing the electric box
cover, remove the electric box cover and then
pull out the wiring terminals for each component.
At this time, you can remove related electric
components according to the needs;
Remove 9 screws used for xing the electric
box, pull the electric box outwards to remove it.
Remove 3 screws used for xing the wire-
passing groove, and then remove the wire-
passing groove cover.
Remove 3 screws used for xing the wire-
passing groove and then remove the wire-
passing groove sub-assy.

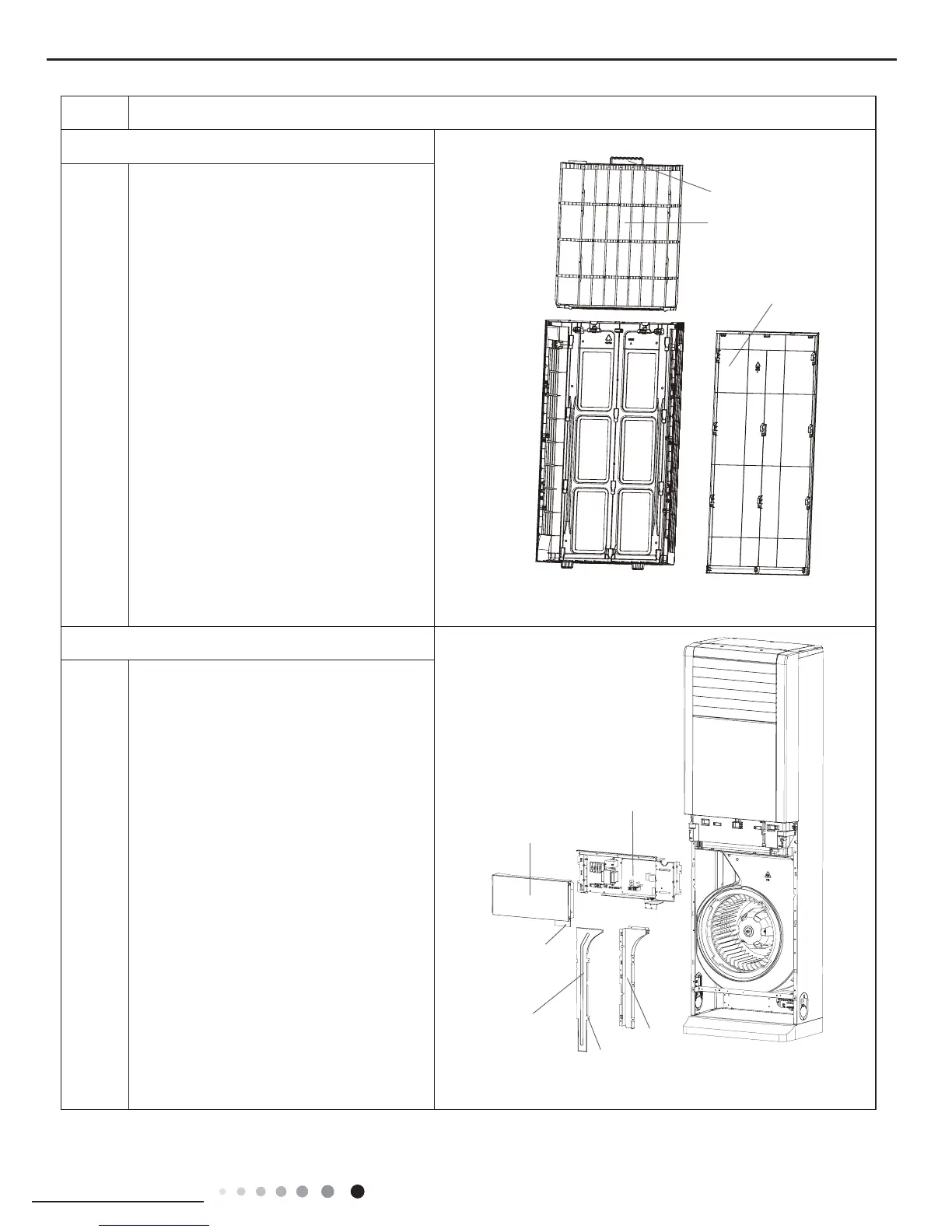

4.Remove electric box and wire-passing groove sub-assy
Electric box
Screw
Screw
Electric box cover
Wire-passing groove
cover
Wire-passing groove
Hold the buckle position at the upper part
of the lter, and pull it upwards to draw out
the lter.
Remove 2 screws at top part of the air-in
panel, pull the middle air-in panel upwards
and then remove the middle air-in panel.
3.Remove lter, middle air-in panel
Buckle
Filter
Middle air-in panel
b
a
To Next Page
