Service Manual
73
Installation and Maintenance

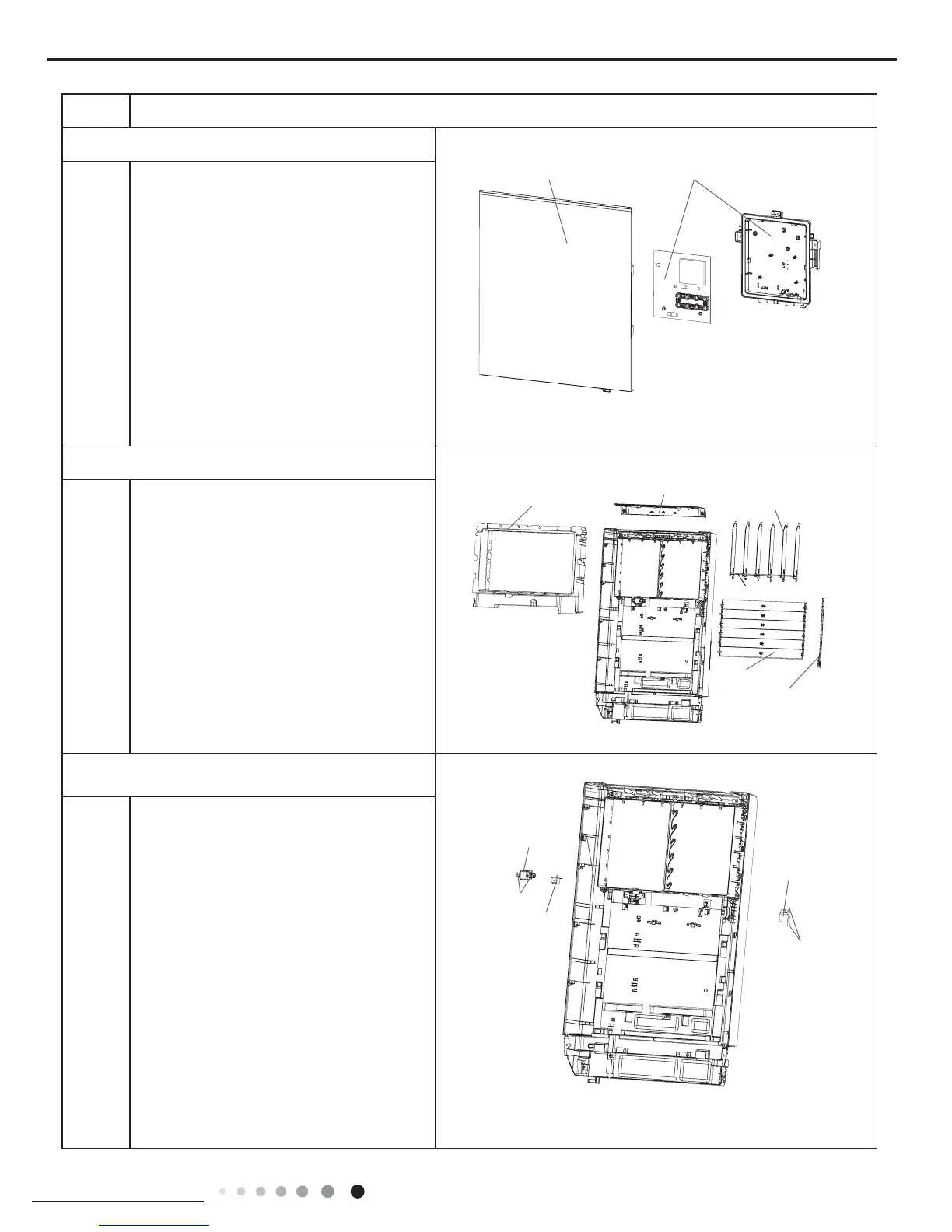

ProcedureStep
Swing motor
Screw
Screw
Motor cover
Air-guide louver
Upper cover
Swing blade
Guide louver
Air-guide connection
rod
Swing connection rod
Air-out foam
Big front panel sub-assy
Display box sub-assy
Take out the display connection wire from
the wire groove, remove 2 screw at the
back of the display cover and then remove
the display cover sub-assy.
7.Remove display box
Hold both end of the foam, and then remove
the air-outlet foam;
Remove 2 screws at the upper part of the
upper cover and 2 screws at the back side,
and then the upper cover can be removed.
Remove the air-guide connection rod and then
pull the guide louver outwards to remove it.
When the swing connection rod is removed,
pull the swing blade outwards to remove it.
8.Remove upper cover, air-outlet foam, guide louver,
swing blade
9.Remove swing motor and air-guide motor
Remove screws used for xing the air guide
motor, and then the air guide motor can be
removed.
Remove screws used for xing the motor
cover, remove the motor cover and then the
swing motor can be removed.
a
a
b
b
c
d
