Gree GWC User Manual

94
Installation and Maintenance
Service Manual

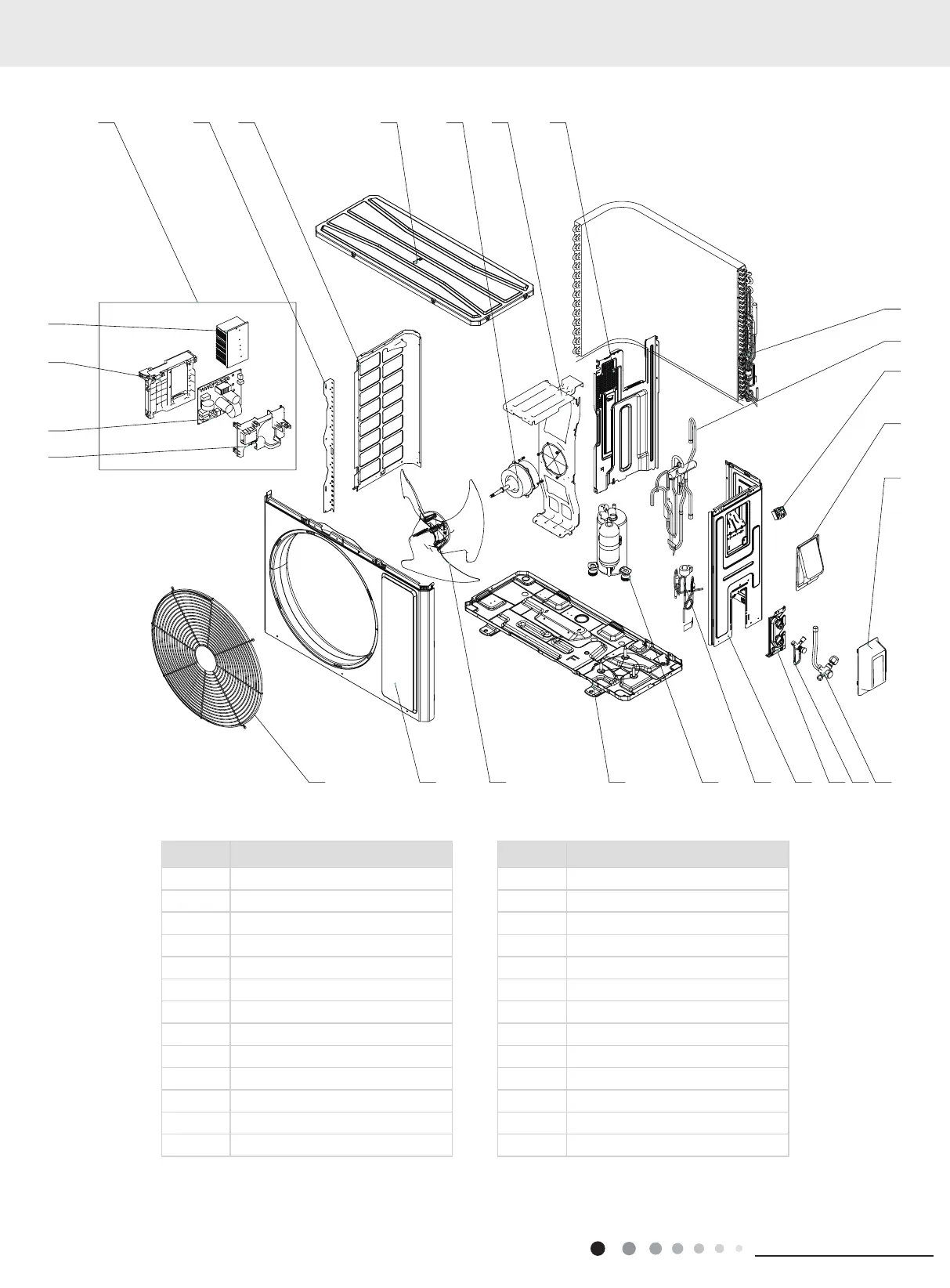

The component is only for rererence;please refer to the actual product
4LIV24HP230V1AO
NO. Description
1 Front Grill
2 Front Panel
3 Axial Flow Fan
4 Chassis Sub-assy
5 Compressor and Fittings
6 Electronic Expansion Valve
7 Right Side Plate
8 Valve Support
9 Cut-off valve 1/4(N)
10 Cut-off valve 5/8(N)
11 Valve Cover
12 Cover of Pass Wire
13 Terminal Board
NO. Description
14 4-Way Valve Assy
15 Condenser Assy
16 Clapboard Assy
17 Motor Support
18 Motor
19 Top Cover Assy
20 Left Side Plate
21 Condenser Left Border Plate
22 Electric Box Assy
23 Radiator
24 Electric Box
25 Main Board
26 Electric Box Cover
Some models may not contain some parts, please refer to the actual product.
1 2 3 4 5 6 7 8 9 10
12
13
14
15
16171819202122
23
24
25
26
11

Gree GWC Specifications

General

Power Supply	220-240V, 50Hz
Type	Split
Refrigerant	R410A
Features	Auto Restart, Sleep Mode, Turbo Mode
EER (Energy Efficiency Ratio)	3.5
Noise Level	50 dB (Outdoor)
Cooling Capacity	12000 BTU/h
Heating Capacity	12000 BTU/h
Weight	Indoor: 9 kg, Outdoor: 30 kg
