Installation and Maintenance
Service Manual
Step Procedure

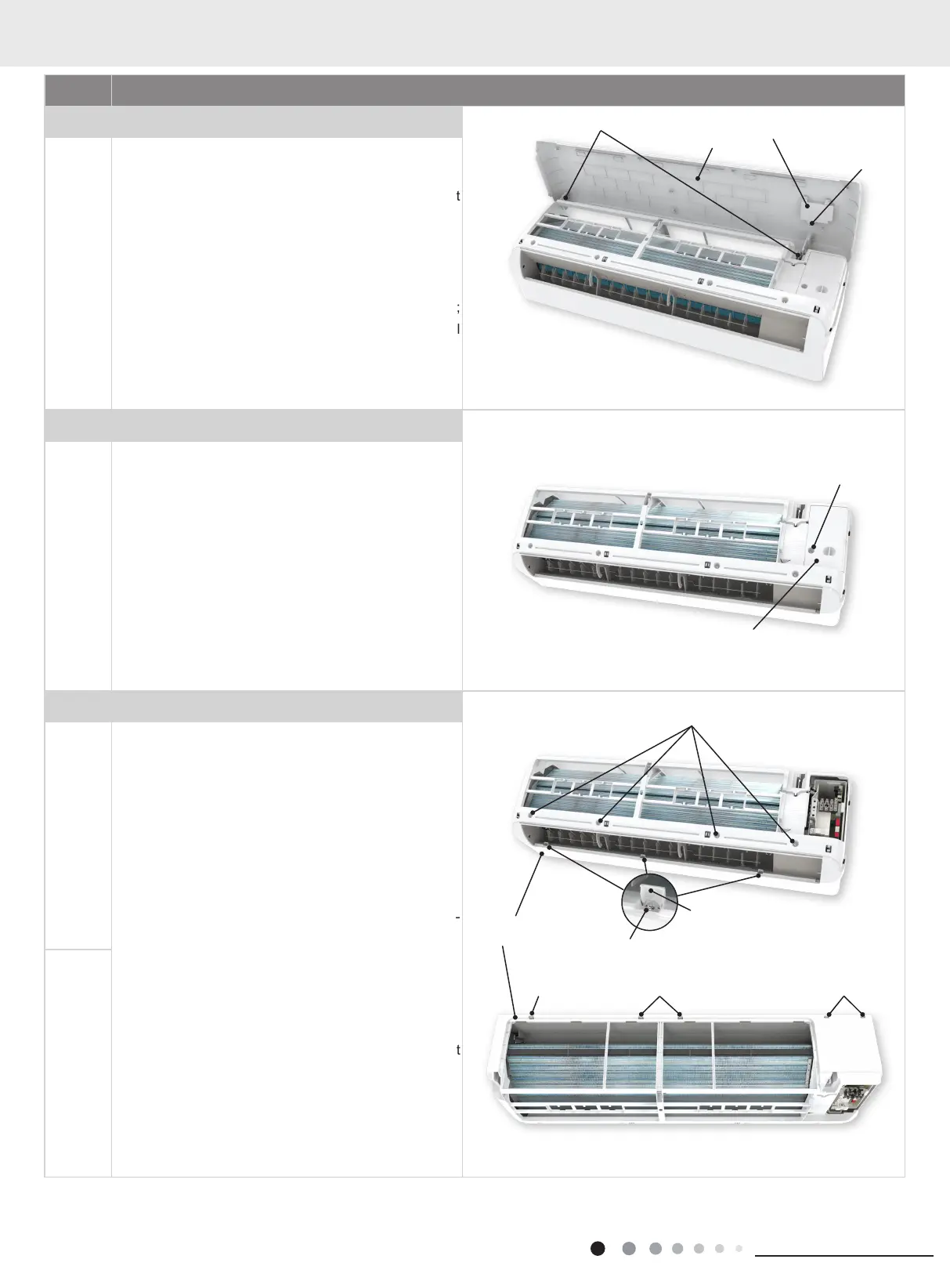

3. Remove panel
Open the front panel; separate the panel rotation shaft
from the groove xing the front panel and then removes
the front panel.
Note:
The display of some models is fixed on the panel;
unscrew the screws fixing the display on the panel
before removing the panel.
4. Remove electric box cover 2
Remove the screws on the electric box cover 2 to
remove the electric box cover 2.
5. Remove front case sub-assy
a
Remove the screws xing front case.
Note:
(1) Open the screw caps before removing the screws
around the air outlet.
(2) The quantity of screws fixing the front case sub-
assy is different for different models.
Loosen the clasps at left, middle and right sides of front
case. Life the front case sub-assy upwards to remove
it.
b
Panel rotation
Panel
Display
Screw
Screw
Screws
Screws
Screw caps
Front case
sub-assy
Left clasp Middle clasp Right clasp
Electric box cover 2
