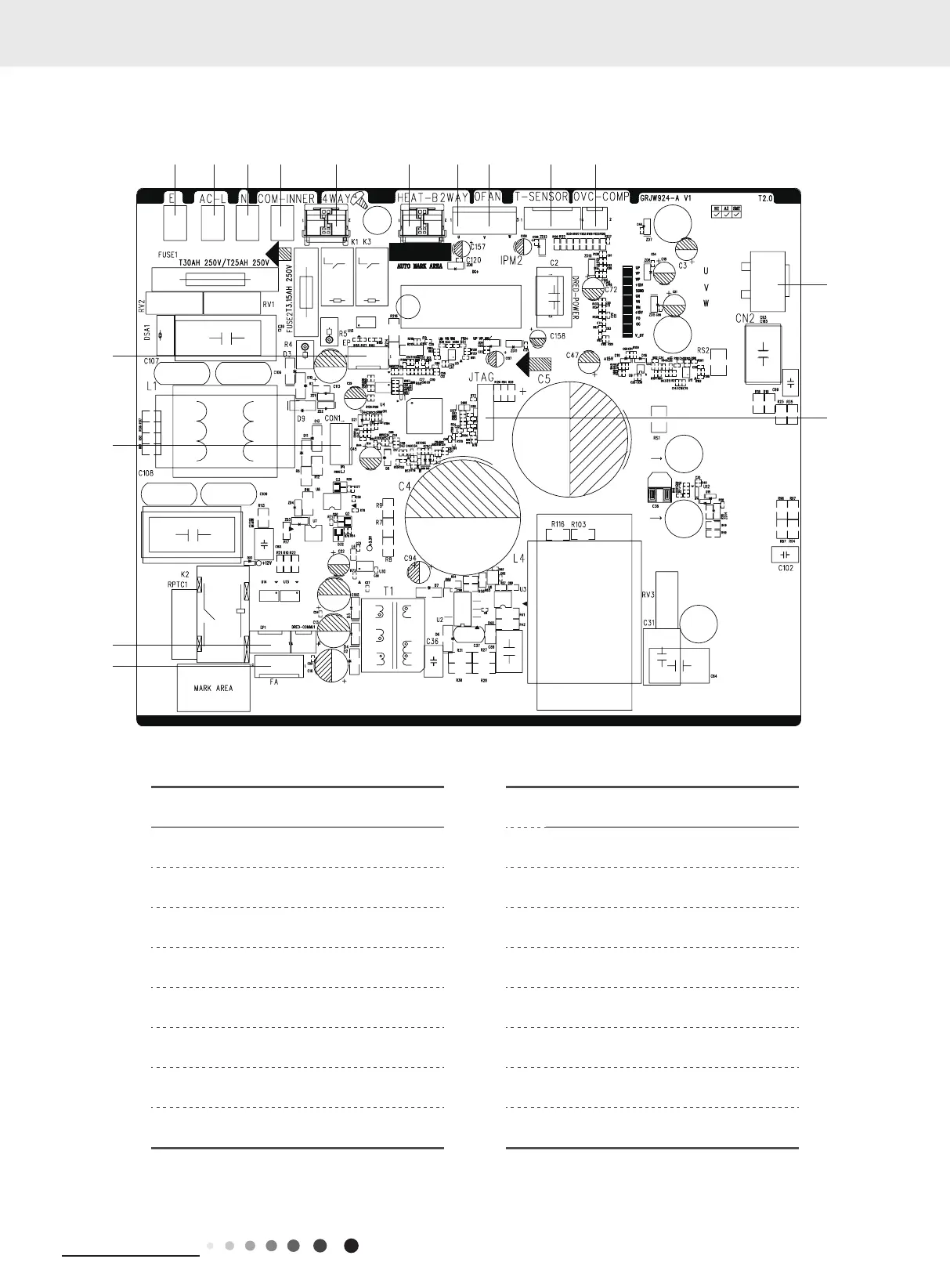

GWH24AFE-K6DNA2I/O
No. Name No. Name
1 Terminal of electronic expansion valve 9 4-way valve
2 E disk(Reserved) 10 Electric heating belt of chassis
3 Computer monitoring interface 11 2-way valve
4 EE ash drive 12 DC motor
5 Grounding wire 13 Temperature sensor
6 Live wire 14 Overload interface of compressor
7 Neutral wire 15 Terminal of compressor
8 Communication wire 16 Interface of program debugs
