c
to remove the cover.
d Remove every wiring terminals, and remove the
electric box cover sub-assy.
a Remove the screws fixing connection pipe
clamp, to remove the connection pipeclamp.

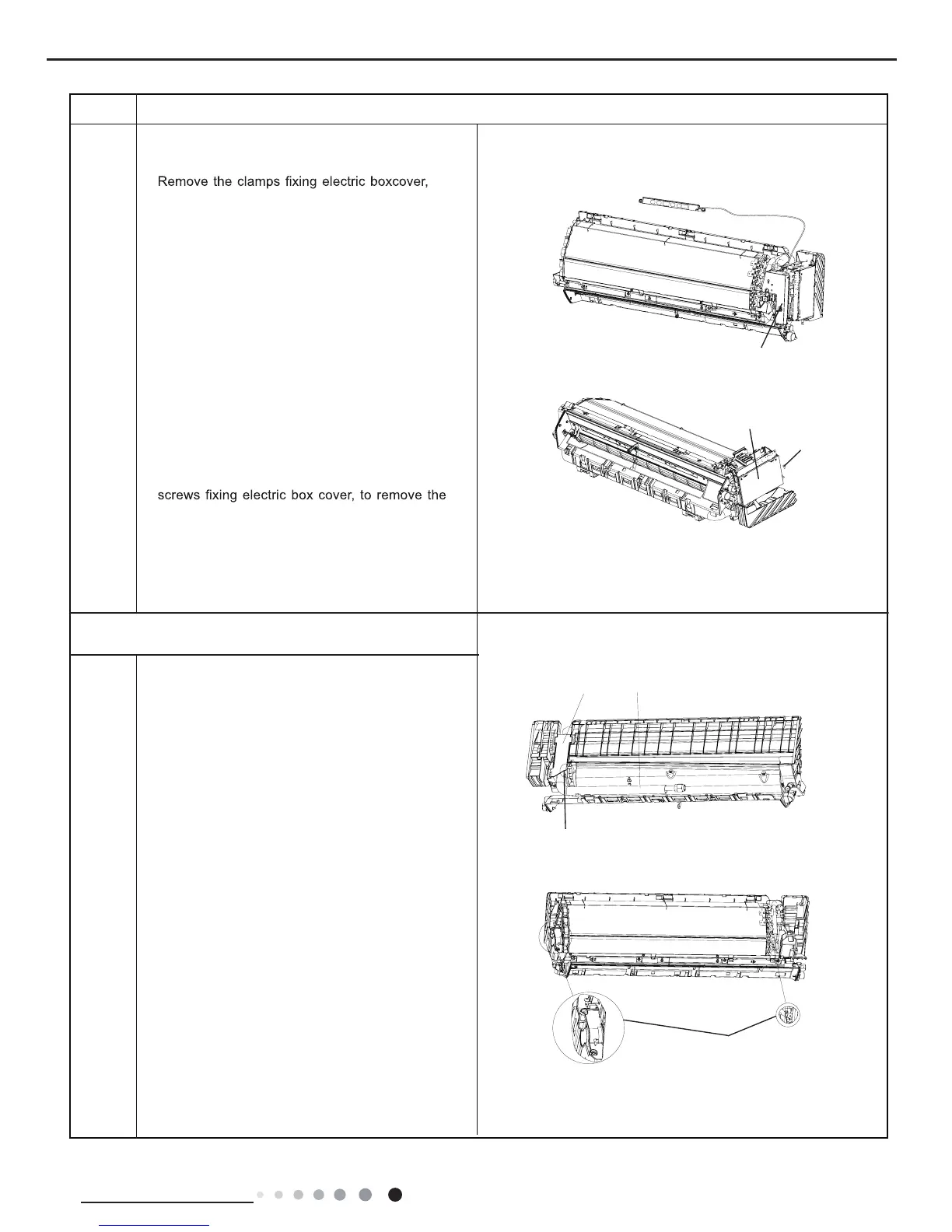

8.Remove evaporator sub-assy
electric box cover sub-assy
screw
electric box cover
screw
auxiliary piping
pipe clamp
screw
Steps Procedure
