Installation and Maintenance
Service Manual
Steps Procedure

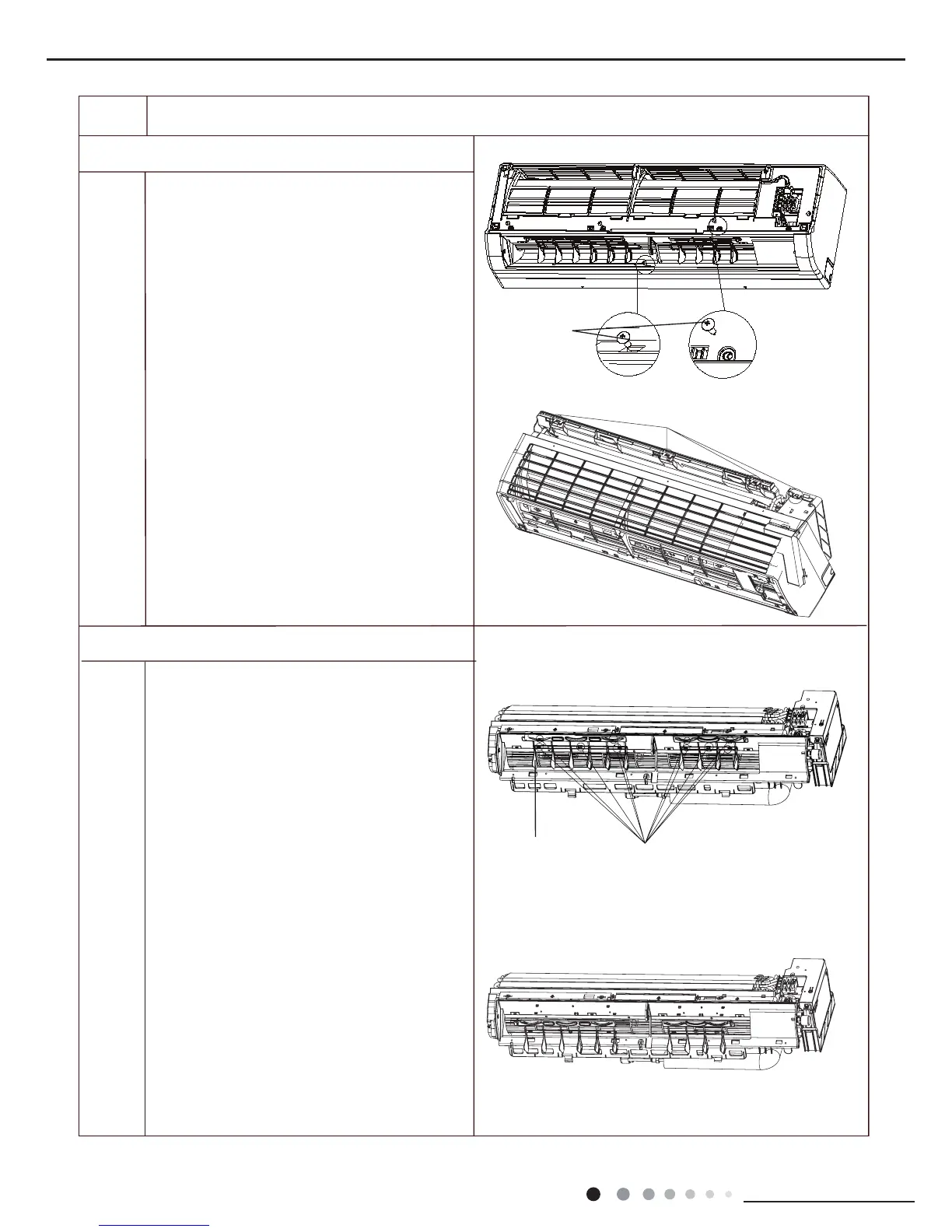

Remove vertical louver.
5. Removal of front case
6. Removal of vertical louver
Screw
Clasp
Remove connection screws between front
case and rear case.
Release clasp connecting front case and rear
case and then remove the front case.
Remove 10 clasps of vertical louver and rear
case assy.
b
a
a
b
vertical louver
Clasp
To Next Page
