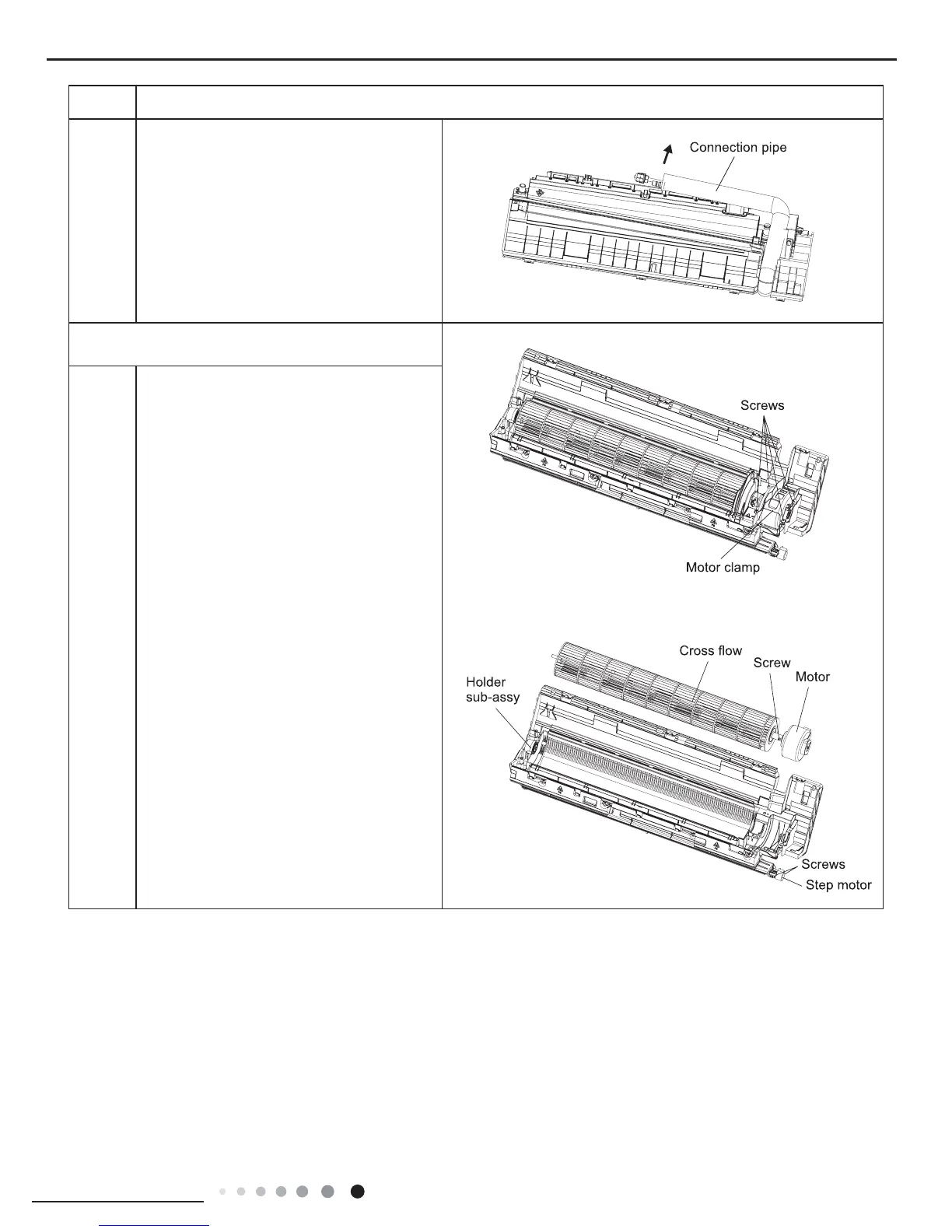

10.Remove motor and cross ow blade
Adjust the position of conncetion pipe on
evaporator up wards to remove it.
Remove the screws xing motor clamp and
then remove the motor clamp.
①
Remove the screws at the connection
place of cross ow blade and motor; lift
the motor and cross ow blade upwards to
remove them.
②
Remove the bearing holder sub-assy.
③
Remove the screw xing step motor and
then remove the step motor.
d
a
b
