Technical Information
Service Manual

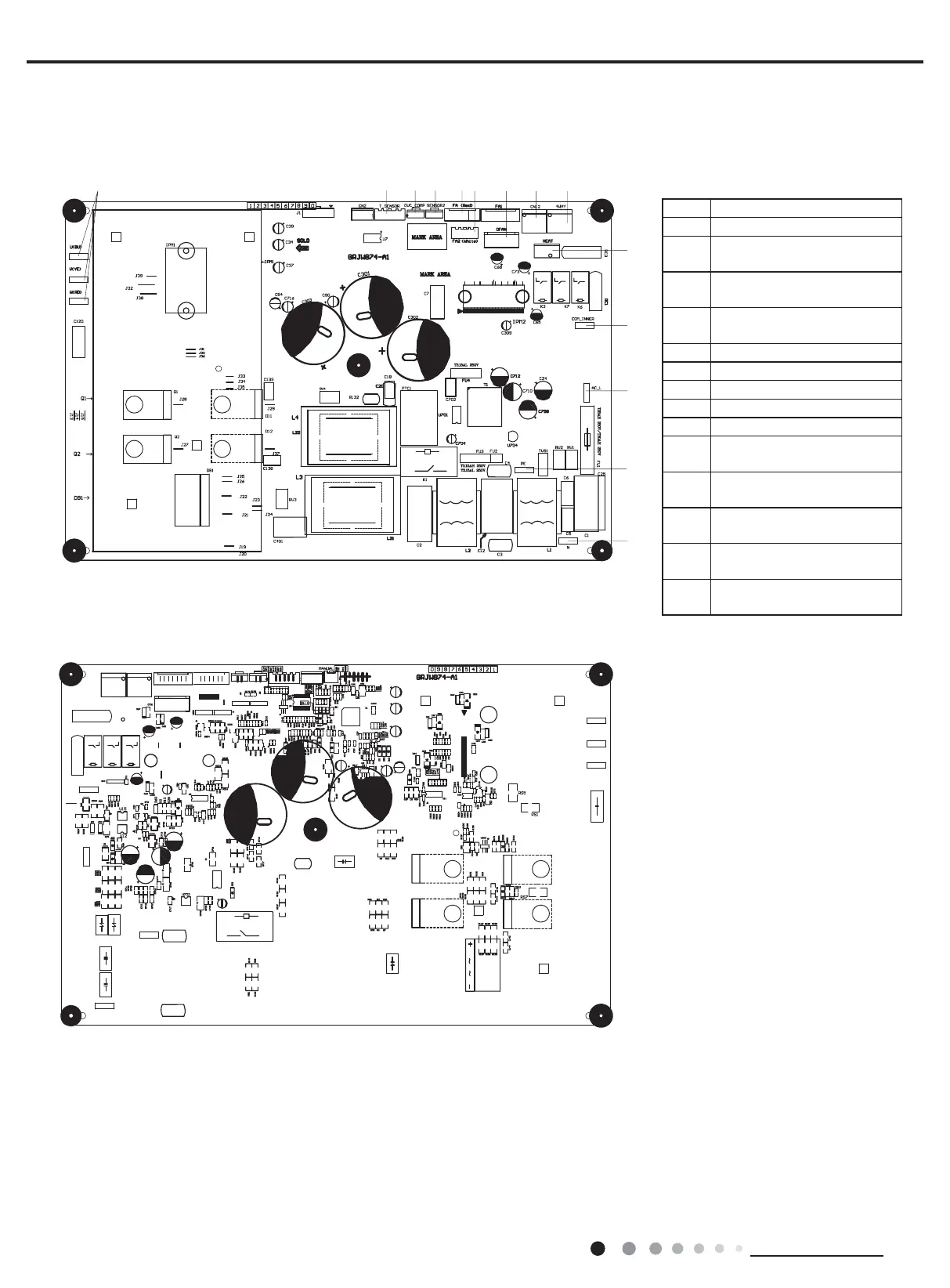

● Top view
● Bottom view
11
12
13
14
No. Name
1 Interface of compressor
2
Interface of temperature
sensor
3
Terminal of compressor
overload protection
4
Low-temperature cooling
sensor
5 Cooling A valve
6 Cooling B valve
7 Interface of outdoor motor
8 Interface of 2-way valve
9 Interface of 4-way valve
10
Terminal of chassis electric
heating
11
Communication wire with
indoor unit
12
Live wire interface of power
cord
13
Earthing wire interface of cold
plasma
14
Neutral wire interface of
power cord
24K
