Gree JKFD5DQS/Na-E - Page 41

GREE Air-ccoled Closed Control Unit Service Manual
38

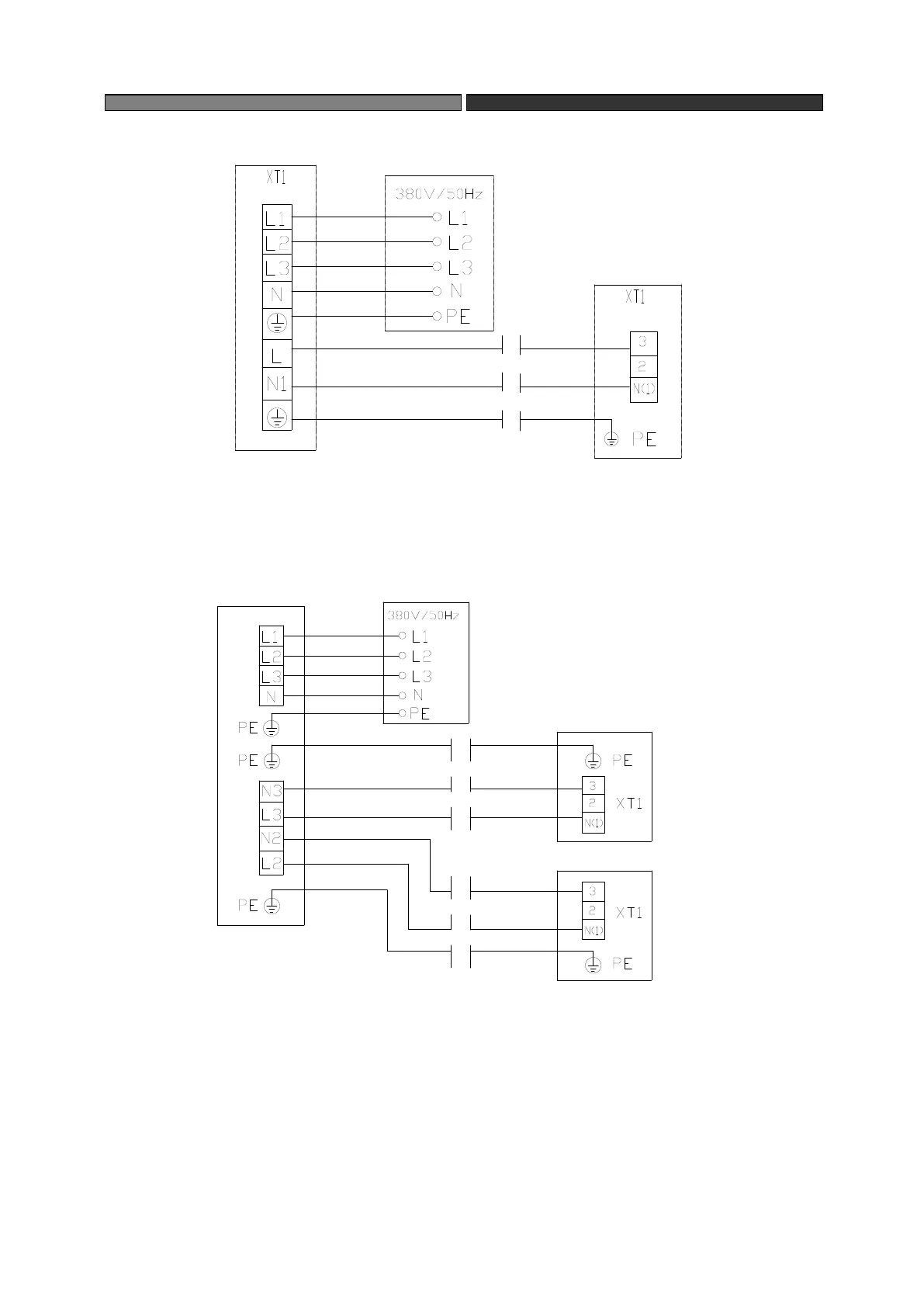

Power Supply Terminals
of The Indoor Unit
Input Power Supply
Power Supply Terminals
of The Outdoor Unit
Patchboard
Patchboard
Brown
Blue
Yellow/Green
Blue
Brown
Yellow/Green
JKFD7XXX JKFD13XXX JKFD19XXX
Power Supply Terminals
of The Indoor Unit
Input Power Supply
Power Supply Terminals
of The Outdoor Unit 2
Power Supply Terminals
of The Outdoor Unit 1
Yellow/Green
Yellow/Green
Blue
Brown
Brown
Blue
Patchboard
Patchboard
Patchboard
Patchboard
XT1
XT2
JKFD25XXX、JKFD40XXX(Dual circuit)
