GREE Air-ccoled Closed Control Unit Service Manual
39
YEGN
BU
BN
Patchboard
Patchboard
Patchboard
XT1
Input Power
XT2
PE
PE
PE

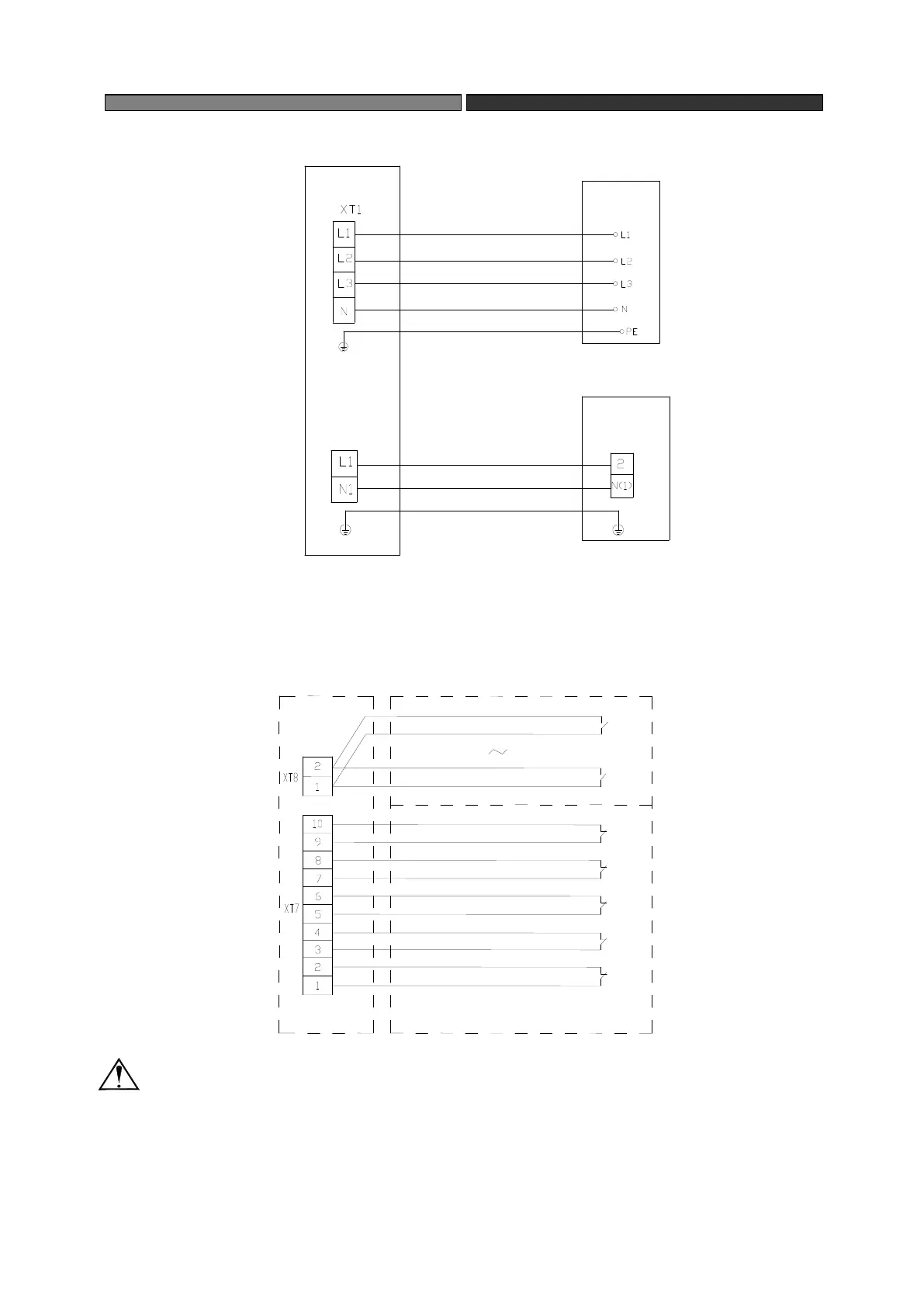

Power Supply Terminals
of The Outdoor Unit
380V/50Hz
Power Supply Terminals
of The Indoor Unit
JKFD40QS/Na-M (380V 3N～ 50Hz)
Unit Terminal
Customer Terminal
All Kinds of Warning Wiring Diagram
Fire Alarm
Interlock Alarm 1
Electrode of Waterlogging Switch 1
Electrode of Waterlogging Switch 5
Interlock Alarm 2
Interlock Alarm 4
Interlock Alarm 3
Wiring has been short circuited before outgoing.
(If need, please remove the wiring.)
Caution: All electric installations have to be conducted by professional personnel in
accordance with the local law, regulations and this manual.
