GMV6 HR Mode Exchange Box
10
4 Installation Instruction
4.1 Installation of Mode Exchange Box
4.1.1 Dimension of Outdoor Unit and Mounting Hole Position
After the unit is installed, a maintenance port should be reserved at the electric box side of unit
for maintenance. The position of maintenance port should be lower than the lower size of unit.
The Mode Exchange Box shall be installed near the maintenance port or air return of indoor unit.
(Note: if it is installed near the air return, please make sure not to affect air return and maintenance).

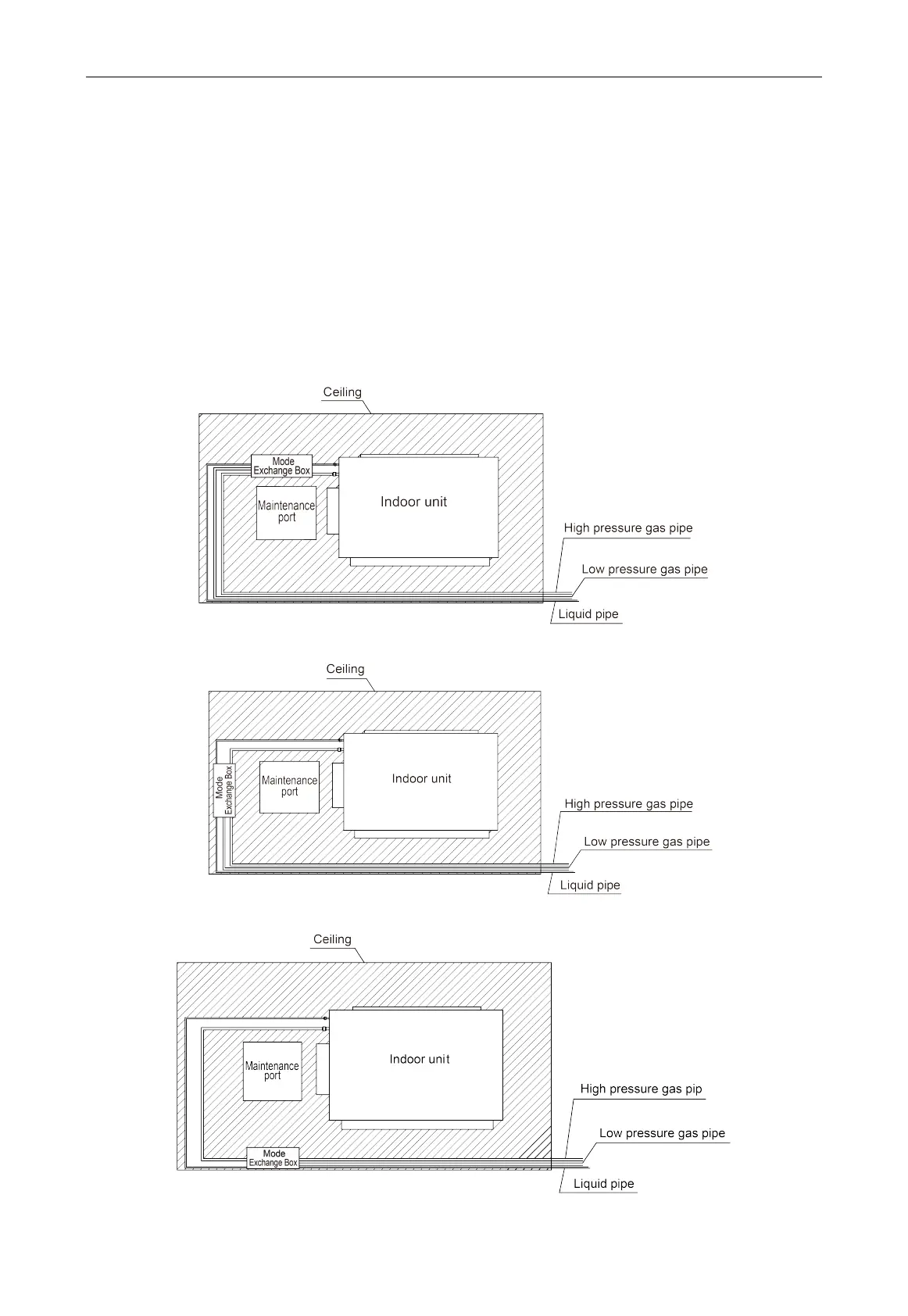

The following pictures detailed describe the installation of maintenance port and Mode Exchange
Box:
Fig.4.1.1
Fig.4.1.2
Fig.4.1.3
