(2) Connection of Multi-twisted Wire (shown in Fig 5.2)
1) Use a wired stripper to strip away about 10mm of the insulation layer at the end of
multi-twisted wire.
2) Use a screwdriver to remove screw on the wiring board of air conditioner.
3) Use a round terminal fastener or a plier to securely fasten the round terminal with
each core wire of the multi-core wire.
4) Confirm each position of core wire on the round terminal and then use a
screwdriver to tighten the terminal screw.
Unit: mm

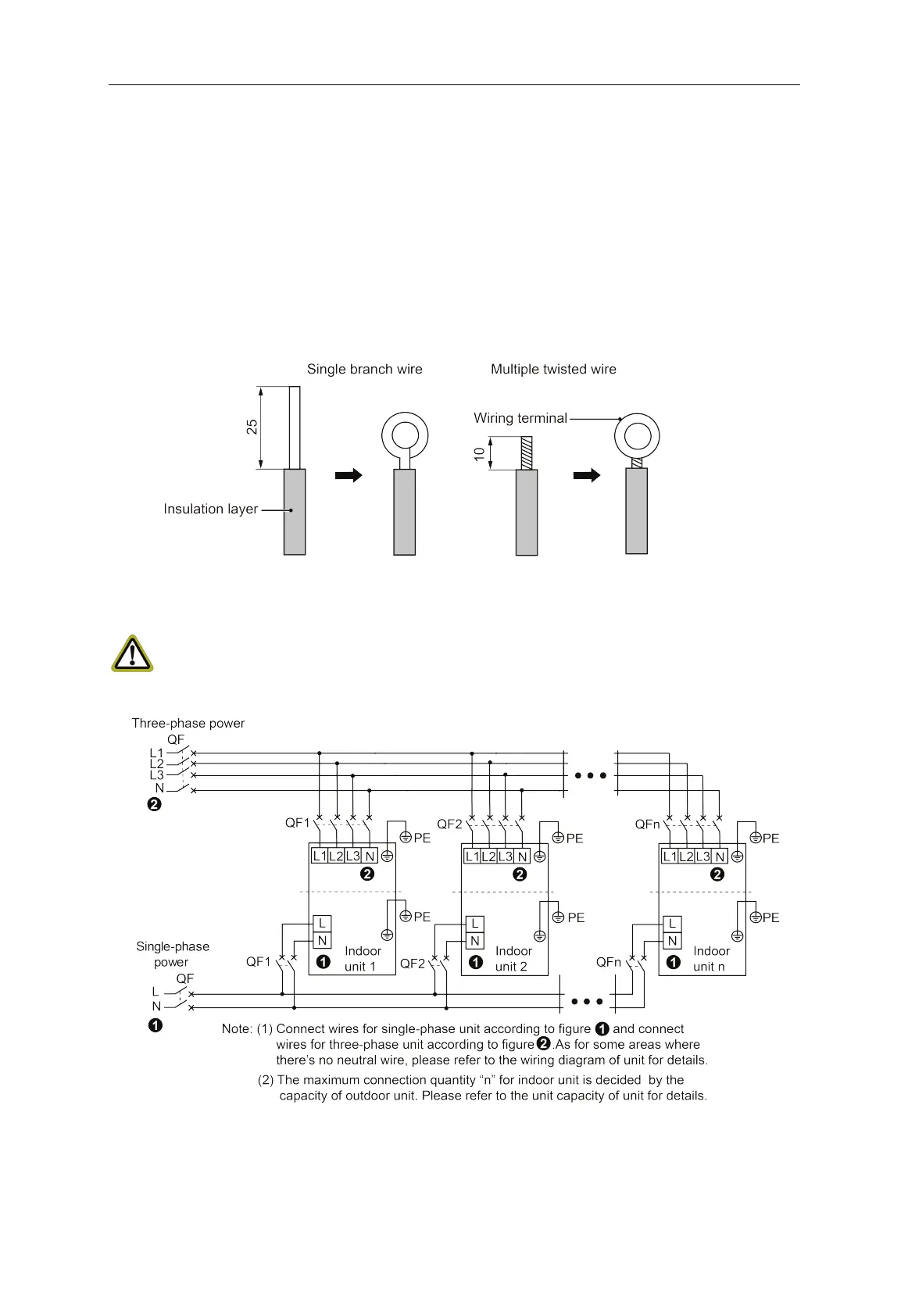

Fig 5.1 Fig 5.2
5.2 Power Cord Connection
NOTICE:
Power supply of each indoor unit and heat storage module must be from the same source.
Fig 5.3
For heat storage module that uses single-phase power
1) Remove the cover of electric box of heat storage module.
2) Lead the power cord across the rubber ring.
To Next Page
