Multi Variable Air Conditioners Heat Storage Module
3
2 Product Introduction
Names of Key Components

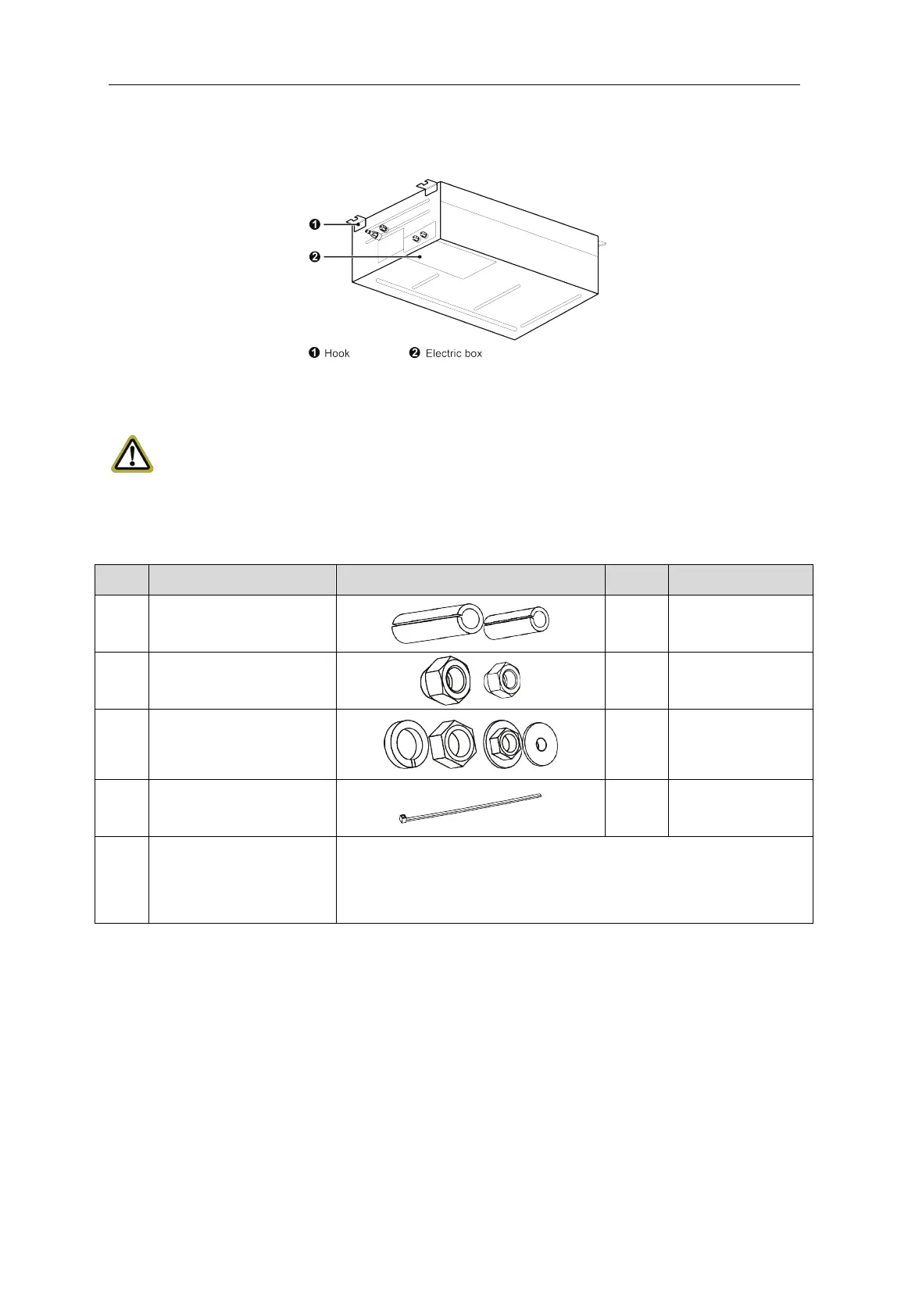

Fig2.1
3 Preparations for Installation
NOTICE:
Product graphics are only for reference. Please refer to actual products.
Unspecified measure unit is mm.
3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No. Name Graphics Quantity Purpose
1 Insulating materials
2
gas pipe and liquid
2 Union nut
2
Used for the joint of
gas pipe and liquid
3
Spring washer M8, nut M8,
nut with washer M8, washer
M8
4
Used for hanging the
indoor unit
4 Tieline
6
Wrap the sponge at
the connection
5 Others
User Manual: 1 copy
Loosen-leaf of Instruction Manual: 1 copy (harmful substance content table)
Qualified Certificate: 1 copy
Bar Code : 1 copy
3.2 Location for Installation
(1) The top holder must be strong enough to support unit's weight.
(2) In order to make sure the space for maintenance, please install the heat storage
module according to the dimension described below.
(3) Keep the unit away from heating source, inflammable gas or smoke.
(4) This is a concealed ceiling type unit.
(5) Indoor unit, outdoor unit, power cord and electric wire should stay at least 1m from the
TV set and radio. Otherwise, these electrical appliances may have image interference
and noise (Even if the distance is 1m, when there is strong electric wave, noise may
still occur).
