Multi Variable Air Conditioners Heat Storage Module
6
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
Item
A B C D E

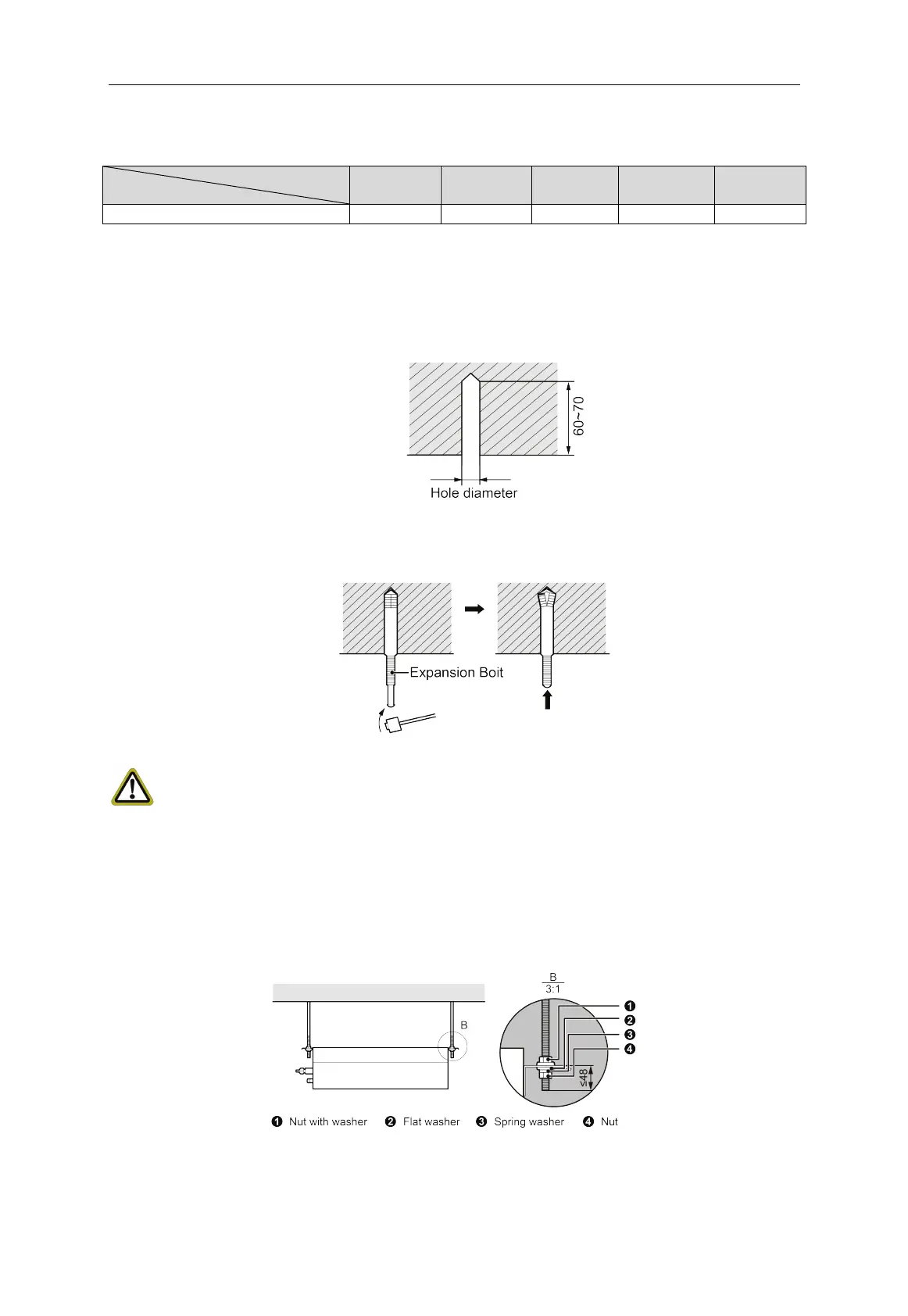

4.1.2 Punching of Bolt Spots and Bolt Installation
Punch holes on the installation area according to the 4 spots on the paper pattern; the
punching diameter may refer to the diameter of expansion bolt, about 60mm to 70mm depth, as
shown in Fig 4.2
Unit: mm
Fig 4.2
Insert the expansion bolt M10 into the hole and then drive the iron nail into the bolt, as
shown in Fig 4.3.
Fig 4.3
NOTICE:
The length of bolt depends on the installation height of the unit, bolts are field supplied.
4.1.3 Lift the Unit
Lift up the unit to the ceiling and secure it on the bolt. Use specialized nut to secure the
unit.
Unit: mm
Fig 4.4
