clearanceS to combuStIbleS:
IMPORTANT: The GF40 must have a Hearth Pad when installing the unit on a combustible floor. The included hearth pad
meet all the requirement of a proper hearth pad. If you do not use the included hearth pad a certified non combustible Hearth
Pad with a minimum R Value of at least 0.84 must be placed underneath the unit and extend six inches in front of the unit
measured from the glass. If the GF40 is installed on carpet the use of a solid non combustible Hearth Pad must be used under
leveling legs.
These dimensions are minimum clearances but it is recommended
that you ensure sufficient room for servicing, routine cleaning
and maintenance.
A. Side wall to unit 8 inches (200 mm)
B. Back wall to unit 5.5 inches (140 mm)
C. Back wall to Chimney Connector 4 inches (100mm)
D. Corner to unit 3 inches (75 mm)
E. Glass to Hearth Pad 6 inches (150 mm)
The unit may be installed in an alcove if desired.
These minimum clearances to combustibles must
be maintained at all times. Be sure to leave room for
servicing, routine cleaning, and maintenance. These are
inside dimensions.
Minimum Alcove Width 36 inches (915 mm)
Minimum Alcove Height 48 inches (1220 mm)
Minimum Alcove Depth 30 inches (76 mm)
alcove clearanceS:

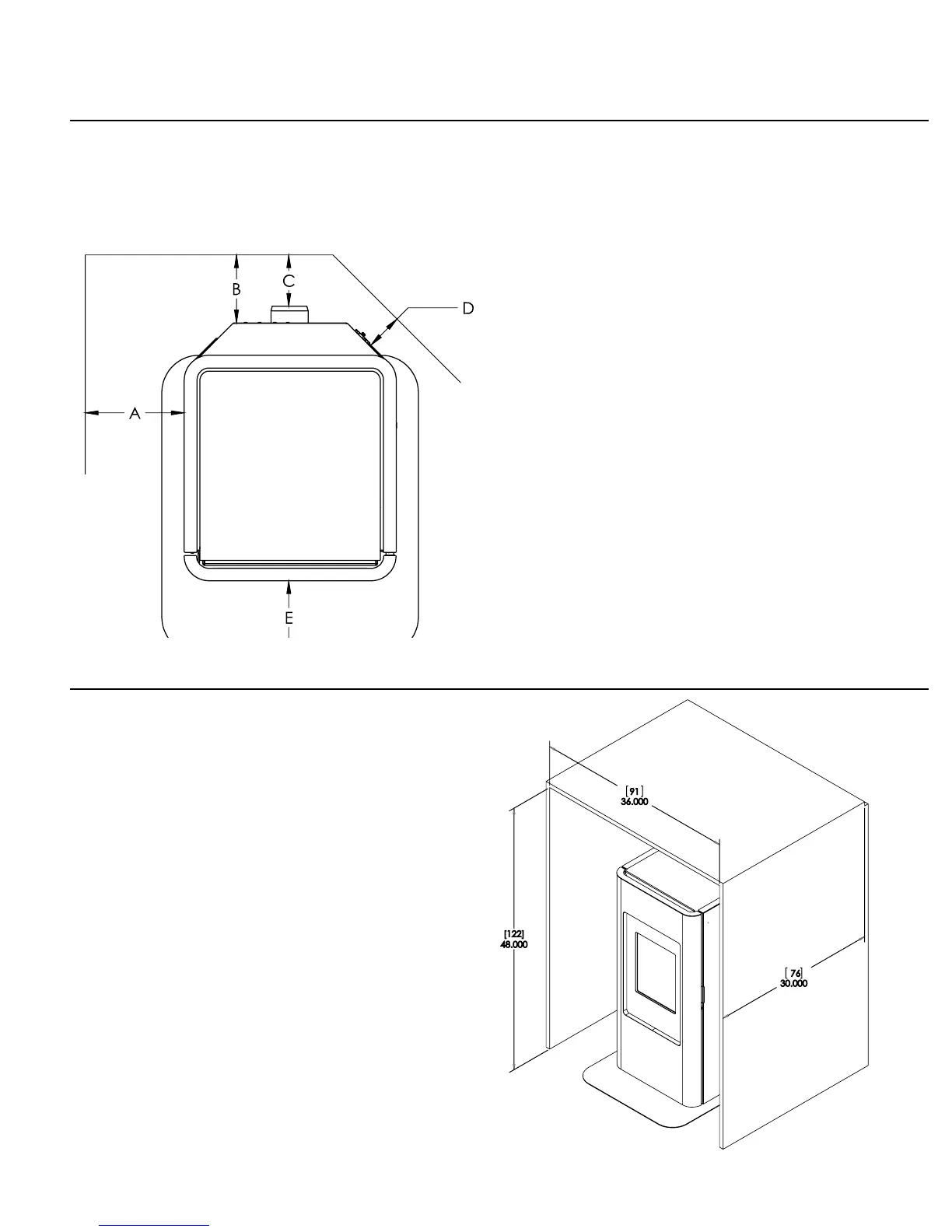

Figure 3: Minimum Install Clearances
Figure 4: Minimum Alcove Clearances
