thermoStat InStallatIon:
1. Remove the outer door and the right side cabinet for easy access to screws securing unit to pallet, there are four T-20
screws at the front and three at the back of each cabinet side.
2. Loosen four T-20 screws securing Bottom Back Grill, once
loose, slide down and remove.
3. The harness will need to be unplugged from the board in order
to move cabinet side away from the unit. Once the harness
is unplugged you can easily access the circuit board and will
be able to attach the thermostat wires to the thermostat
connection shown in Figure 26.
4. Use a small flat head screwdriver to tighten and secure the
wires. The wires should be run through the plastic bushing
located at the back of the stove, opposite side from the power
cord.
5. Reverse steps 3-1

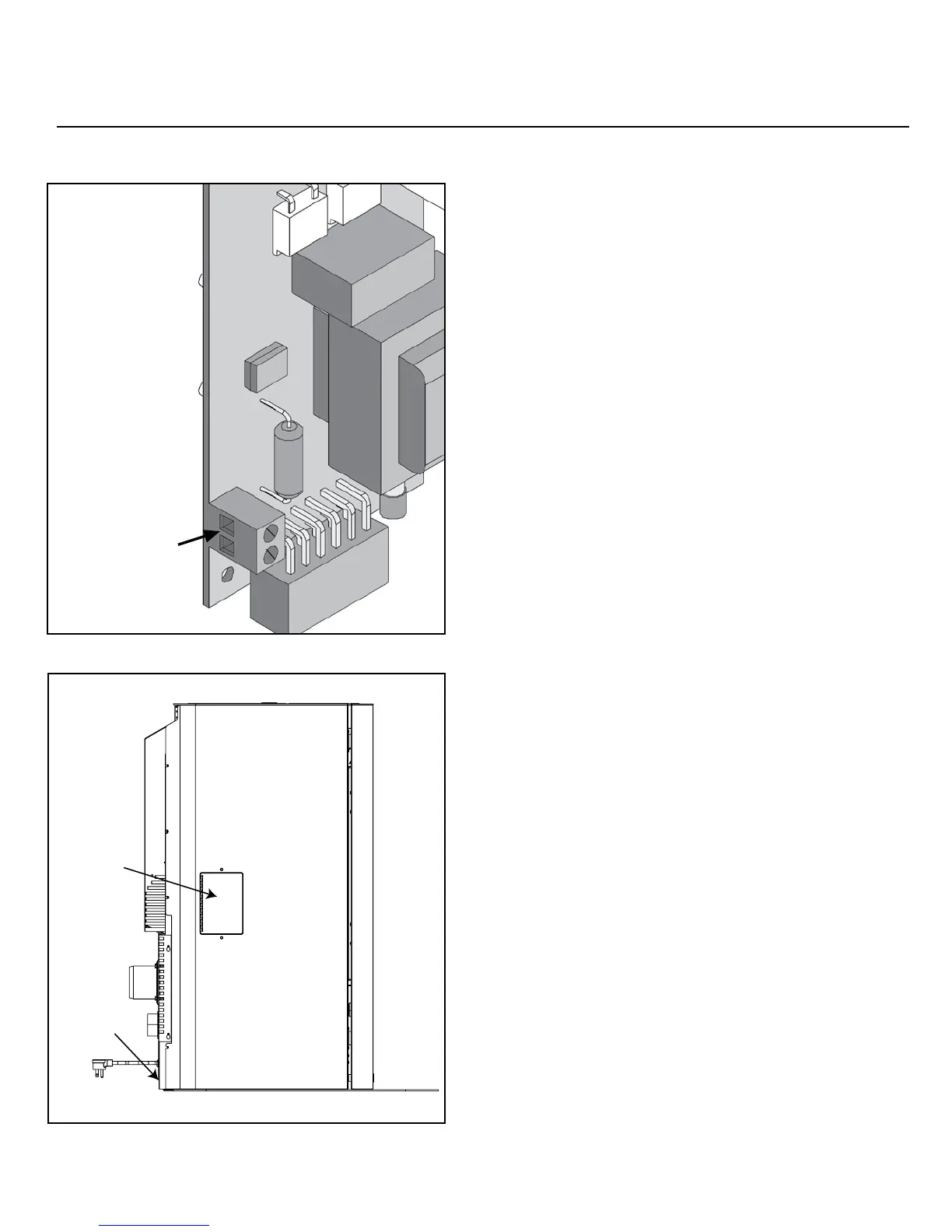

Figure 26: Thermostat wire location
Figure 26a: Circuit board location
Connect Thermostat
wires here.
Circuit board
location
Plastic
bushing
20 | GF40 Freestanding Pellet Stove
|
