hearth mount InStallatIon:

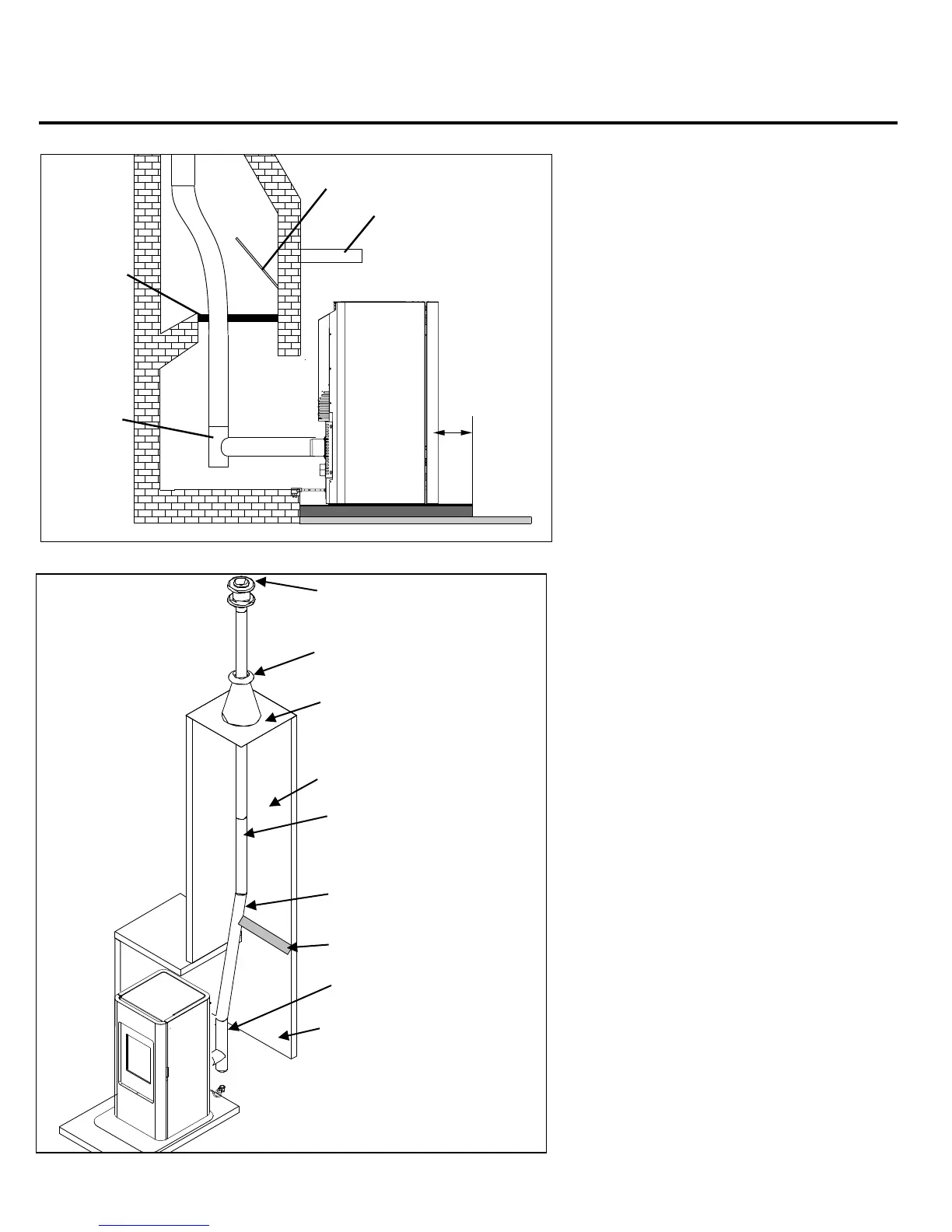

Figure 17: Freestanding hearth mount installation overview.
Refer to Figures 16 and 17.
1. Install the hearth pad.
2. Lock the fireplace damper in the open
position.
3. Install a positive flue connector at the
fireplace dampers or seal the chimney at
the top.
4. Connect a tee to the exhaust pipe.
5. Install flexible stainless steel liner or listed
pellet vent to the top of the chimney.
Figure 16: Freestanding hearth mount installation.
Combustible FloorMasonry Fireplace
Rain Cap
Steel Plate or Flashing
Flexible or
Rigid 6" Stainless
Steel Liner
10" (25.4 cm) Mantel
Minimum 8" (20 cm)
from top of stove
Damper Removed
or Fastened Open
Clean-out tee
Flue
Connector
Min 6” (15cm)
Hearth pad or
other floor
protection
Rain cap
Storm collar
Seal plate (cover plate)
Existing masonry flue
Vent pipe (single wall
stainless flex pipe or
solid PL vent)
Fireplace damper
location
Clean out tee
Existing fireplace
Flexible vent connector
(use this 5 foot [152cm]
section of pipe to vent
past fireplace damper or
small shelf)
