Figure 9: Corner Installation.
corner through Wall InStallatIon:
mobIle home InStallatIon:
● Secure the heater to the floor using the two
holes in the base.
● Ensure the unit is electrically grounded to the
chassis of your home (permanently).
● Do not install in a room people sleep in.
● Outside fresh air is mandatory. Secure outside
air connections directly to fresh air intake pipe
and secure with three screws evenly spaced.
CAUTION: THE STRUCTURAL INTEGRITY
OF THE MANUFACTURED HOME FLOOR,
WALL AND CEILING/ROOF MUST BE
MAINTAINED.

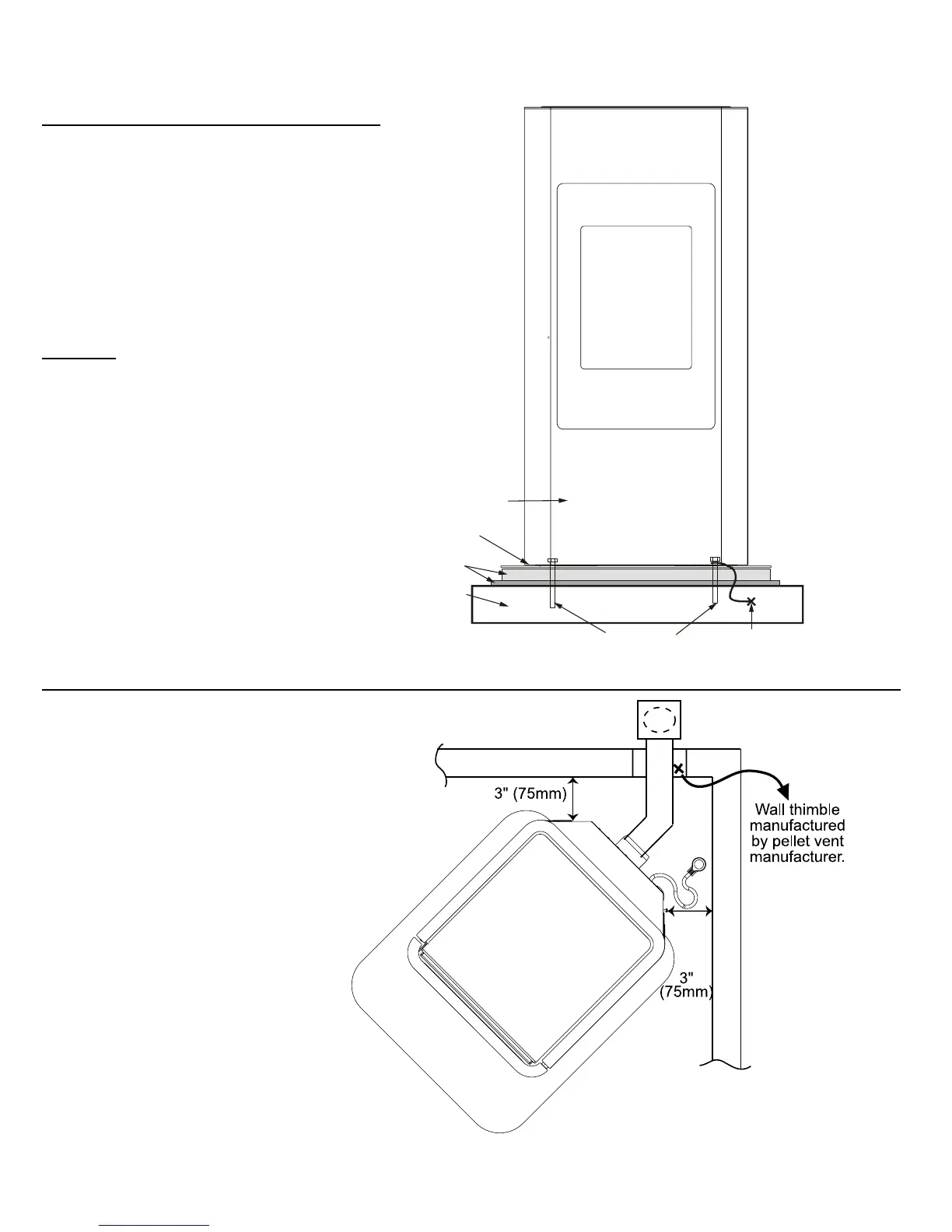

Figure 8: Mobile home installation.
Minimum clearances must be maintained
for a corner installation as shown in
figure 9.
GF40
1
/4” Lag Bolts
Securely Fastened
Ground Wire Directly
to Metal Chassis
Hearth Pad
Flooring
Steel Frame
