Greenheck 100 Series User Manual

Universal Single Width Fans 21
®
• Series 300
Motor
Outlet Flange*
Outlet Guard*
Belt(s)
Drive Frame Assembly
Scroll Housing
Heat Slinger*
Rub Ring*
Shaft Seal*
Fan Shaft
Opposite Drive Side Bearing
Drive Side Bearing
Wheel
Inlet Cone
Inlet Flange*
Inlet Companion
Flange*
Grease Container*
Grease Fan Brackets*
Inlet Guard*
*Optional Accessories
Shaft Pulley
(driven)
Motor Pulley
(driver)
Weatherhood

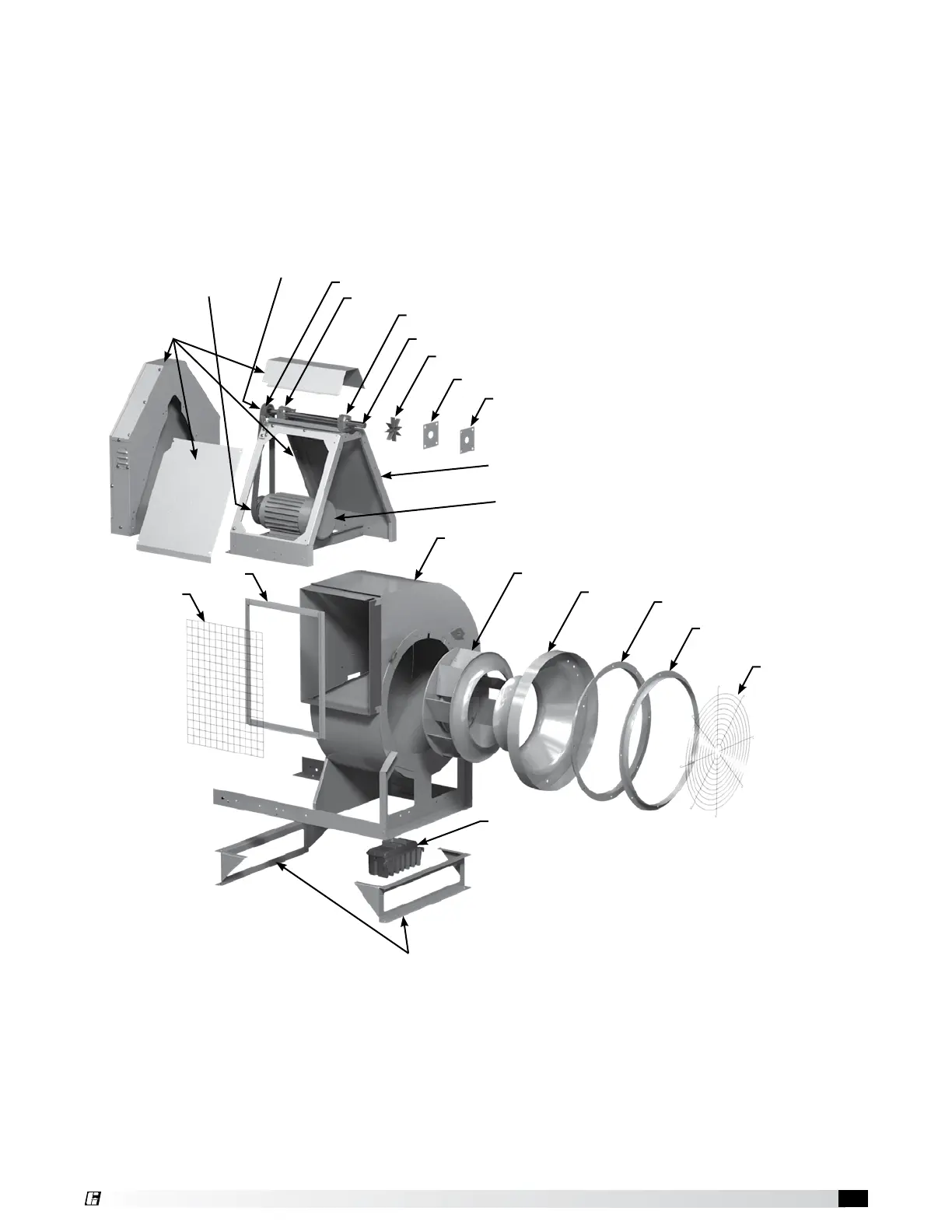

Components

Greenheck 100 Series Specifications

General

Fan Type	Centrifugal
Wheel Material	Steel
Housing Material	Steel
Drive Type	Direct Drive
Wheel Type	Forward Curved
Applications	air
