Greenheck FGR - Step 5 - Attach SIDE BIRDSCREEN ASSEMBLY TO HOOD SUPPORT ANGLE; Step 6 Install END BIRDSCREEN ASSEMBLY

Fabra Hood Gravity Ventilator 7
®
Step 5 – Attach SIDE BIRDSCREEN ASSEMBLY TO HOOD SUPPORT ANGLE
Attach the side bird screen assembly to the hood support angle and base assembly using four 1/4-20 x 1 inch
fasteners per screen assembly, see Figure 4.

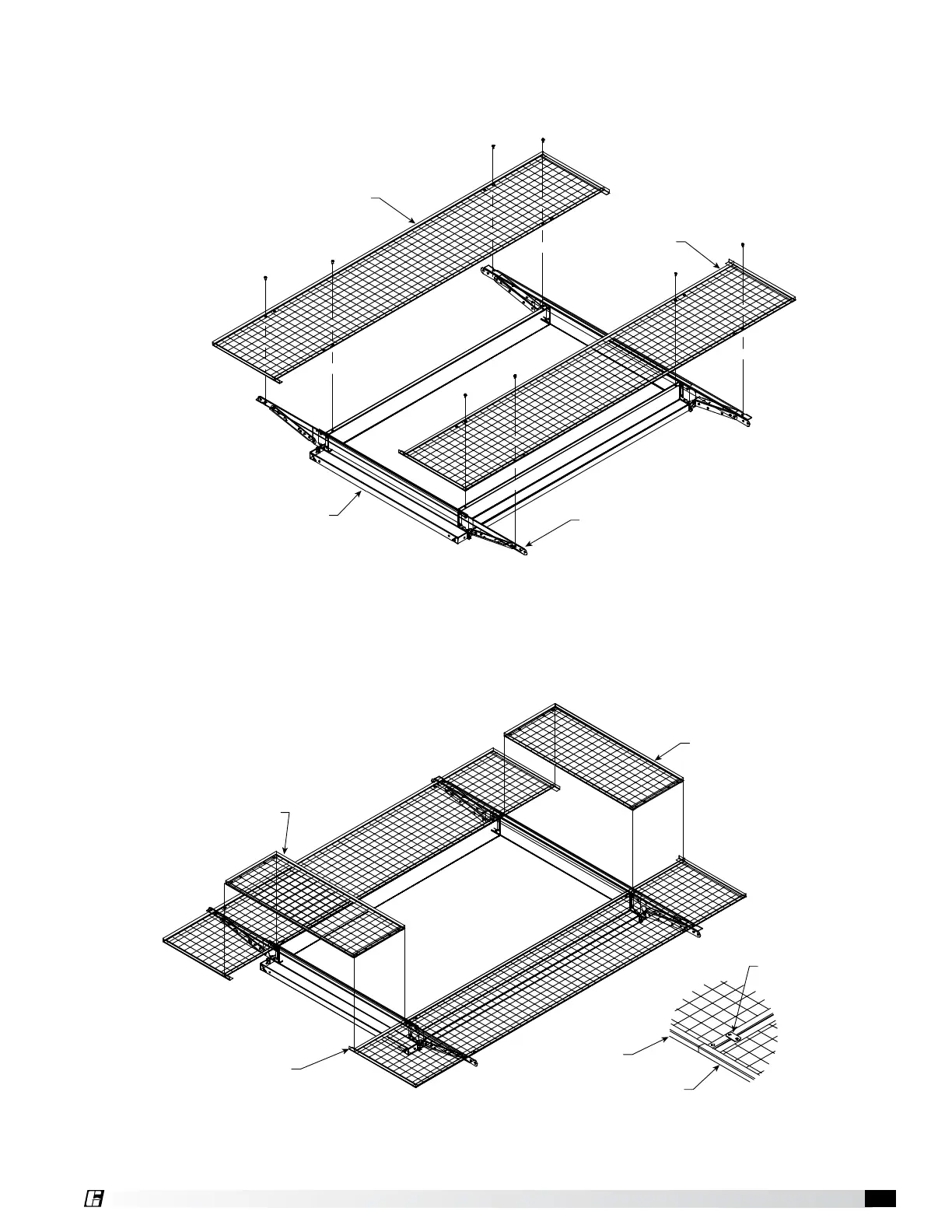

Figure 4 Fabra hood B #471321
SIDE BIRDSCREEN
ASSEMBLY
SIDE BIRDSCREEN
ASSEMBLY
BASE ASSEMBLY
HOOD SUPPORT
ANGLE
Step – 6 Install END BIRDSCREEN ASSEMBLY
Install the end birdscreen assembly, refer to Figure 5. Turn the birdscreen clips (which are pre-assembled to the end
birdscreen assembly) so that two are under the side birdscreen frame extension and the other two are under the
hood support angle. See Figure 5, Detail D.
NOTE: Loosen and tighten the birdscreen clip as necessary.
Figure 5 Fabra hood B #471321
END BIRDSCREEN
ASSEMBLY
END BIRDSCREEN
ASSEMBLY
SIDE BIRDSCREEN
FRAME EXTENSION
END BIRDSCREEN
ASSEMBLY
SIDE BIRDSCREEN
ASSEMBLY
BIRDSCREEN
CLIP
DETAIL D
VIEWED FROM UNDER SIDE
Figure 4
Figure 5
