Greenheck FJC Installation Guide

482904 • NOA Installation Guide, Rev. 1, September 2017 Copyright 2017 © Greenheck Fan Corporation2
®
Phone: 715.359.6171 • Fax: 715.355.2399 • Parts: 800.355.5354 • E-mail: gfcinfo@greenheck.com • Website: www.greenheck.com
Concrete Deck Anchoring
Use six
3
⁄8 inch (10 mm) diameter SS Kwik bolt TZ wedge
anchors, 316 stainless steel
Effective embedment depth: 2 inch (51 mm) (min.)
Install depth: 2.313 inch (59 mm) (min.)
Edge distance: 6 inch (152 mm) (min.)
Spacing: 4
1
⁄2 inch (114 mm) (min.)
Min. slap thick: 4 inch (102 mm) normal wt., cracked
Compressive strength: F’C=3000 PSI
Install per manufacturer’s instructions
Steel Deck Anchoring
Use six
5
⁄16 inch (8 mm) diameter SS self-drilling/self tapping
fasteners or thru bolts
300 Series S.S., condition CW,
FY = 65 KSI
0.105 inch (3 mm) thread engagement (min.)
Timber Anchoring
Use six
1
⁄2 inch (13 mm) diameter SS lag bolts
(FY=65 KSI)
Southern pine (G=0.55 min.)
Predrill as recommended
Penetration = 1.75 inch (45 mm)
1.50 inch (38 mm) of threads to be engaged into wood (min.)
Spacing: 3 inch (76 mm) (min.)
Edge distance: 1 inch (25 mm) (min.)
End distance: 6 inch (152 mm) (min.)

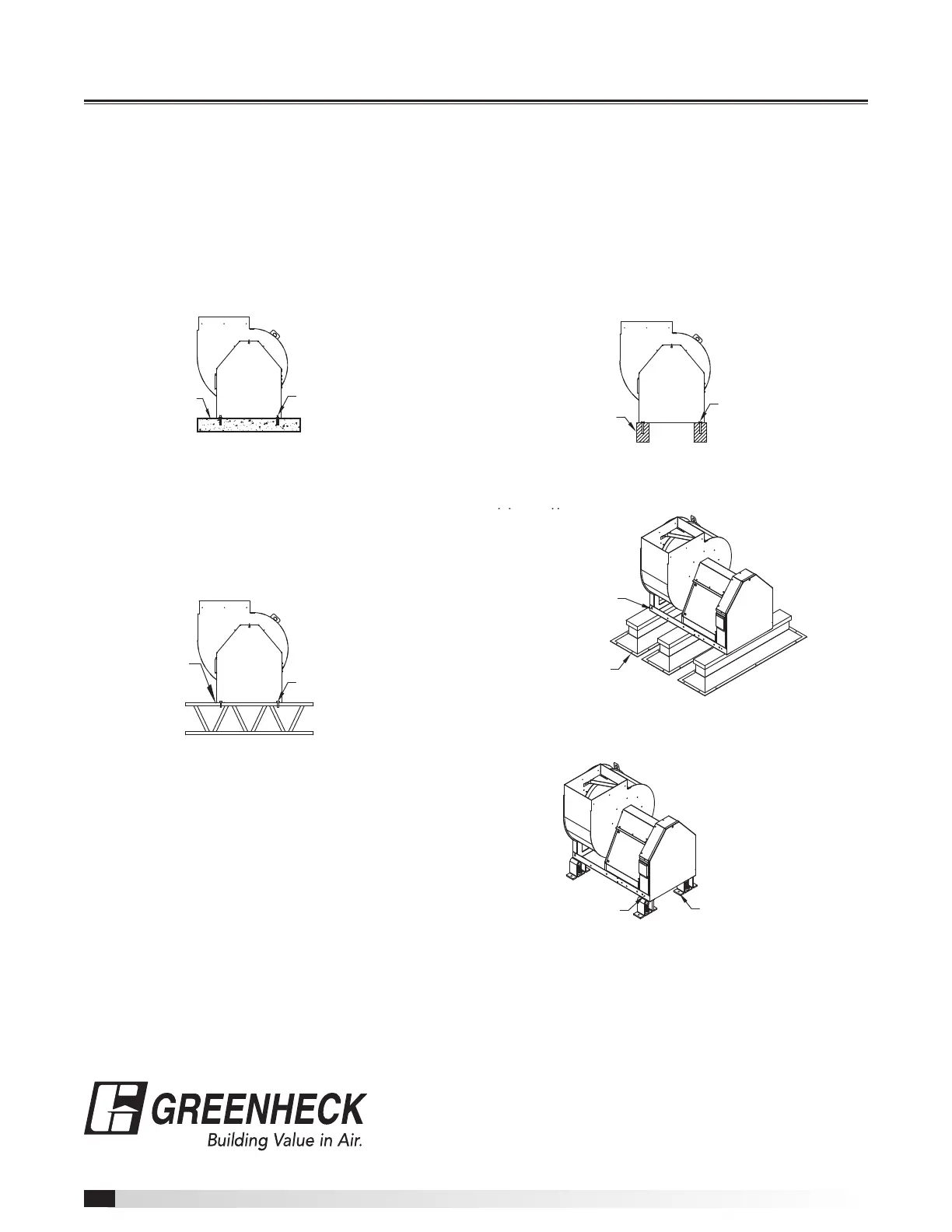

Installation methods for Greenheck USF-300 Series fans with NOA Certification per
NOA No. 17-0307.02
Concrete Deck Anchoring
Anchor
Equipment Supports
Use 1/2 inch diameter
316 SS lag bolts
(two per support)
Ten anchors per support
(wood, steel or concrete)
Isolator bolt 1/2-13
(4 places)
Two anchors per isolator
(wood, steel or concrete)
Direct Mount With Spring Isolators
Roof truss
1/8 inch thread or
12 ga. min.
Lag bolt
Fastener
Steel Deck Anchoring
Timber Anchoring
Wood timber
Min. 4 inch (101.6 mm)
nominal thickness
Concrete
Concrete Deck Anchoring
Anchor
Equipment Supports
Use 1/2 inch diameter
316 SS lag bolts
(two per support)
Ten anchors per support
(wood, steel or concrete)
Isolator bolt 1/2-13
(4 places)
Two anchors per isolator
(wood, steel or concrete)
Direct Mount With Spring Isolators
Roof truss
1/8 inch thread or
12 ga. min.
Lag bolt
Fastener
Steel Deck Anchoring
Timber Anchoring
Wood timber
Min. 4 inch (101.6 mm)
nominal thickness
Concrete
Concrete Deck Anchoring
Anchor
Equipment Supports
Use 1/2 inch diameter
316 SS lag bolts
(two per support)
Ten anchors per support
(wood, steel or concrete)
Isolator bolt 1/2-13
(4 places)
Two anchors per isolator
(wood, steel or concrete)
Direct Mount With Spring Isolators
Roof truss
1/8 inch thread or
12 ga. min.
Lag bolt
Fastener
Steel Deck Anchoring
Timber Anchoring
Wood timber
Min. 4 inch (101.6 mm)
nominal thickness
Concrete
Concrete Deck Anchoring
Anchor
Equipment Supports
Use 1/2 inch diameter
316 SS lag bolts
(two per support)
Ten anchors per support
(wood, steel or concrete)
Isolator bolt 1/2-13
(4 places)
Two anchors per isolator
(wood, steel or concrete)
Direct Mount With Spring Isolators
Roof truss
1/8 inch thread or
12 ga. min.
Lag bolt
Fastener
Steel Deck Anchoring
Timber Anchoring
Wood timber
Min. 4 inch (101.6 mm)
nominal thickness
Concrete
Equipment Supports
Direct Mount with Spring Isolators
Concrete Deck Anchoring
Anchor
Equipment Supports
Use 1/2 inch diameter
316 SS lag bolts
(two per support)
Ten anchors per support
(wood, steel or concrete)
Isolator bolt 1/2-13
(4 places)
Two anchors per isolator
(wood, steel or concrete)
Direct Mount With Spring Isolators
Roof truss
1/8 inch thread or
12 ga. min.
Lag bolt
Fastener
Steel Deck Anchoring
Timber Anchoring
Wood timber
Min. 4 inch (101.6 mm)
nominal thickness
Concrete
