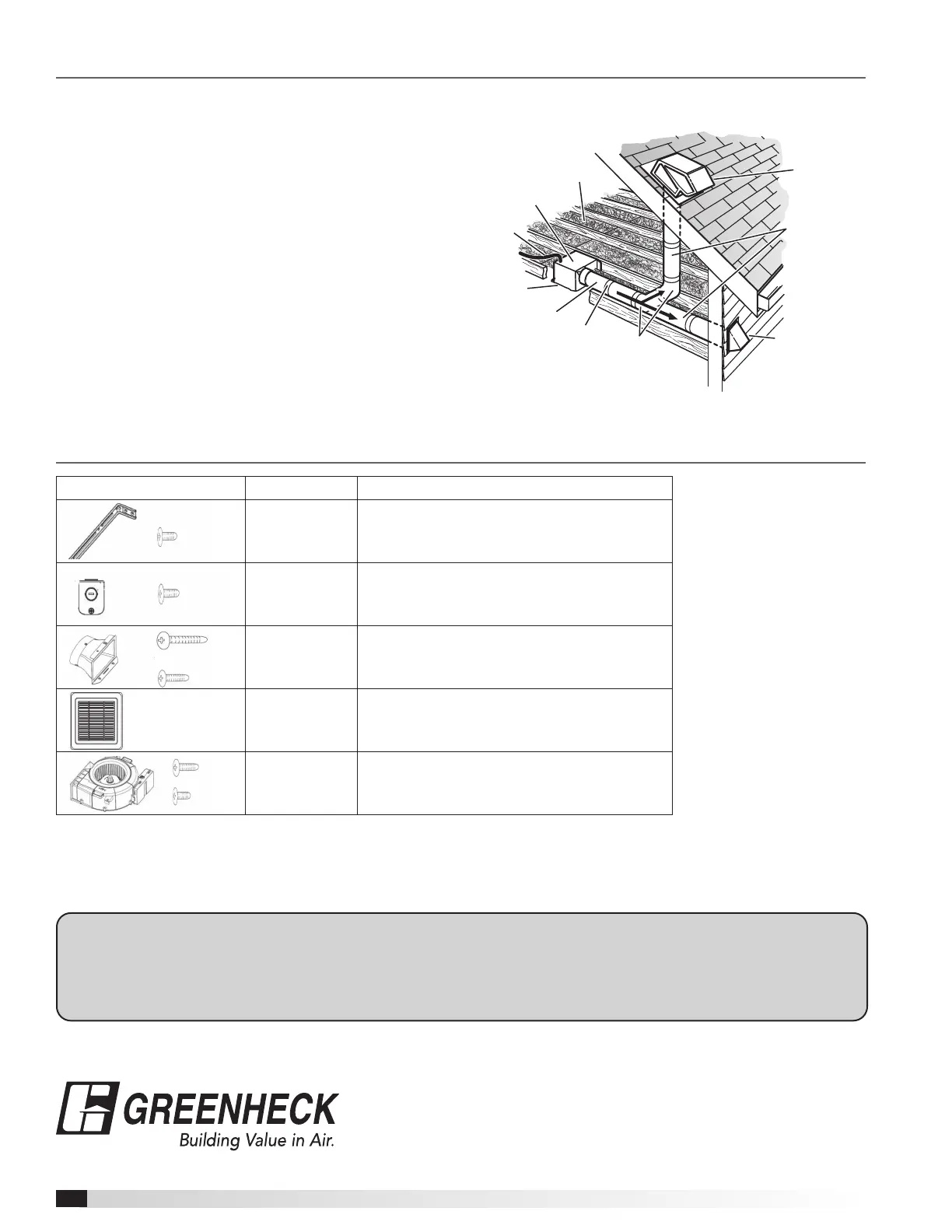

Typical Installation
The ducting from this fan to the outside of the building has a strong effect on the airflow, noise and energy use of
the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with
smaller ducts than recommended. Insulation around
the ducts can reduce energy loss and inhibit mold
growth. Fans installed with existing ducts may not
achieve their rated airflow.
Rigid metal duct is recommended for optimal fan
performance.
Ensure duct joints and exterior penetrations are
sealed with caulk or other similar material to create
an air-tight path and to minimize building heat loss
and gain and reduce the potential for condensation.
Place/wrap insulation around duct and/or fan to in
order to minimize possible condensation buildup
within the duct, as well as minimize building heat
loss and gain.
rchase separately.
ATION*
round and over Fan Housing.)
ROOF CAP*
FAN HOUSING
ROUND DUCT*
ROUND
ELBOWS*
Seal gaps
around Housing.
Seal duct joints
with tape.
OR
Keep duct
runs short.
WALL CAP*
(with built-in damper)
Replacement Parts List
Part Part Number Description
485154 Mounting Bracket with two (2) screws
S4X6
484917 Knockout plate and one (1) screw
S4X6
485153 Duct Adapter with six (6) screws
S4X30 5pcs • S4X12 1pc
485152 Grille with spring clips
485151 Power Pack Assembly – includes motor,
control board, blower, wheel, and three
(3) screws. S4X8 2pcs • S4X6 1pc
