Ceiling Exhaust Fans6

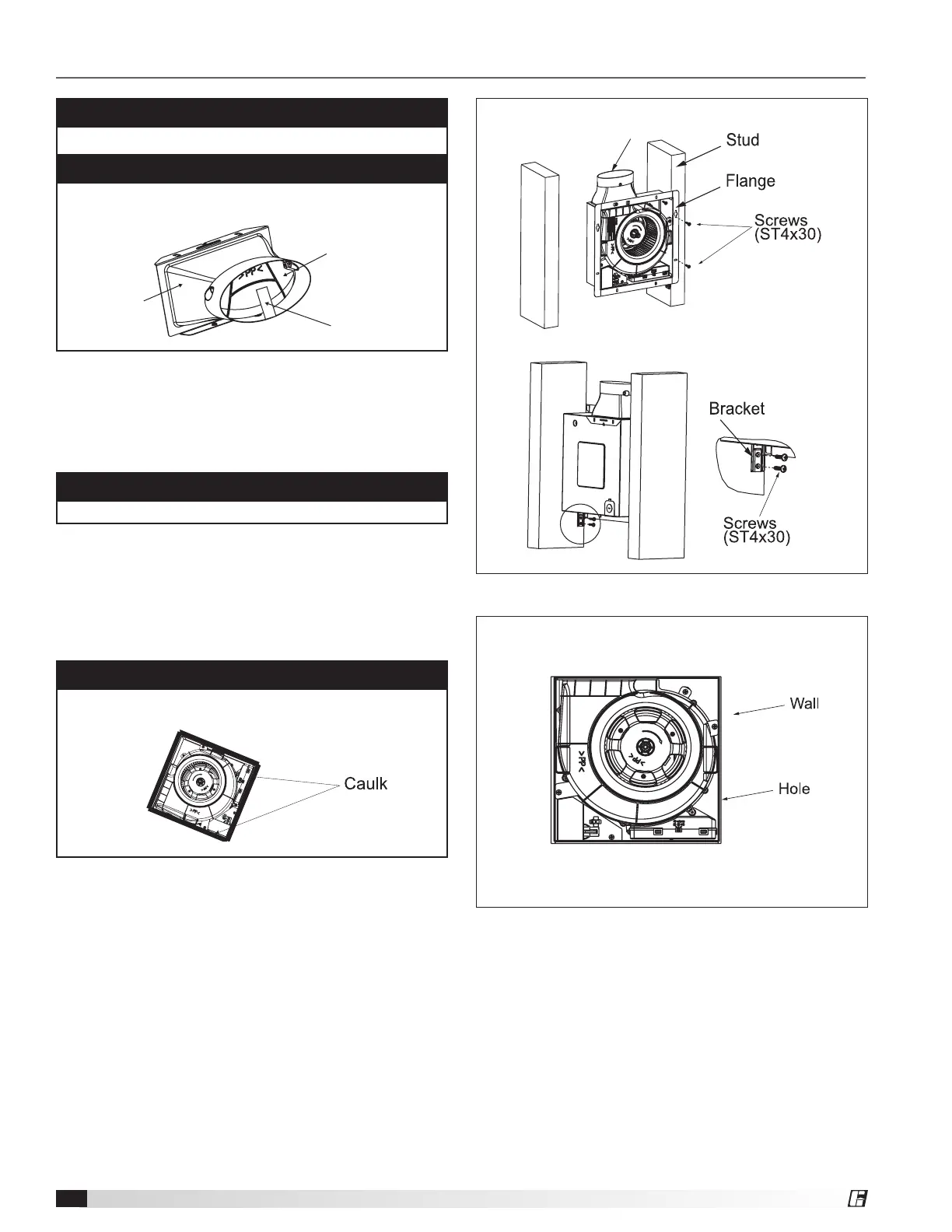

Installation for Wall Mounting
1. Position fan housing between the studs with
discharge pointing up. Fasten housing to stud using
two screws (ST4X30) through the housing flange, and
fasten mounting bracket to stud using two screws
(ST4X30). See Fig. 9.
ATTENTION
Please wear gloves during the installation work.
IMPORTANT
Remove the tape from damper and duct adapter
before installation. As shown below:
ATTENTION
The duct adapter of product must be installed upward.
2. Complete the wiring and duct work, please refer to
steps 2 and 3 of Joist Mounting Installation (page 4)
to complete the adapter installation.
3. Finish the wall work. Wall hole should be aligned with
the inside edge of the flange. See Fig. 10.
IMPORTANT
After finishing installation, fill gap between flange
and wall with caulk or other sealant to prevent
air leakage.
4. Install the grille, please refer to steps 5 and 6 of joist
mounting installation (page 5).
Duct
Adapter
Tape
Damper
Fig. 9
Fig. 10
