Ceiling Exhaust Fans2
®
Supplied Accessories
SP-AP0511W (shown with optional
sensorinsert)
SP-AP0511WL (shown with light)
or
Grille (Qty. 1)
Lighted Motion and/or
Night Light
Standard
Suspension Bracket
Assembly (Qty. 1)
Screw (ST4X30)
(Qty. 5)
or

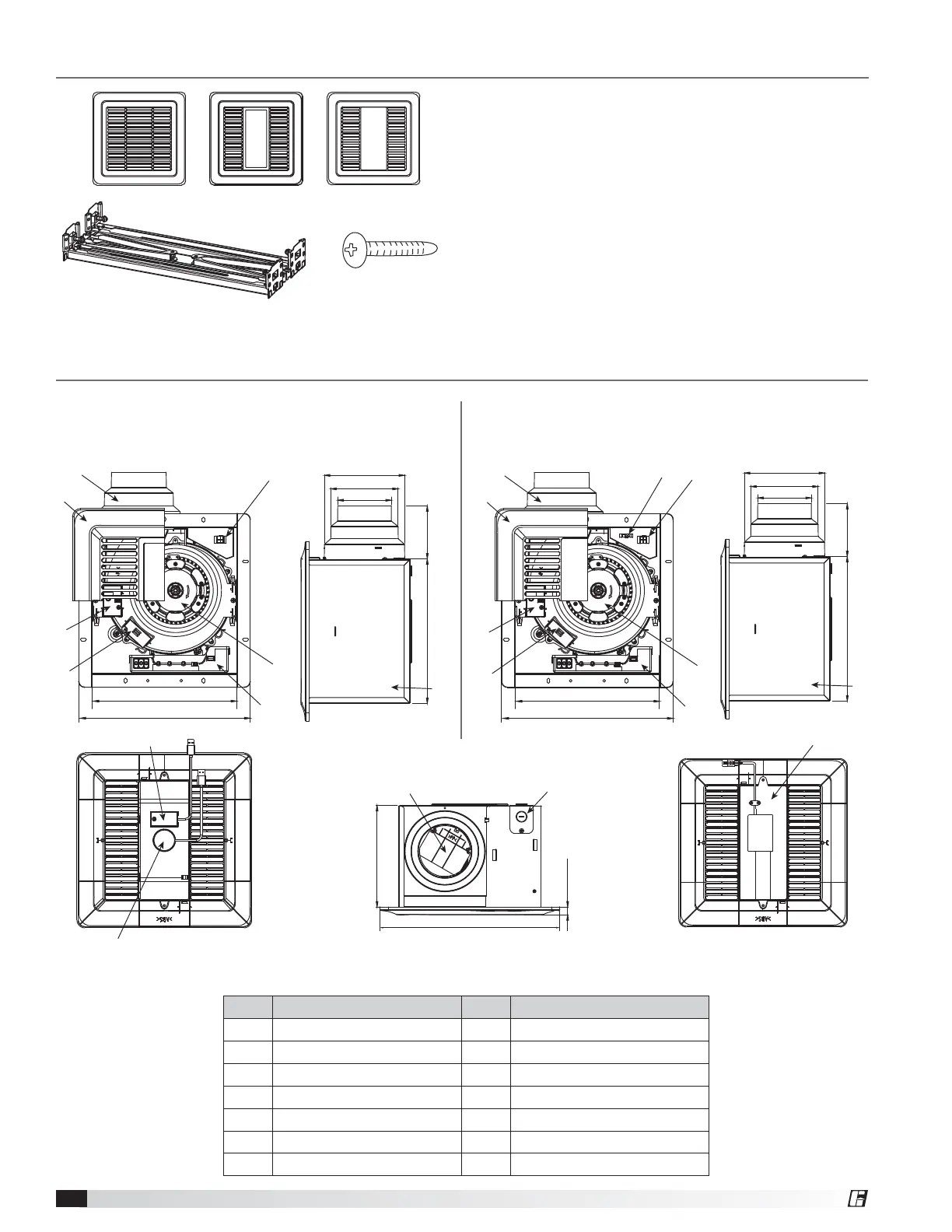

Dimensional Data
No. Description No. Description
1 Wheel 8 Control box
2 Grille 9 Humidity sensor module
3 Duct adaptor 10 CO
2
sensor module
4 Damper 11 Night light module
5 Housing 12 Motion sensor module
6 Knockout plate 13 LED light (includes night light)
7 Junction box 14 LED light receptacle
Unit dimensions are inches (mm)
10 1/4 (260)
12 1/8 (308)
2
9
10
8
5
1
3
7
3 7/8 (98)
4 7/8 (123)
5 3/4 (147)
3 3/4 (97)10 3/8 (265)
13
7 3/8 (186)
5/8 (14.5)
4
6
13 (330)
5
2
9
10
8
1
3
7
14
3 7/8 (98)
4 7/8 (123)
5 3/4 (147)
3 3/4 (97)10 3/8 (265)
10 1/4 (260)
12 1/8 (308)
11
12
