Ceiling Exhaust Fans 7
®
CAUTION
Mount carefully so that light wiring is not pinched.
inches (mm)
Ceiling
Caulk
10-3/8 (265)
10-3/8 (265)
IMPORTANT
After finishing the ceiling
work, fill gap between
flange and ceiling with
caulk or other sealant
to prevent airleakage.
Grille
Ceiling
Slot
Mounting
Spring
Fig. 9
Fig. 10
Fig. 11
Fig. 8
Caulk
a. Insert the grille mounting spring on the wiring side
into the slot. See Fig. 10
b. Insert the plug into the receptacle in the housing
and insert the other mounting spring into the slot as
shown and mount grille to fan body.
See Fig. 10 and Fig. 11
10. For model SP-AP0511WL, with light
CAUTION
• Before turning on the light, make sure the plug is
fully engaged.

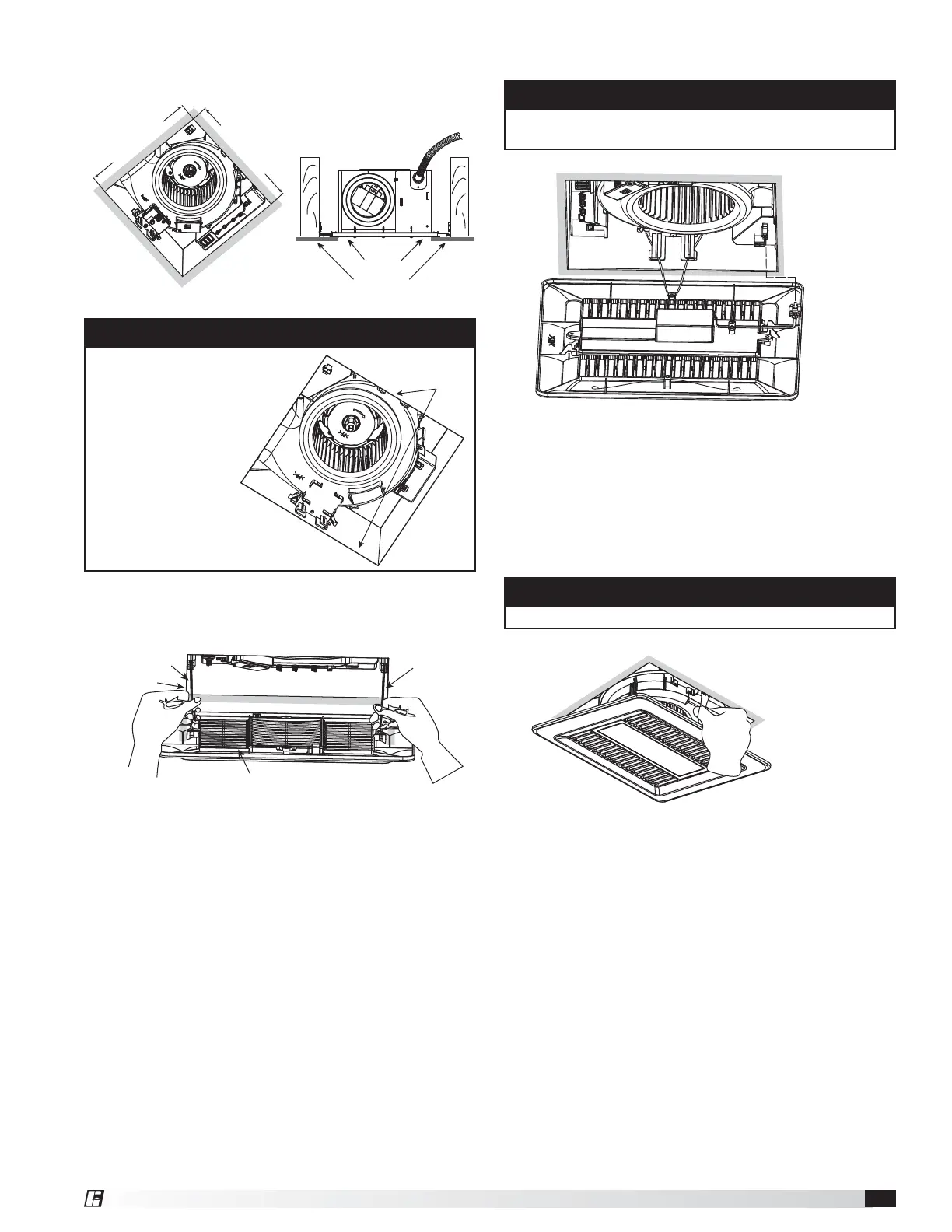

9. Insert mounting springs into slots and mount grille to
fan body. See Fig. 9
8. Finish ceiling work. Ceiling hole to be aligned with
the inside edges of the flange. See Fig. 8
To Next Page
