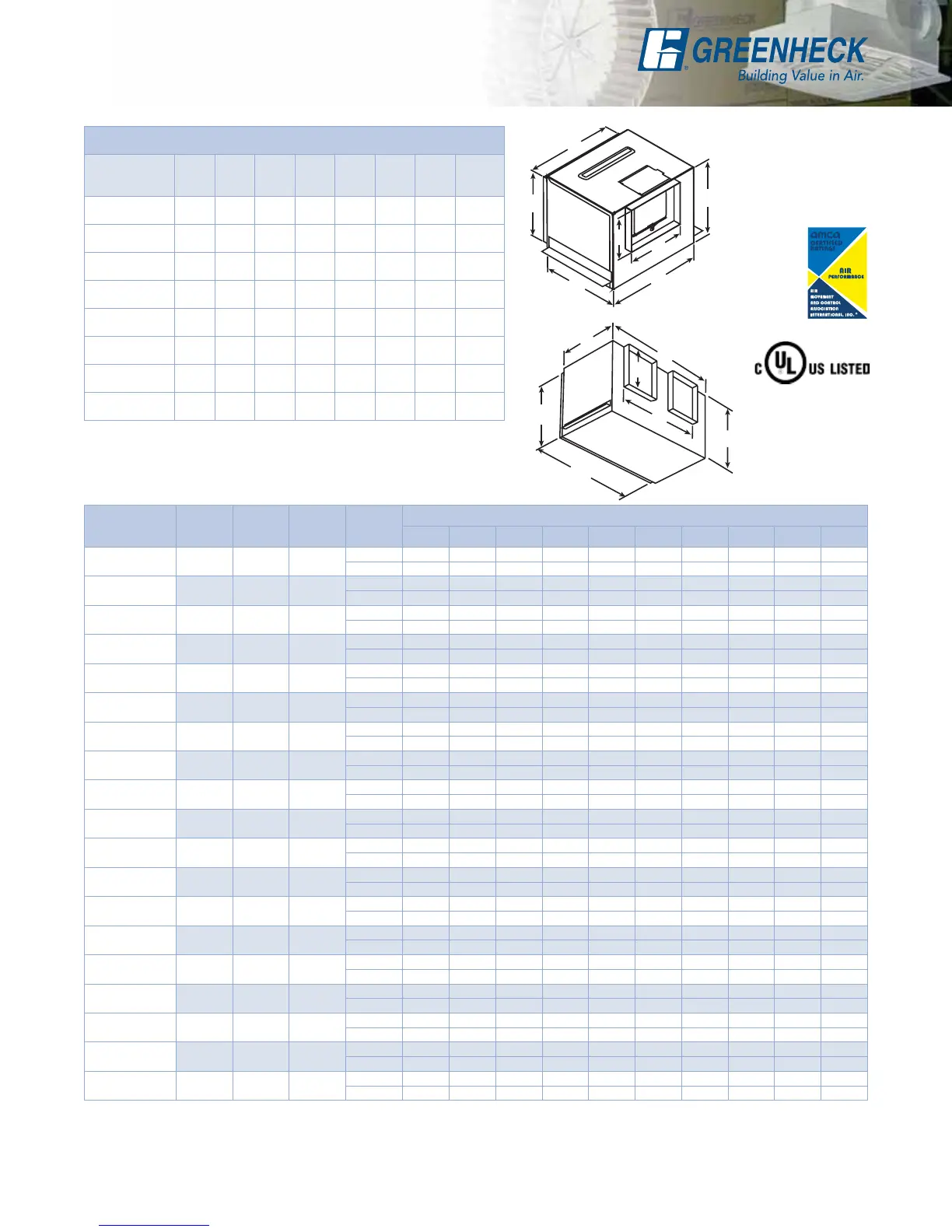

Model CSP-A
Premium Inline Fan
Model CSP-A Dimensions
Model A B C D E F G
Unit
Weight
110, 125, 190
13
1
⁄4
(337)
10
5
⁄8
(270)
9
(229)
8
(203)
6
(152)
12
(305)
9
1
⁄4
(235)
16
(7)
200, 250, 290,
390
14
(356)
11
7
⁄8
(302)
11
1
⁄4
(286)
8
(203)
8
(203)
12
7
⁄8
(327)
10
(254)
23
(10)
410, 510
18
(457)
14
3
⁄8
(365)
14
1
⁄2
(368)
8
(203)
8
(203)
16
7
⁄8
(429)
13
1
⁄4
(337)
36
(16)
700
23
5
⁄8
(600)
11
5
⁄8
(295)
11
5
⁄8
(295)
19
1
⁄2
(495)
8
(203)
22
5
⁄8
(575)
10
1
⁄2
(267)
34
(15)
710, 780
18
(457)
14
3
⁄8
(365)
14
1
⁄2
(368)
10
(254)
8
(203)
16
7
⁄8
(429)
13
1
⁄4
(337)
36
(16)
900, 1050,
1410, 1550
23
3
⁄4
(603)
14
3
⁄8
(365)
14
1
⁄2
(368)
18
3
⁄4
(476)
8
(203)
22
5
⁄8
(575)
13
1
⁄4
(337)
59
(27)
1750, 2150
35
(889)
14
3
⁄4
(375)
14
3
⁄4
(375)
28
(711)
6
(152)
32
3
⁄4
(832)
13
(330)
68
(31)
3600
45
1
⁄2
(1156)
16
1
⁄2
(419)
16
1
⁄2
(419)
40
(1016)
11
(279)
43
1
⁄4
(1099)
14
5
⁄8
(371)
122
(55)
All dimensions are in inches (millimeters) and weight in pounds (kilograms). Inlet and outlet
connection widths are 1 in. (25 mm) - Mounting bracket width is 1½ in. (38 mm). For
complete dimensional information, see CAPS submittal drawings.
A
E
D
C
B
F
G
A
B
C
D
E
F
Inlet
G
Model RPM Amps* Watts
CFM / Static Pressure in Inches wg
0 0.1 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1
CSP-A110
4
950 0.62 48.7
CFM 124 112 110 102 77
Sones 0.8 0.8 0.8 0.9 0.9
CSP-A125
6
1100 0.63 52.5
CFM 138 126 124 114 91
Sones 1.1 1.1 1.1 1.0 1.2
CSP-A190
4, 6
1400 1.10 100
CFM 215 202 198 180 159 121
Sones 2.0 1.5 2.0 2.0 2.5 2.5
CSP-A200 900 0.43 48.2
CFM 254 231 226 203 178 145 109 70
Sones 0.6 0.4 0.5 0.9 1.0 1.3 1.5 1.5
CSP-A250 1000 0.79 82.7
CFM 266 246 241 221 205 187 165 132
Sones 0.9 1.0 1.0 2.0 2.5 3.0 2.5 2.5
CSP-A290 1050 0.71 80.7
CFM 318 299 292 265 248 229 201 144
Sones 1.1 1.2 1.3 2.0 2.5 3.5 3.0 3.0
CSP-A390
4
1350 1.33 140
CFM 412 400 397 382 363 339 324 309
Sones 2.0 2.0 2.0 2.5 3.0 4.0 4.5 4.5
CSP-A410 1000 1.87 135
CFM 447 441 403 364 317 217
Sones 1.5 1.5 1.5 2.0 2.0 2.0
CSP-A510 1070 3.11 217
CFM 545 514 506 464 405 324
Sones 2.5 2.0 2.0 2.0 2.0 2.5
CSP-A700 1100 3.20 350
CFM 766 755 752 739 726 702 678 635 549 418
Sones 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.5 2.5 4.0
CSP-A710 1080 4.40 325
CFM 737 698 688 635 567 475 334
Sones 2.5 2.5 2.5 2.5 2.0 2.0 2.0
CSP-A780
4
1600 3.77 405
CFM 813 784 777 742 707 672 638 603 567 527
Sones 3.0 3.0 3.0 3.0 3.0 2.0 3.0 3.0 3.0 3.5
CSP-A900 950 4.87 328
CFM 908 852 841 782 715 631
Sones 1.4 1.4 1.4 2.0 2.5 3.0
CSP-A1050
4
1095 6.65 455
CFM 1182 1110 1093 1013 922 832 743
Sones 2.5 2.5 2.5 2.5 2.5 2.5 2.5
CSP-A1410 1450 7.80 822
CFM 1584 1543 1533 1483 1439 1395 1345 1293 1238 1181
Sones 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 4.0 4.0
CSP-A1550
4
1610 8.32 830
CFM 1672 1618 1604 1543 1484 1427 1367 1307 1240 1172
Sones 5.0 4.5 4.5 4.5 4.5 4.0 4.0 4.5 4.5 4.5
CSP-A1750 1130 6.60 550
CFM 1842 1768 1749 1619 1464 1284 1032 772 484
Sones 5.0 5.0 5.0 4.5 4.0 4.0 3.5 3.0 3.0
CSP-A2150 1100 7.80 735
CFM 2249 2175 2156 2044 1900 1701 1424 1114
Sones 5.0 4.5 4.5 4.0 4.0 4.0 3.0 3.0
CSP-A3600 1100 7.10 1330
CFM 3778 3653 3622 3460 3280 3091 2844 2551 2232 1750
Sones 5.0 5.0 5.0 5.0 4.5 4.0 4.0 4.0 3.5 3.5
4 Units also available with 50 Hz motors (See page 21 for performance) 6 Available with 277 volt motor.
Performance certified is for model CSP inline for installation type D: Ducted inlet, Ducted outlet. Performance ratings include the effects of a backdraft damper. Speed
(rpm) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in spherical fan sones at 5 ft (1.5m) in a spherical
free field calculated per Annex B of AMCA 311. Values shown are for installation type D: ducted inlet spherical fan sone levels. Ratings do not include the effect of duct
end correction. Ratings are based on 10 ft of insulated duct. The AMCA Certified Ratings Seal applies to air performance ratings only.
*Note: Amp draw is approximate and may vary based on motor manufacturer.
CSP-110-510
CSP-700-3600
