Greenheck SQ Quick Start Guide

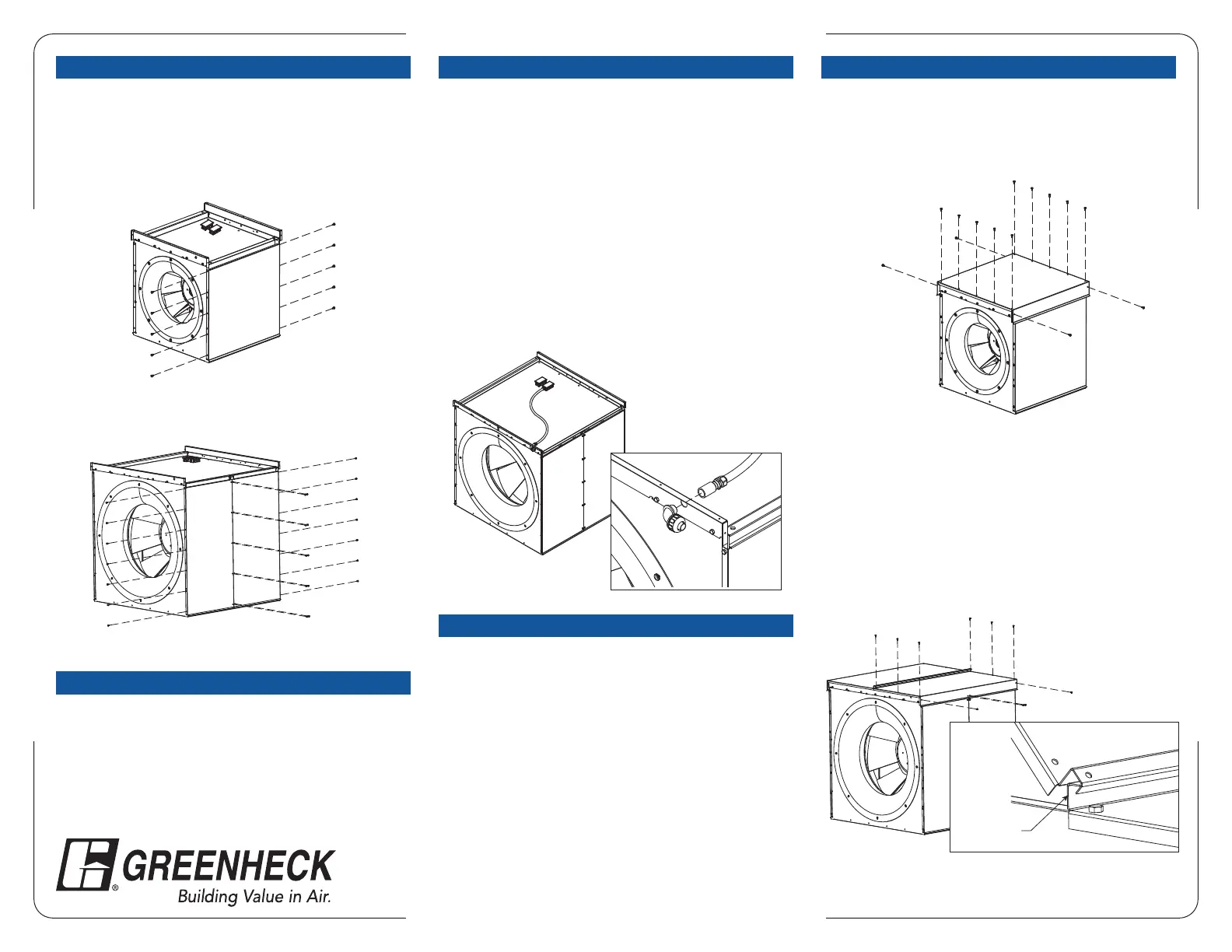

Step 5
Install Side Panels
• Install one side of outdoor cover to fan with drip
edge down, use provided self-tapping sheet
metal screws and 5/16 inch impact driver
• Repeat for opposite side
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE
• Sizes 18-33 have (2) panels per side, they are
fastened to the mullion, inlet, and outlet plate
Step 6
Mount Disconnect Switch (if applicable)
• Determine ideal location for disconnect switch
• Install per disconnect manufacturer’s guidelines
Step 7
Install Conduit
• Connect the provided flexible metal conduit
(FMC) and fitting assembly to the junction box
with power
• Route opposite end of conduit assembly (with
female connector) to hole in end cap.
• Insert liquid-tight connector into hole in end cap
and screw into the female connector, as
shown below
• Cut liquid-tight conduit (supplied by others)
to length and install from elbow to disconnect
switch or power supply
Step 8
Route Wiring to Junction Box
• Route wiring from junction box on top of fan to
switch through all conduit and fittings
• Connect wiring to motor leads in junction box on
top of the fan, replace the junction box cover
• Connect wiring to disconnect or power supply
• Junction boxes (and “Dial on Fan” if Vari-Green
®
)
on top of the fan are inaccessible when outdoor
cover is fully installed
Step 9
Install Top Panel(s)
• Size 7-16
Install top panel of outdoor cover to fan using
provided self-tapping sheet metal screws
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE
• Sizes 18-33
1. Install the first top panel with single return
flange using provided self-tapping sheet
metal screws (reference 1 below)
2. Install the second top panel with double
return flange by hinging it around the first
panel as shown (reference 2 below)
3. Use self-tapping sheet metal screws to
mount second panel, filling all holes
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE
• TAKE CARE NOT TO DAMAGE THE FOAM
TAPE ON THESE PARTS
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE
485552 • Outdoor Cover, Rev. 1, June 2022 • Copyright © 2022 Greenheck Fan Corp.
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE

Greenheck SQ Specifications

General

Model	SQ
Motor Type	TEFC (Totally Enclosed Fan Cooled)
Drive Type	Direct Drive
Housing Material	Galvanized Steel
Wheel Type	Backward Inclined
Voltage Options	115/230V, 208-230/460V, 575V
Temperature Range	-40°F to 250°F
