Greenheck SQ - Outdoor Cover Panel and Wiring; Side Panel and Top Panel Installation; Disconnect Switch and Conduit;Wiring

Square Inline Mixed Flow Fans8
®

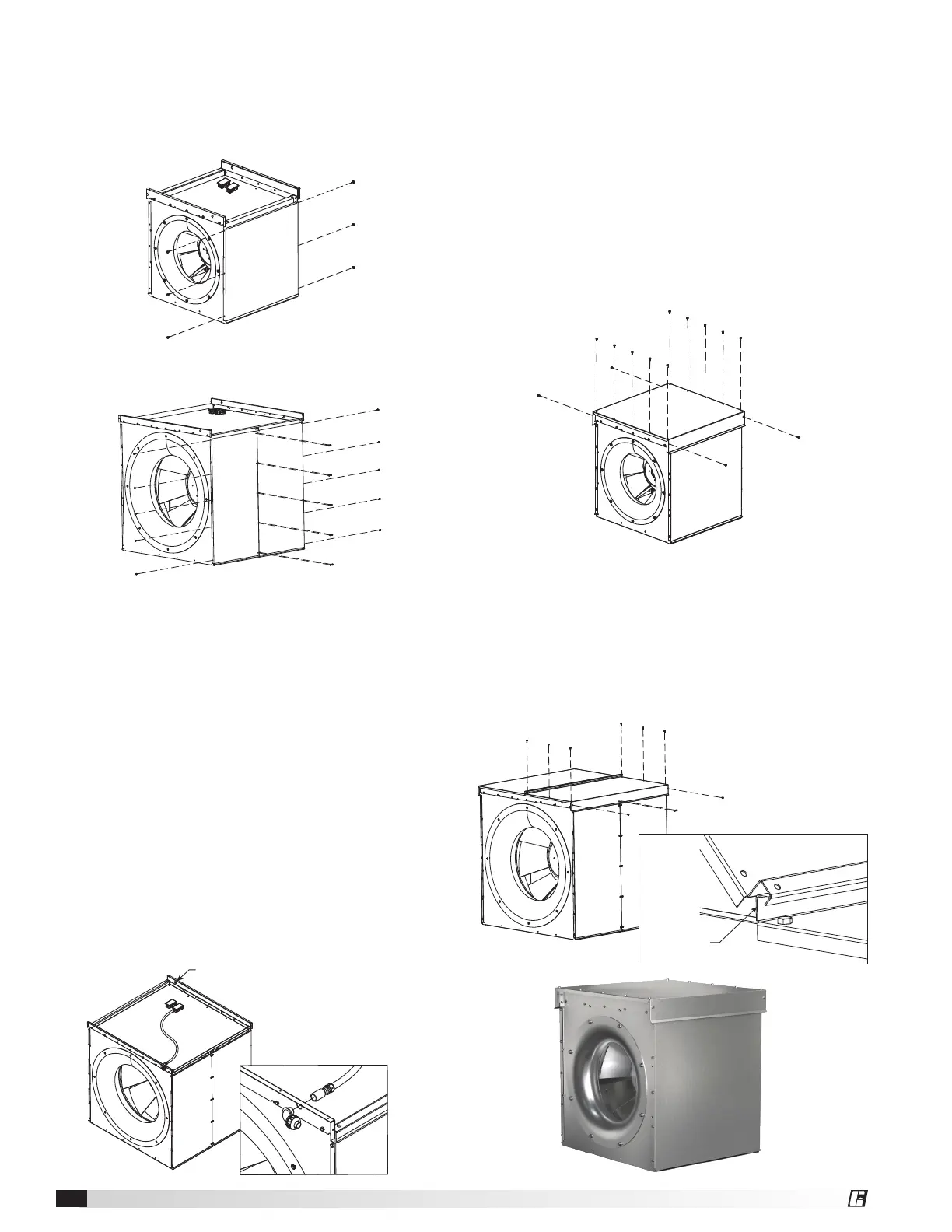

STEP 5 - Install Side Panels
1. Install one side of outdoor cover to fan with drip
edge down, use provided self-tapping sheet metal
screws and 5/16 inch impact driver.
2. Repeat for opposite side.
SIZE 7-24
SIZE 27-33
Plug unused
end cap hole
3. Sizes 27-33 have (2) panels per side, they are
fastened to the mullion, inlet, and outlet plate.
SIZE 7-24
SIZE 27-33
Plug unused
end cap hole
STEP 6 - Mount Disconnect Switch (if applicable)
1. Determine ideal location for disconnect switch.
2. Install per disconnect manufacturer’s guidelines.
STEP 7 - Install Conduit
1. Connect the provided flexible metal conduit (FMC)
and fitting assembly to the junction box with power.
2. Route opposite end of conduit assembly (with female
connector) to hole in end cap.
3. Insert liquid-tight connector into hole in end cap and
screw into the female connector, as shown below.
4. Cut liquid-tight conduit (supplied by others) to length
and install from elbow to disconnect switch or power
supply.
STEP 8 - Route Wiring to Junction Box
1. Route wiring from junction box on top of fan to
switch through all conduit and fittings.
SIZE 7-24
SIZE 27-33
Plug unused
end cap hole
2. Connect wiring to motor leads in junction box on top
of the fan, replace the junction box cover.
3. Connect wiring to disconnect or power supply
4. Junction boxes (and “Dial on Fan” if Vari-Green
®
) on
top of the fan are inaccessible when outdoor cover is
fully installed.
STEP 9 - Install Top Panel(s)
IMPORTANT: Take care not to damage the foam tape
on these parts.
Size 7-24:
1. Install top panel of outdoor cover to fan using
provided self-tapping sheet metal screws.
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
FOAM TAPE
Sizes 27-33:
1. Install the first top panel with single return flange
using provided self-tapping sheet metal screws
(reference 1 below).
2. Install the second top panel with double return
flange by hinging it around the first panel as shown
(reference 2 below).
3. Use self-tapping sheet metal screws to mount
second panel, filling all holes.
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
FOAM TAPE
TOP
BOTTOM
1
2
SIZE 7-16
SIZE 18-33
SIZE 7-16
SIZE 18-33
FOAM TAPE
