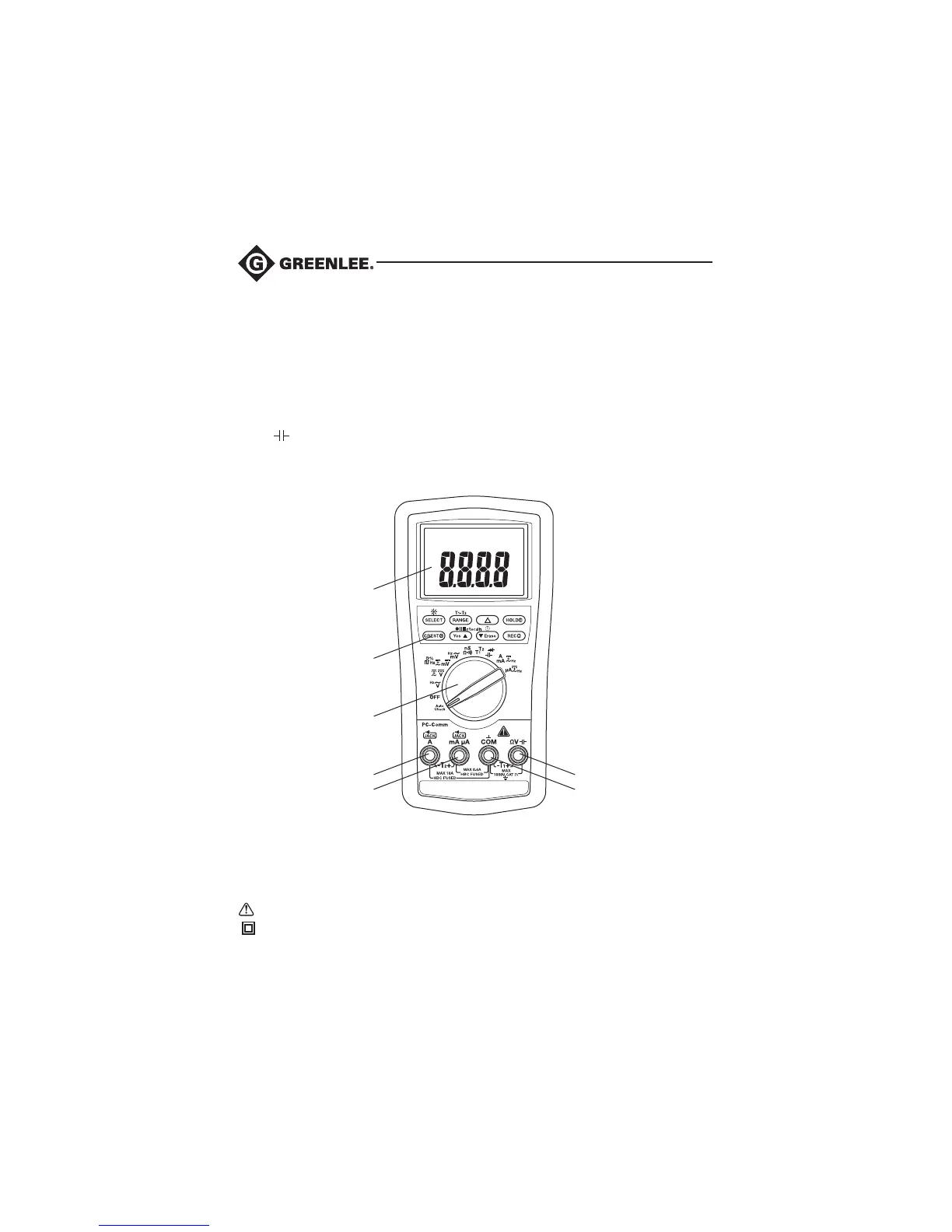

Identification
1. Display LCD and bar graph
2. Feature Buttons Refer to explanations under “Using the Features”
3. Selector Selects a function or turns power OFF
4. A Positive input terminal for high current measurements
5. mA µA Positive input terminal for low current measurements
6. COM Negative, common, or ground input terminal for all measurements
7. ΩV Positive input terminal for all measurements except current and
temperature measurement T2
5
3
2
1
4
6
7
Symbols on the Unit
Warning—Read the instruction manual
Double insulation
