Your rear deraileur should be in place on the frame so all you
need to do is tighten the cable clasp on the deraileur with
a 5mm Allen Key (fig 12a).
Check the outer casing is sitting propperly in the shifter and
derailleur adjuster and the shifter is in the forward postion and
pull the inner cable tight.
Your front derailleur is similar but the cable has been removed.
Put the outer cable into all the stops, move lever forward and
then clamp the cable in position in the front deraileur (fig 12b).

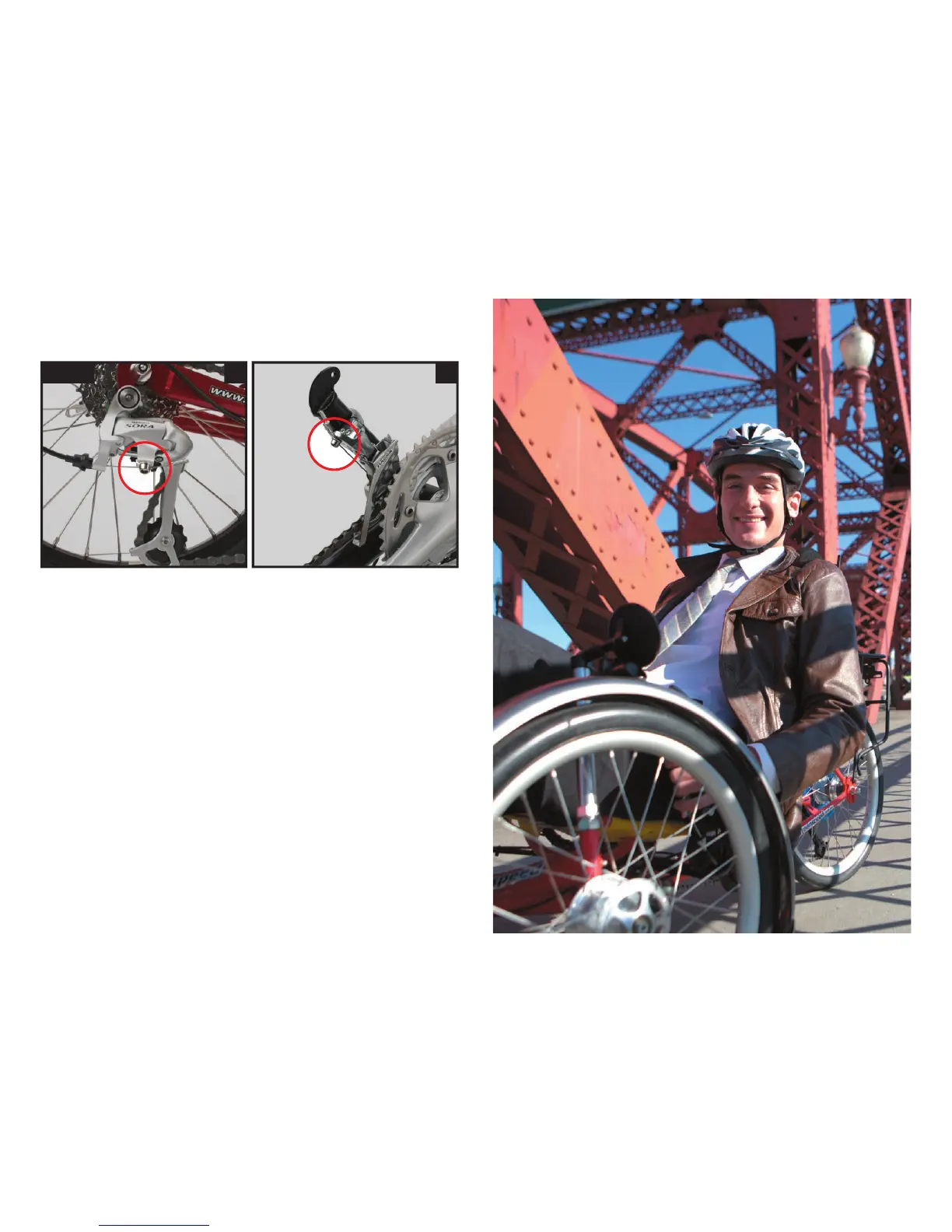

fig 12 a b
check derailleur cables
10
