Your trike’s main feature is its ability to be folded / assembled
with the minimum of tools / effort. Here are the tools required
to build your trike, but there after the quick fold will only require
the 6mm Allen key.
(drum brake
only)
(hollow axle
hubs only)
fig 1

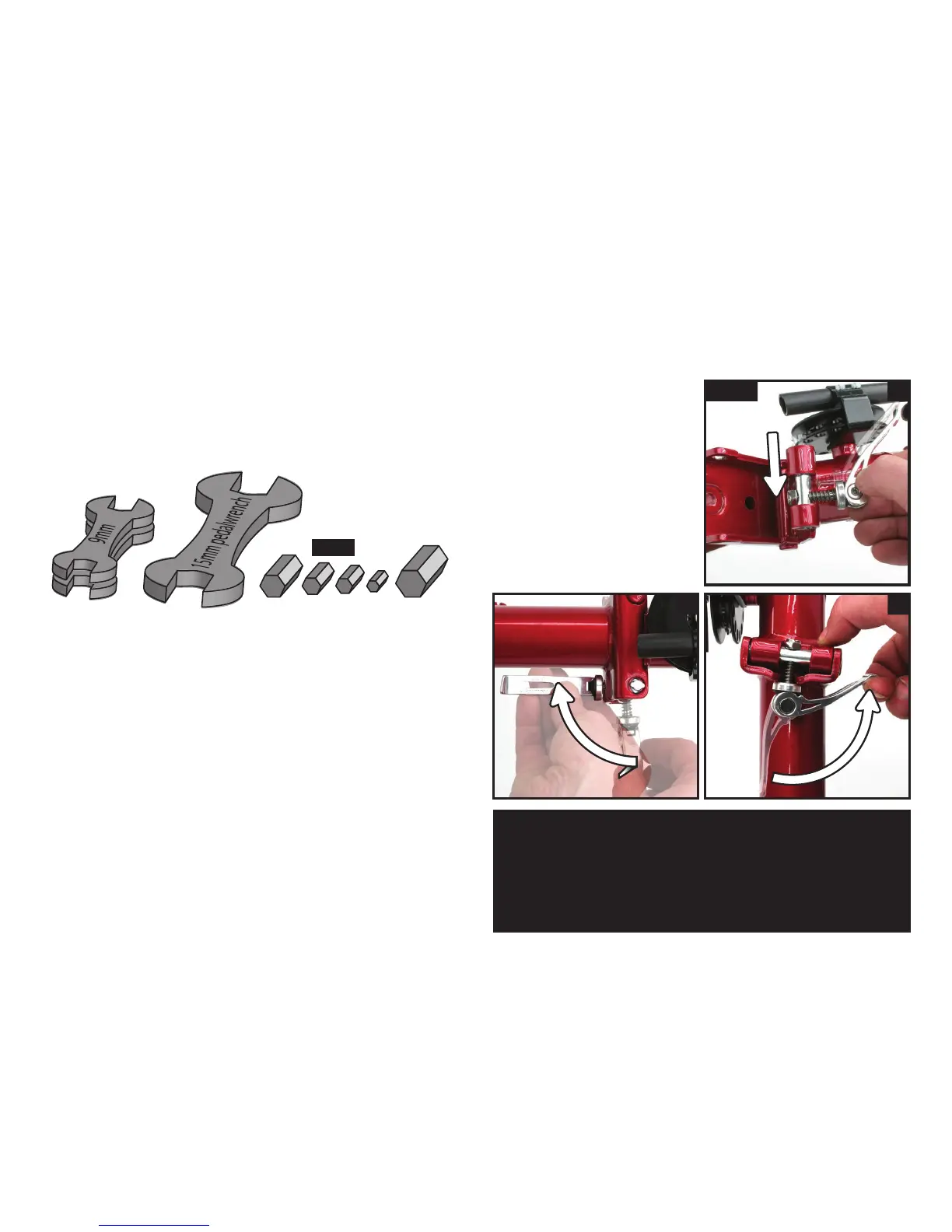

The frame is now ready to unfold. Start by holding the back
section and lifting it away from the frame and straightening the
frame out. Note the pin needs
to be slid to the left to allow
the frame to unfold all the way
(fig 2a). Once it has been
unfolded all the way, you rotate
the Quick Release downward so
the keyway is lined up, push it
through, pull the quick release
twowards the back of the frame
(fig 2b). Once the quick release
in it’s slot you can tighten it up
(fig 2c).
Important. If you are unfamiliar with a quick release
mechanism, PLEASE get a Greenspeed Dealer or bike mechanic
show you the finer points of safe use. The quick release on
the frame is slightly different to a wheel quick release in that
it requires a 10mm wrench to add tightness to it should the
adjustment loosen off with time/wear. Please keep it tight
enough that you can release/tighten with moderate hand effort.
fig 2
a
b c
Assembly of your folding trike is as follows. If you are
assembling from a boxed state, you start by unpacking it all
carefully. Once all the packaging has been removed, the fun bit
begins.
