GreenWorks LMF421 - Exploded View; Parts Identification

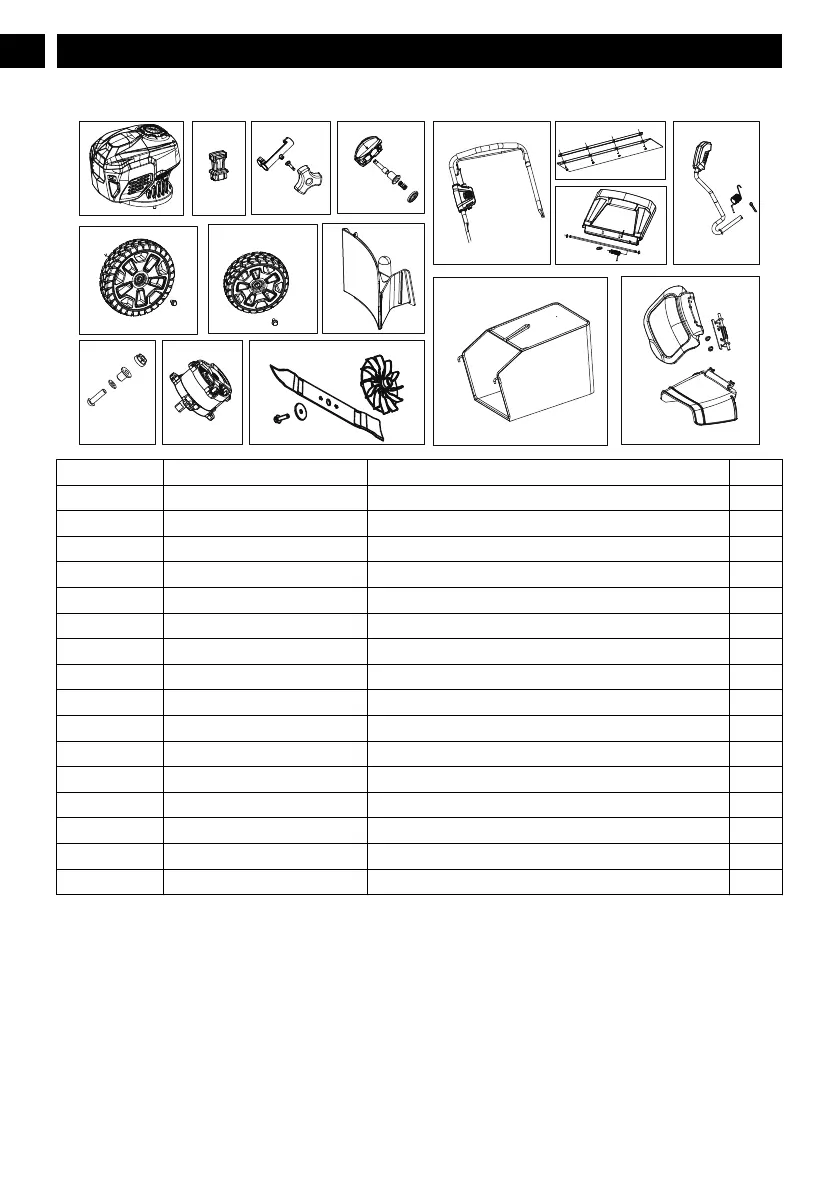

12 EXPLODED VIEW
1
2
3
4
5
8
11
13
15
14
16
12
9
10
6
7
No. Part No. Description Qty.
1 R0202561-00 Power head 1
2 R0201860-00 Safety key 1
3 RB341291179A Upper handle knob/bolt 2
4 RB332071179C Lower handle knob 2
5 R0202562-00 Upper control assembly 1
6 R0202556-00 Rear shield 1
7 R0202557-00 Rear cover assembly 1
8 R0202558-00 Height adjustment lever 1
9 R0200662-00 Rear wheel assembly 2
10 RB341271179A Front wheel assembly 2
11 R0202509-00 Mulch plug 1
12 RB332101179C Lower handle connection assembly 2
13 R0202559-00 Motor 1
14 R0202502-00 Blade assembly 1
15 R0202560-00 Grass catcher 1
16 RB311061555 Side discharge chute kit 1
14
