GreenWorks LMF421 - Install the Upper Handle; Install the Grass Catcher; Mower Attachments; Install the Mulch Plug

WARNING
Do not damage or pinch the cables when you fold or unfold
the handle.

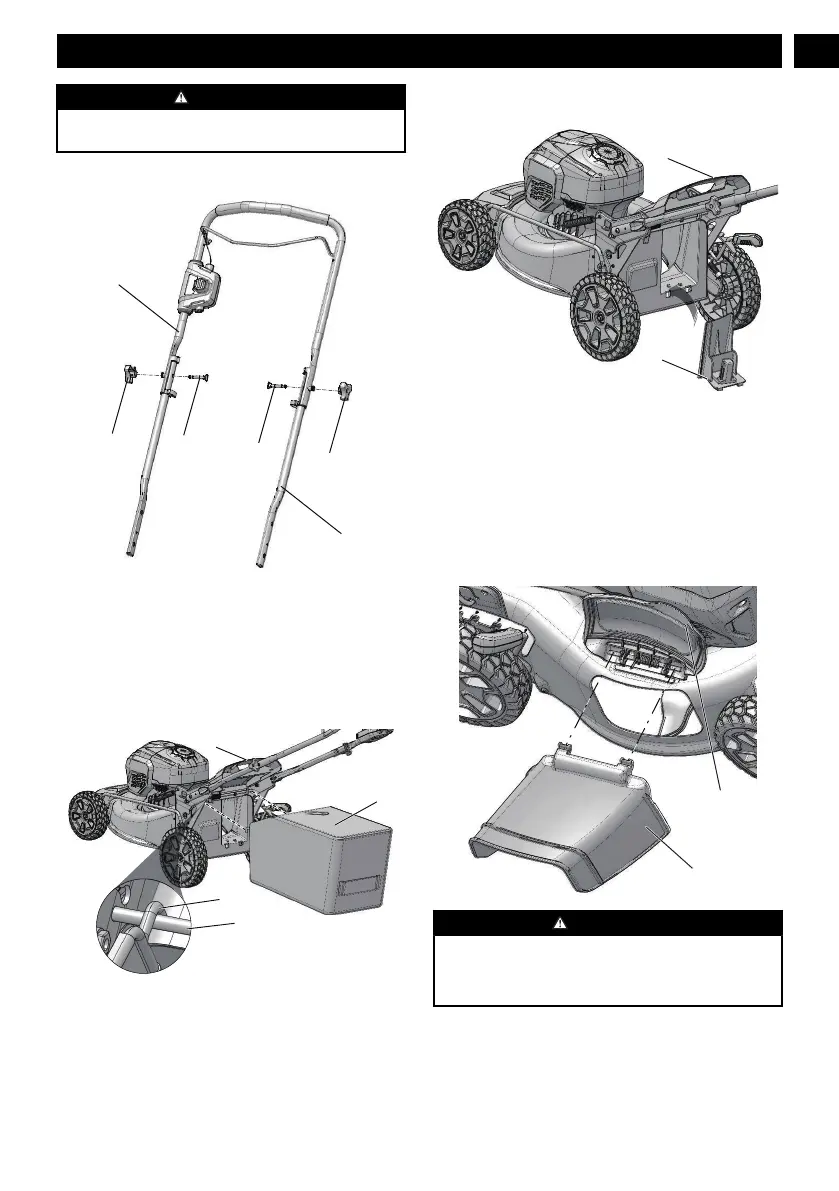

6.3 INSTALL THE UPPER HANDLE
3
4
11
11
12
12
1. Align the holes in the upper handle (3) and the lower
handle (4).
2. Put the bolts (12) through the holes.
3. Tighten the knobs (11) onto the bolts (12).
4. Do the same operation on the other side.
6.4 INSTALL THE GRASS CATCHER
13
14
5
8
1. Remove the mulch plug.
2. Open the rear discharge door (5) and hold it.
3. Hold the the grass catcher (8) by its handle and engage
the hooks (13) on the door rod (14).
4. Close the rear discharge door.
6.5 INSTALL THE MULCH PLUG
5
9
1. Remove the grass catcher.
2. Open the rear discharge door (5) and hold it.
3. Hold the mulch plug (9) by its handle and fit it in the
discharge chute.
4. Close the rear discharge door (5).
6.6 INSTALL THE SIDE DISCHARGE
CHUTE
23
13
CAUTION
When you use the side discharge chute,
• do not install the grass catcher.
• keep the mulch plug installed.
1. Open the side discharge door (23) and hold it.
2. Line up the recesses of the side discharge chute (13)
below the pivot.
3. Close the side discharge door.
9
English
EN
