GreenWorks MO40L4413 - Exploded View

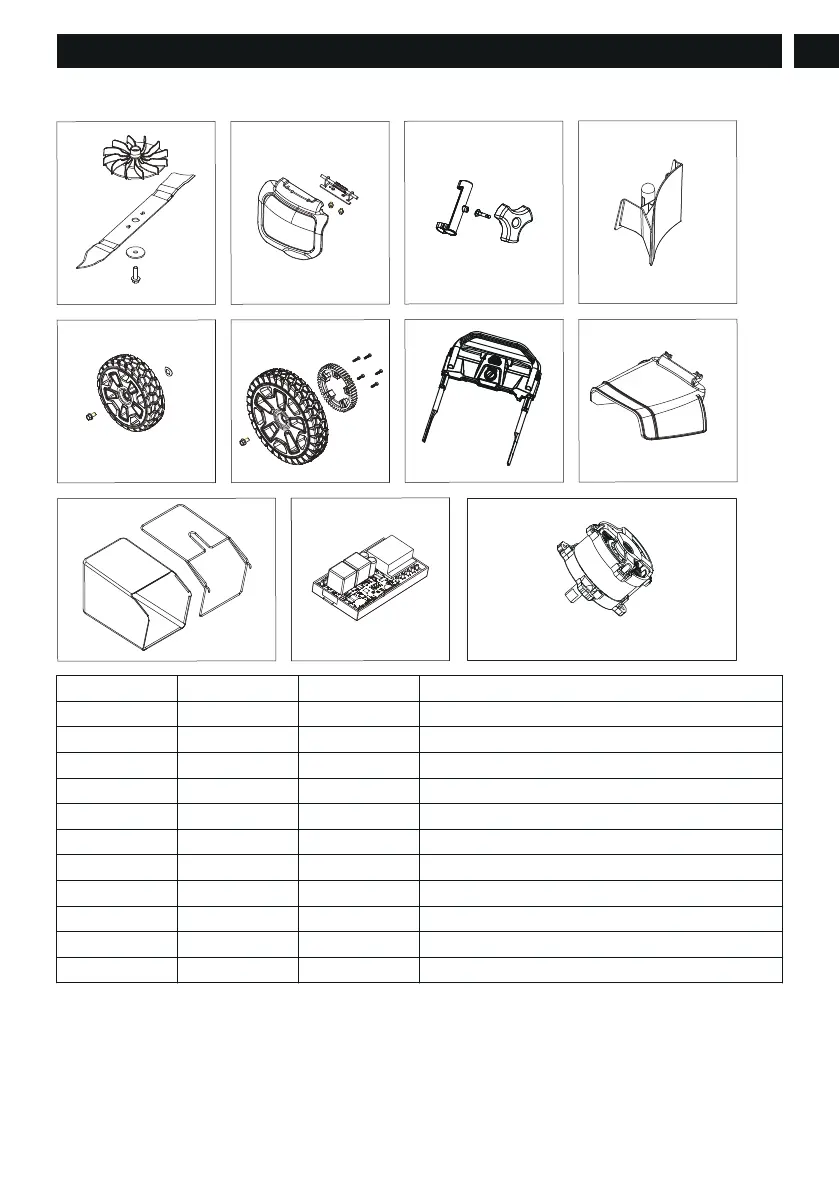

13 EXPLODED VIEW
1
3
4
5
9
10
11
6 7 8
2
No. Part No. Qty. Description
1 R0200742-00 1 Blade assembly kit
2 RB311081179A 1 Side discharge cover kit
3 R0100445-00 2 Handle knob/bolt assembly
4 R0200068-00 1 Mulch plug kit
5 RB341281179AB 1 8" front wheel assembly
6 R0100476-00 1 10" rear wheel assembly
7 R0201042-00 1 Upper handle assembly
8 R0200226-00 1 Side discharge chute
9 R0200069-00 1 Grass catcher assembly
10 R0201043-00 1 Power control board
11 R0201026-00 1 Motor
