4. Turn the handle knobs 90° until they engage the holes in
the brackets.
NOTE
Make sure that the two handle knobs are in the same
position.
WARNING
Do not damage or pinch the cables when you fold or unfold
the handle.

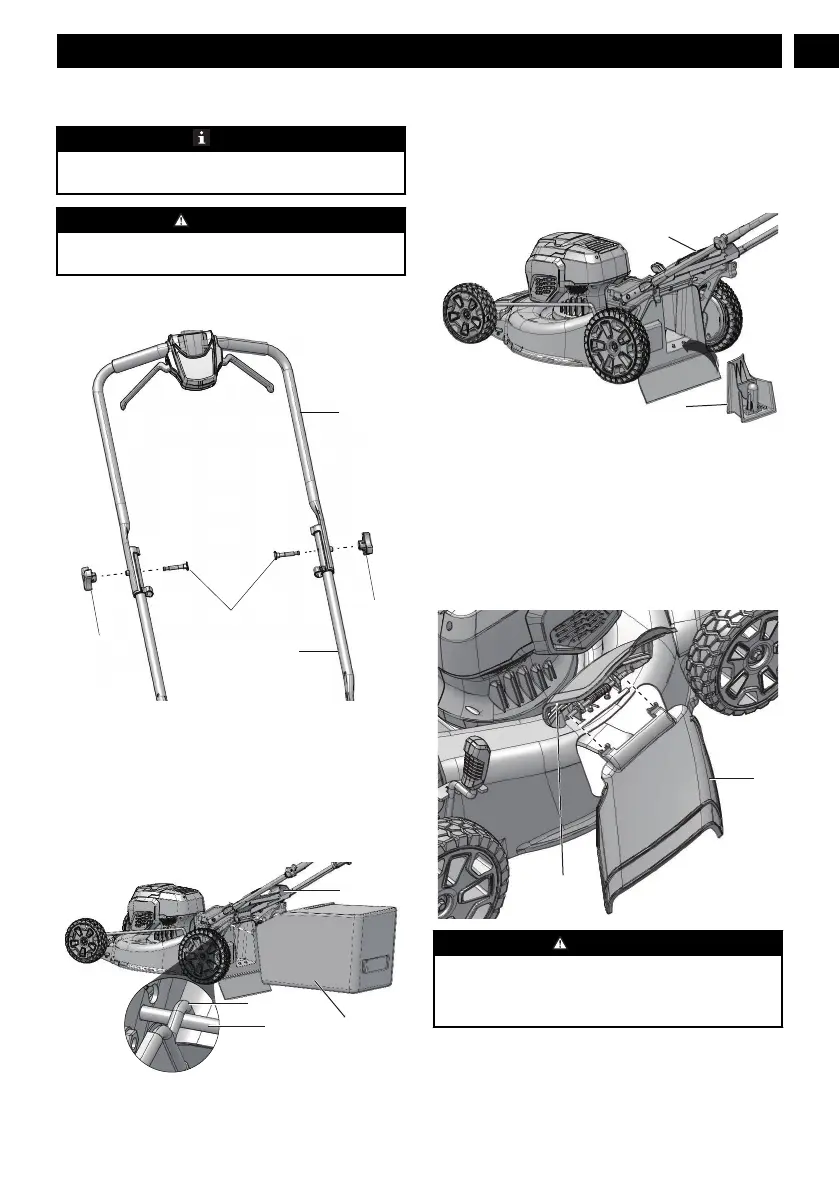

7.3 INSTALL THE UPPER HANDLE
3
4
14
15
15
1. Align the holes in the upper handle (3) and the lower
handle (4).
2. Put the bolts (14) through the holes.
3. Tighten the knobs (15) onto the bolts.
4. Do the same operation on the other side.
7.4 INSTALL THE GRASS CATCHER
20
25
10
5
1. Remove the mulch plug.
2. Open the rear discharge door and hold it.
3. Hold the the grass catcher (10) by its handle and put the
hooks (20) over the door rod (25).
4. Close the rear discharge door.
7.5 INSTALL THE MULCH PLUG
12
5
1. Remove the grass catcher.
2. Open the rear discharge door (5) and hold it.
3. Hold the mulch plug (12) by its handle and fit it in the
discharge chute.
4. Close the rear discharge door.
7.6 INSTALL THE SIDE DISCHARGE
CHUTE
9
16
CAUTION
When you use the side discharge chute,
• Do not install the grass catcher.
• Keep the mulch plug installed.
1. Open the side discharge door (16) and hold it.
2. Line up the recesses of the side discharge chute (9) below
the pivot.
9
