9

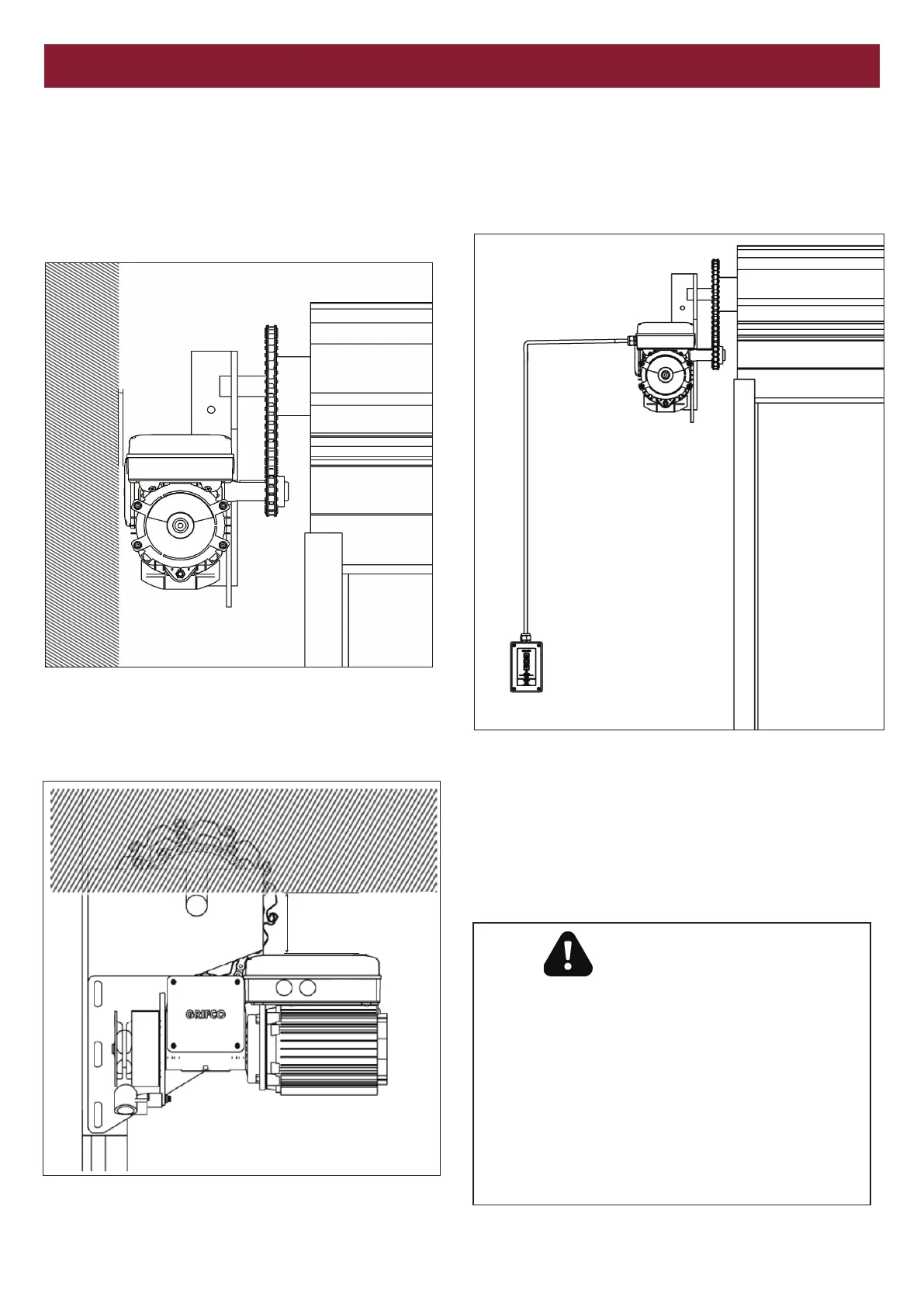

INSTALLATION
Slide room to imposing structures
The E-Drive APE housing is not a serviceable area and can be
located within 10mm of an imposing structure without affecting
installation. Where there is insufficient side room, consider using
the opposite hand opener and mount inboard with a Grifco®
Inboard Mounting Kit, P/N IBMK.
Location of Controller
Controller has 6 metres of cable with RJ45 ends ready to connect
the E-Drive opener to the controller. E-Drive Controller Extension
Kit (P/N EK01) is available if needed.
Limited head room
The E-Drive main control housing is a serviceable area and will
need to be accessed by service personnel. Ensure the installation
allows a minimum 150mm clearance.
If there is insufficient head room above the E-Drive opener to allow
servicing then a Grifco® Wall Mount Kit (P/N WMK2) or Grifco®
Rotation Bracket (P/N RBK2) can be used to reposition the main
control housing.
WARNING
MECHANICAL
When securing the E-Drive opener with the 4 x M12 x 40mm
long fasteners (based on an 8mm mounting plate) and spring
washers provided, it is critical to ensure that the applied
torque is between 80-90Nm. When mounting through thicker
sections, ensure a minimum of 30mm of screw thread is
engaged with the female thread. Use of incorrect fasteners
or torque may cause serious product damage, personal
injury or death. When fixing through a slotted plate, ensure
that the slots are no wider than 13mm as a spring washer
may not be adequate in outside diameter to support the
hexagon head.
min. 150mm
min.
10mm
