Grill Chef SS72 LP - Grill Head Assembly Steps; Mounting Grill Head to Cart; Installing Side Shelves and Brackets

14
12.
13.

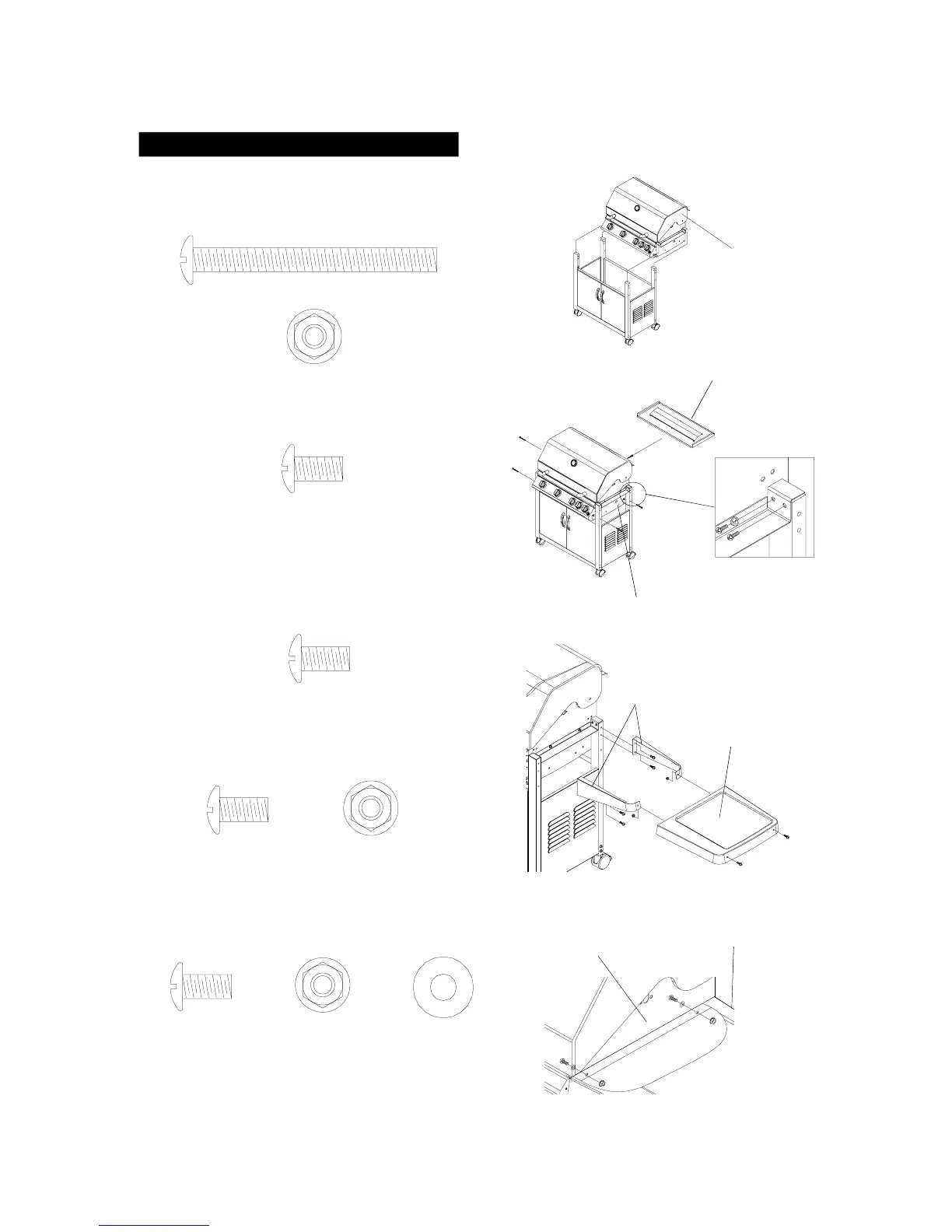

Grill Head Assembly
14.
Put the grill head onto cart. Secure grill head to
all cart legs using 4 of 1/4" x 2-1/2" Phillips Head
Screws and 1/4" Nuts. See Figure 6,7.
Secure Bowl Bracket to Cart Legs using 4 of 1/
4" x 1/2" Phillips Head Screws. Repeat this step
for the other side. See Figure 7.
Fully tighten all leg screw, Side Panel Screws,
Door Bracket screws and grill head screws.From
the back of the cart, slide the grease draining tray
into the grill head. See Figure 7.
Attach the Side Shelf Brackets to Cart Leg using
8 of 1/4" x 1/2" Phillips Head Screws. See Figure
8.
Place the Side Shelves over the Side Shelf
brackets. Secure firmly using 4 of 1/4" x 1/2"
Phillips Head Screws and 1/4" Lock Nuts.See
Figure 8.
Align the Side Shelf holes to Bowl Side Panel and
Side Shelf Bracket. Secure firmly by using 1/4"
x 1/2" Phillips Head Screws, 1/4" Nuts and 1/4"
Washer. See Figure 9.
15.
16.
1/4" Lock Nut x 4
Figure 6
Figure 8
Figure 7
1/4" x 2-1/2" Phillips Head Screw x 4
1/4" Lock Nut x 4
1/4" x 1/2" Phillips Head Screw x 8
1/4" x 1/2" Phillips Head Screw x 8
1/4" x 1/2" Phillips
Head Screw x 4
1/4" Lock Nut x 4
GRILL BOWL
BOWL BRACKET
SIDE SHELF BRACKET
SIDE SHELF
1/4" x 1/2" Phillips
Head Screw x 4
Figure 9
17.
SIDE SHELF
BOWL SIDE PANEL
1/4" Washer x
4
GREASE TRAY
