ASSEMBLY INSTRUCTIONS

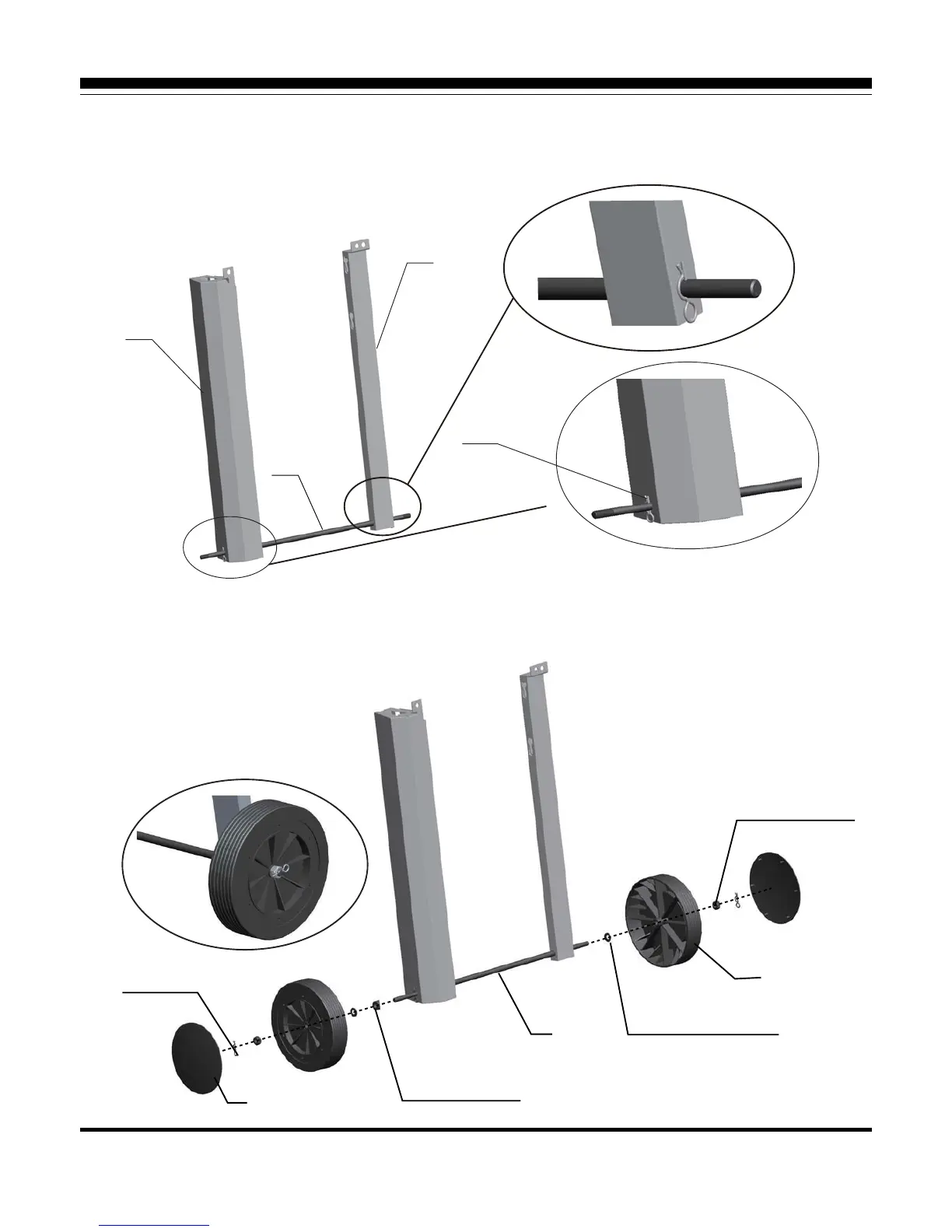

STEP 1
Insert the axle (20) through the front right pole (21) and rear right pole (22), secure them with 2pcs
R-pins.
STEP 2
Attach 1pc pp washer, 2pcs D10 washers, 2pcs M10 nuts, 2pcs R-pins, 2pcs wheels (19) and 2pcs
wheel caps (18) to the axle (20) and secure them in turn as shown.
21
20
R-pin 2pcs
22
PP washer 1pc
D10 washers 2pcs
M10 nuts 2pcs
18
19
20
R-pin 2pcs
