Grill Zone SRGG41207 - Step 3 & 4: Transom and Pole Connections

12

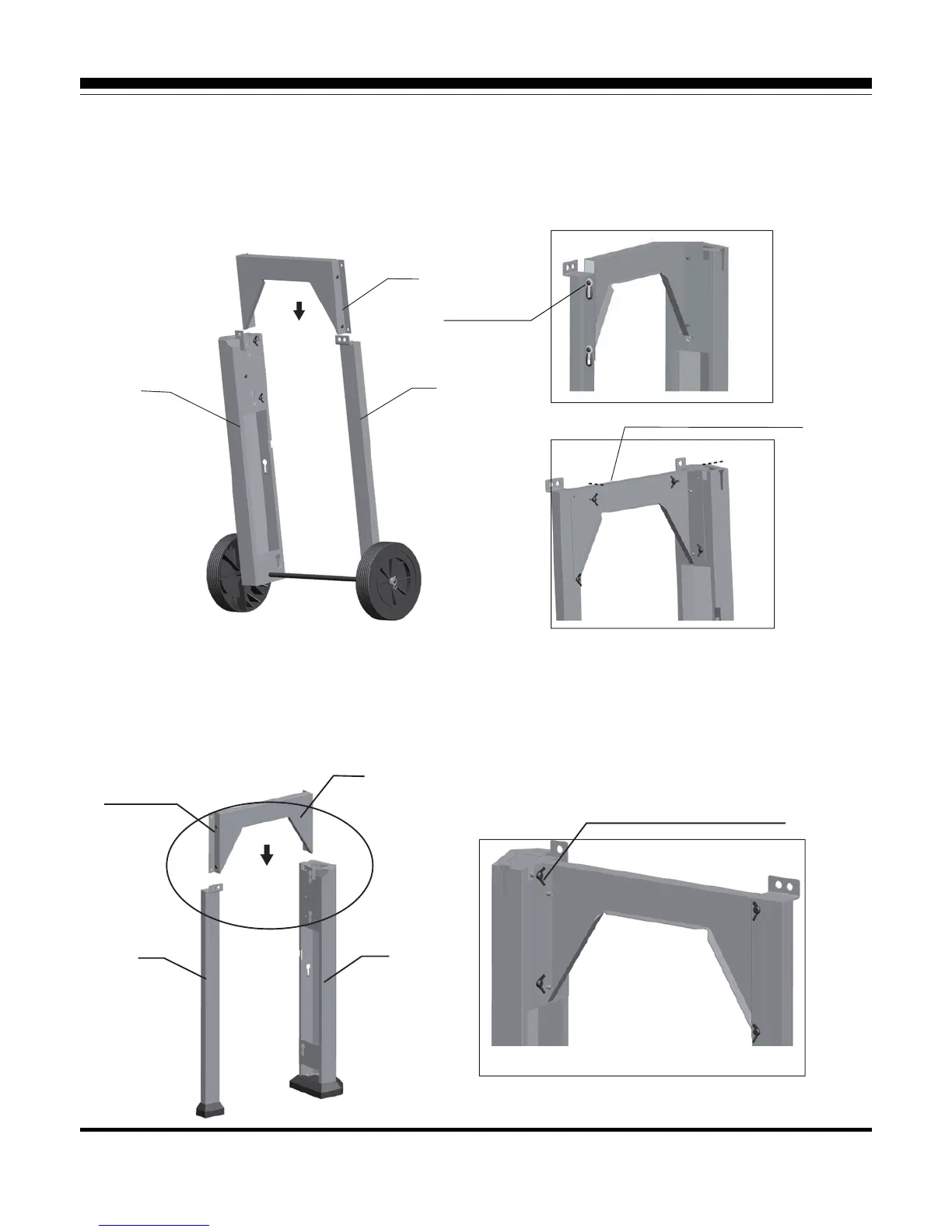

ASSEMBLY INSTRUCTIONS
STEP 4
Insert the 4pcs pre-installed bolts on left transom (13) into the 4 key holes on front left pole (15)
and rear left pole (14), secure them with 4pcs M5 x 12 wing bolts.
STEP 3
23
21
13
15
14
22
M5 X 12 wing bolt 4pcs
M5 X 12 Wing bolts 4pcs
Pre-installed
bolts 4 pcs
Pre-installed
bolts 4 pcs
Insert the 4pcs pre-installed bolts on right transom (23) into the four key holes on front right pole (21)
and rear right pole (22), secure them with 4pcs M5 x 12 wing bolts.
