ASSEMBLY INSTRUCTIONS

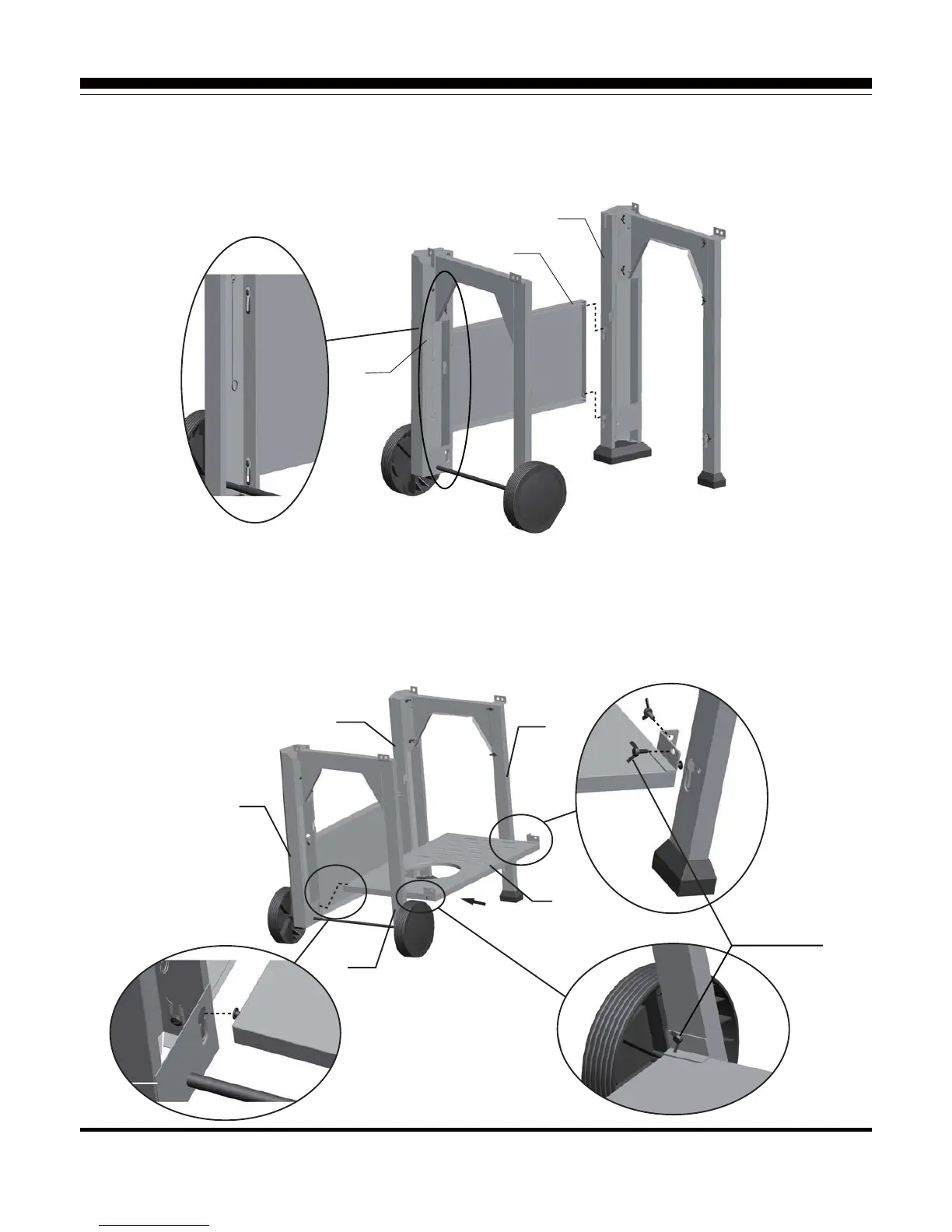

STEP 5

STEP 6

M5 X 12 wing

bolt 3pcs

Insert the 4pcs pre-installed bolts on lower front panel (17) into the 4 key holes on front left pole (15)

and front right pole (21), press down to position.

1) Insert the 2pcs pre-installed bolts on bottom panel (35) into the 2 key holes on front left pole (15)

and front right pole (21);

2) Insert the 2pcs pre-installed bolts on bottom panel (35) into the 2 key holes on rear left pole (14)

and rear right pole (22);

3) Press down the bottom panel (35) to position and secure it to the rear left pole (14) and rear right

pole (22) with 3pcs M5x12 bolts.
