ASSEMBLY INSTRUCTIONS
STEP 7
STEP 8
36
35

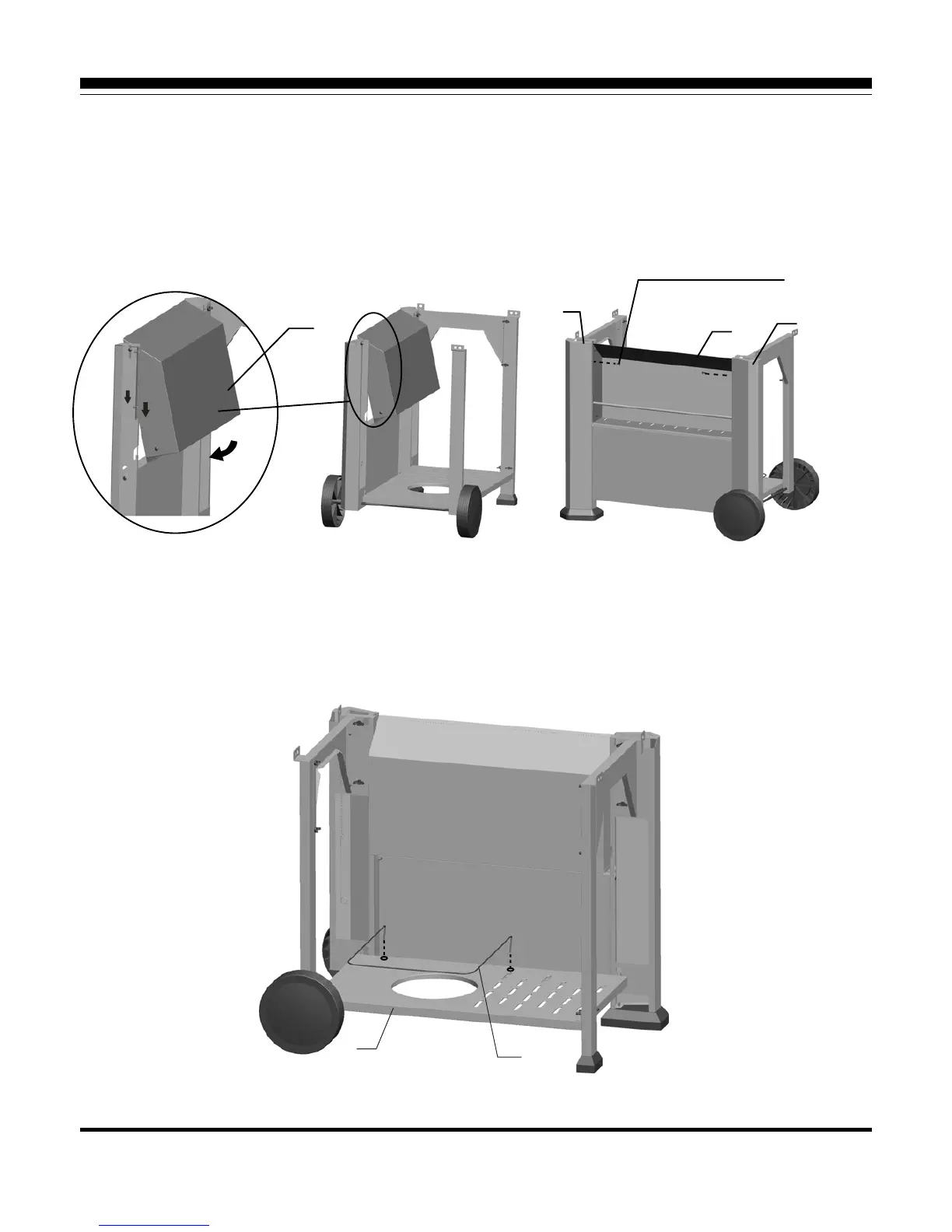

Insert the 2pcs pre-installed bolts on condiment shelf (16) into the holes on top of front left pole (15)
and front right pole (21), slide down and then place another 2pcs pre-installed bolts on condiment
shelf (16) to position as shown.
Insert the cylinder fixing hook (36) into 2 holes on bottom panel (35).
16
15
21
16
M5 x 12 bolts 2pcs
Then fix condiment shelf (#16) onto front left & right poles (#15 & #21) with 2pcs M5 x 12 bolts as
illustrated.
