ASSEMBLY INSTRUCTIONS

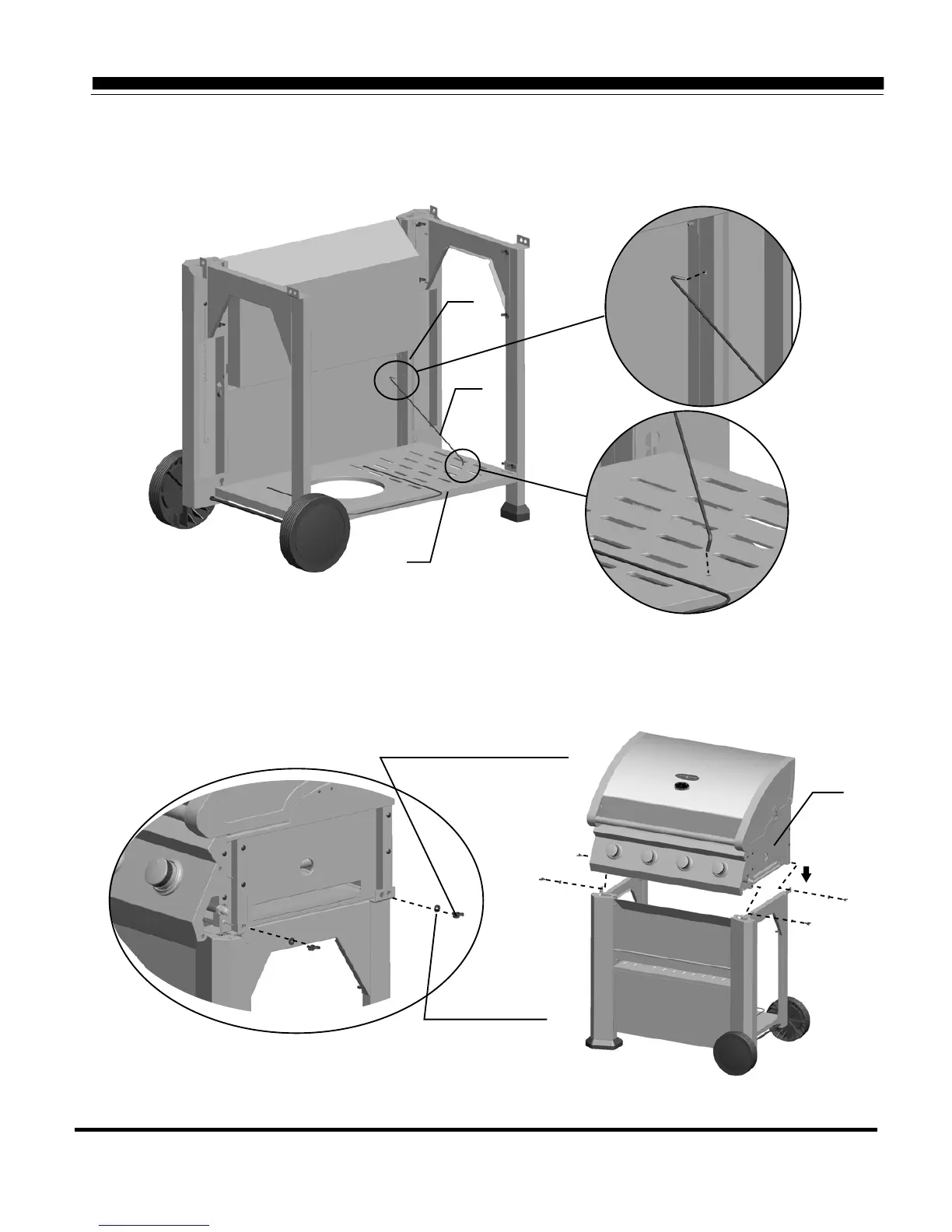

STEP 9
Insert the ends of connection bar (37) into the holes on front left pole (15) and bottom panel (35)
STEP 10
Place the grill body (30) onto the assembled cart, secure it with 4pcs D5 washersand 4pcs
M5x12 wing bolts.
M5 X 12 wing bolts 4pcs
D5 washers 4pcs
35
37
15
30
as illustrated.
