ASSEMBLY INSTRUCTIONS
Step 11

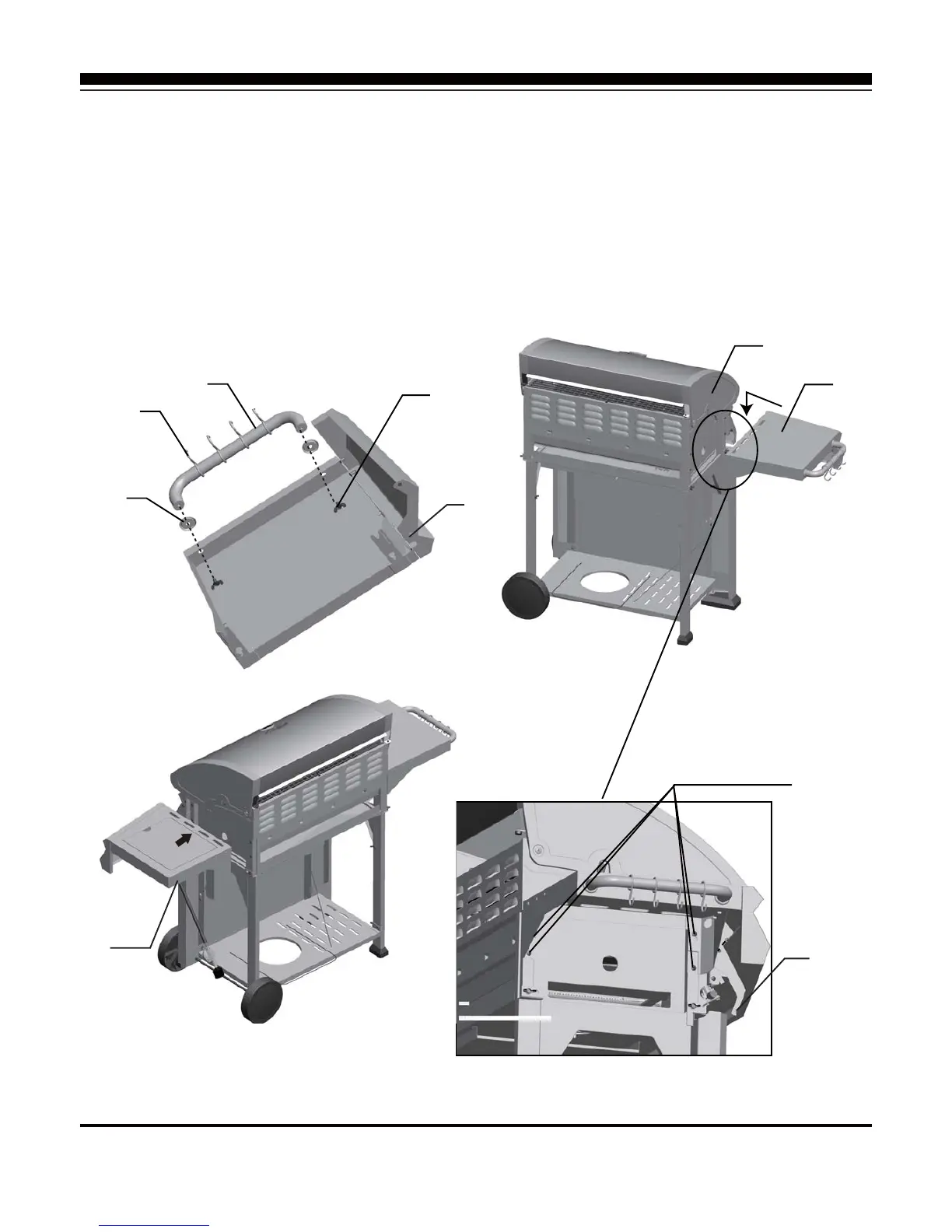

2) Install left side shelf (7) onto grill body (30) with 4pcs M5 x 16 bolts which are pre-installed on the
grill body, not to tighten them instantly. Locking front panel of left side shelf (7) to main control panel
with 2pcs M5 x 12 bolts (CC). Finally, tighten all the 6pcs bolts.
3) Repeat the same procedure to install right side shelf (24).
7
24
CC
M5 x 16 bolts 4pcs
(pre-installed)
30
7
BB
9
10
8
1) Hang 4pcs towel hooks (10) on the side shelf handle (9). Install side shelf handle (9) and 2pcs side
shelf handle bezels (8) to left side shelf (7) with 2pcs M6 x 12 bolts.
