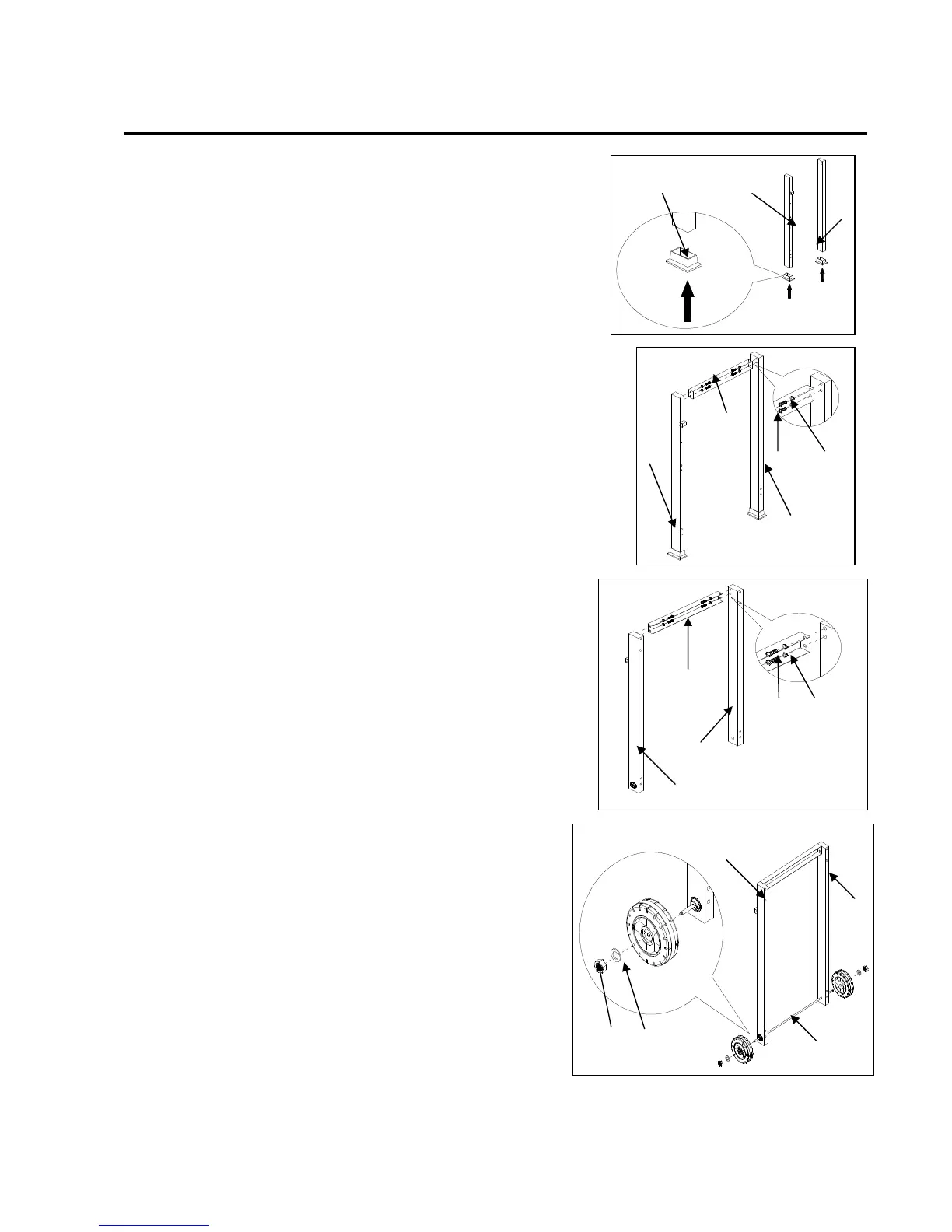

1. Cart Assembly
a) Place the Cart Caster Insert (K) into the
Cart Leg, Front Left (F) and Cart Leg,
Back Left (G). As shown in Fig.1.
b) Attach Cart Leg, Front Left (F) and
Cart Leg, Back Left (G) with Cart Frame (H)
Using four 1/4-in. x 15-mm Truss Head
Screws (CC) and four 1/4-in. Locking
Washers (DD). Make sure the flat side of
Cart frame (H) faces out to the right when
attaching. As shown in Fig. 2.
c) Attach Cart Leg, Front Right (I) and
Cart Leg, Back Right (J) to the Cart
Frame (H) using four ¼-in. 15mm
Truss Head Screws (CC) and four
¼-in. Locking Washers (DD). Make sure
the flat side of Cart Frame (H) faces out
to the left when attaching. As shown in Fig. 3.
2. Wheel Assembly
Insert Wheel Axle (Q) through Cart Leg, Front
Right (I) and Cart Leg, Back Right (J). Place
the Wheels (C) on the Wheel Axle (Q) and secure
with two 1/4-in. Flat Washers (GG) and two 1/4-in.
Nuts (HH). As shown in Fig. 4.
ASSEMBLY INSTRUCTIONS
Fig. 1
HH
GG
DD
I
J
CC
H
K
F
G
I
Fig. 3
Fig. 4
Fig. 2
F
G
H
CC
DD
J
Q
