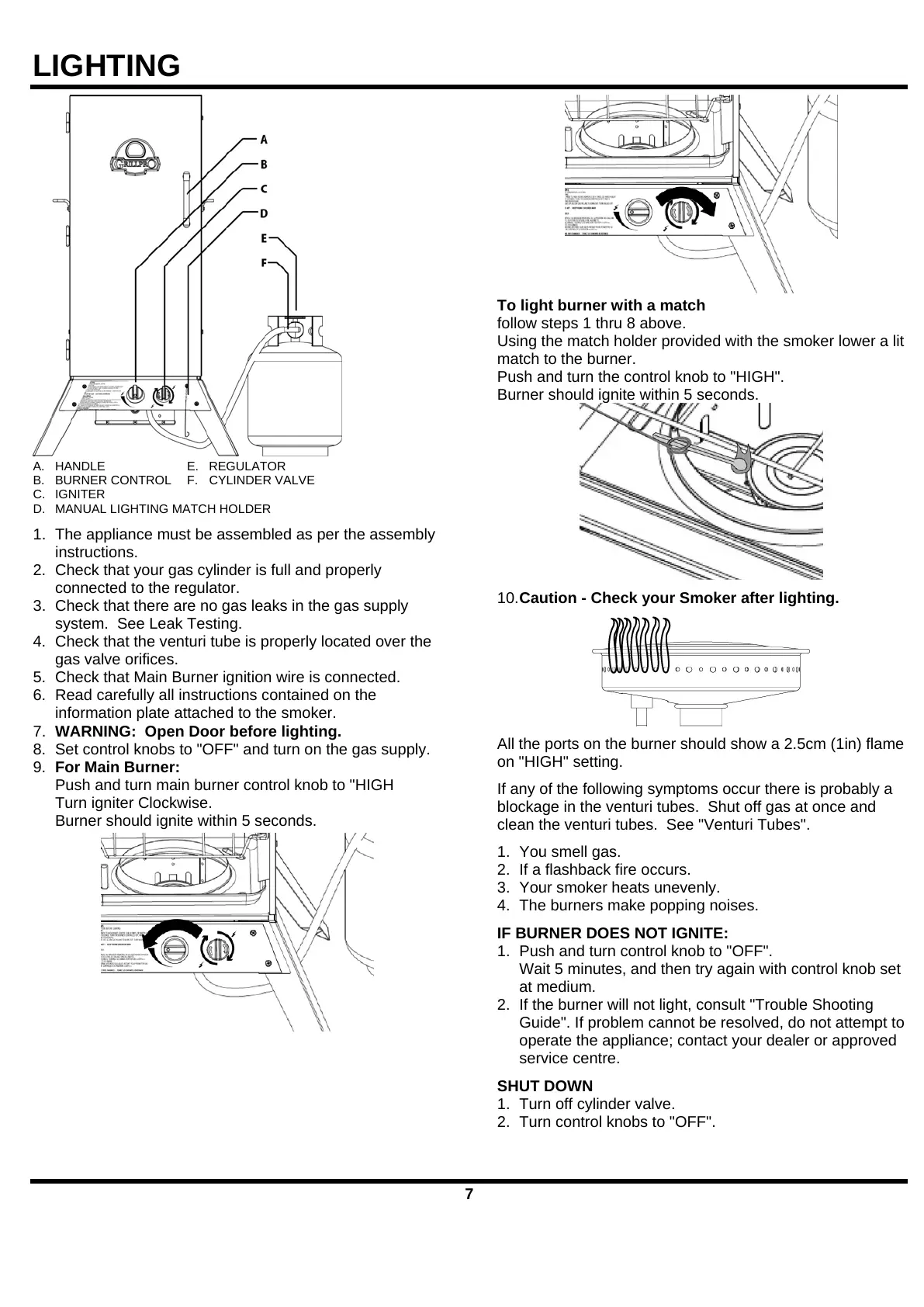

LIGHTING
A. HANDLE E. REGULATOR
B. BURNER CONTROL F. CYLINDER VALVE
C. IGNITER
D. MANUAL LIGHTING MATCH HOLDER
1. The appliance must be assembled as per the assembly
instructions.
2. Check that your gas cylinder is full and properly
connected to the regulator.
3. Check that there are no gas leaks in the gas supply
system. See Leak Testing.
4. Check that the venturi tube is properly located over the
gas valve orifices.
5. Check that Main Burner ignition wire is connected.
6. Read carefully all instructions contained on the
information plate attached to the smoker.
7. WARNING: Open Door before lighting.
8. Set control knobs to "OFF" and turn on the gas supply.
9. For Main Burner:
Push and turn main burner control knob to "HIGH
Turn igniter Clockwise.
Burner should ignite within 5 seconds.
To light burner with a match
follow steps 1 thru 8 above.
Using the match holder provided with the smoker lower a lit
match to the burner.
Push and turn the control knob to "HIGH".
Burner should ignite within 5 seconds.
10. Caution - Check your Smoker after lighting.
All the ports on the burner should show a 2.5cm (1in) flame
on "HIGH" setting.
If any of the following symptoms occur there is probably a
blockage in the venturi tubes. Shut off gas at once and
clean the venturi tubes. See "Venturi Tubes".
1. You smell gas.
2. If a flashback fire occurs.
3. Your smoker heats unevenly.
4. The burners make popping noises.
IF BURNER DOES NOT IGNITE:
1. Push and turn control knob to "OFF".
Wait 5 minutes, and then try again with control knob set
at medium.
2. If the burner will not light, consult "Trouble Shooting
Guide". If problem cannot be resolved, do not attempt to
operate the appliance; contact your dealer or approved
service centre.
SHUT DOWN
1. Turn off cylinder valve.
2. Turn control knobs to "OFF".
7
