Installation, care and maintenance Minex
12

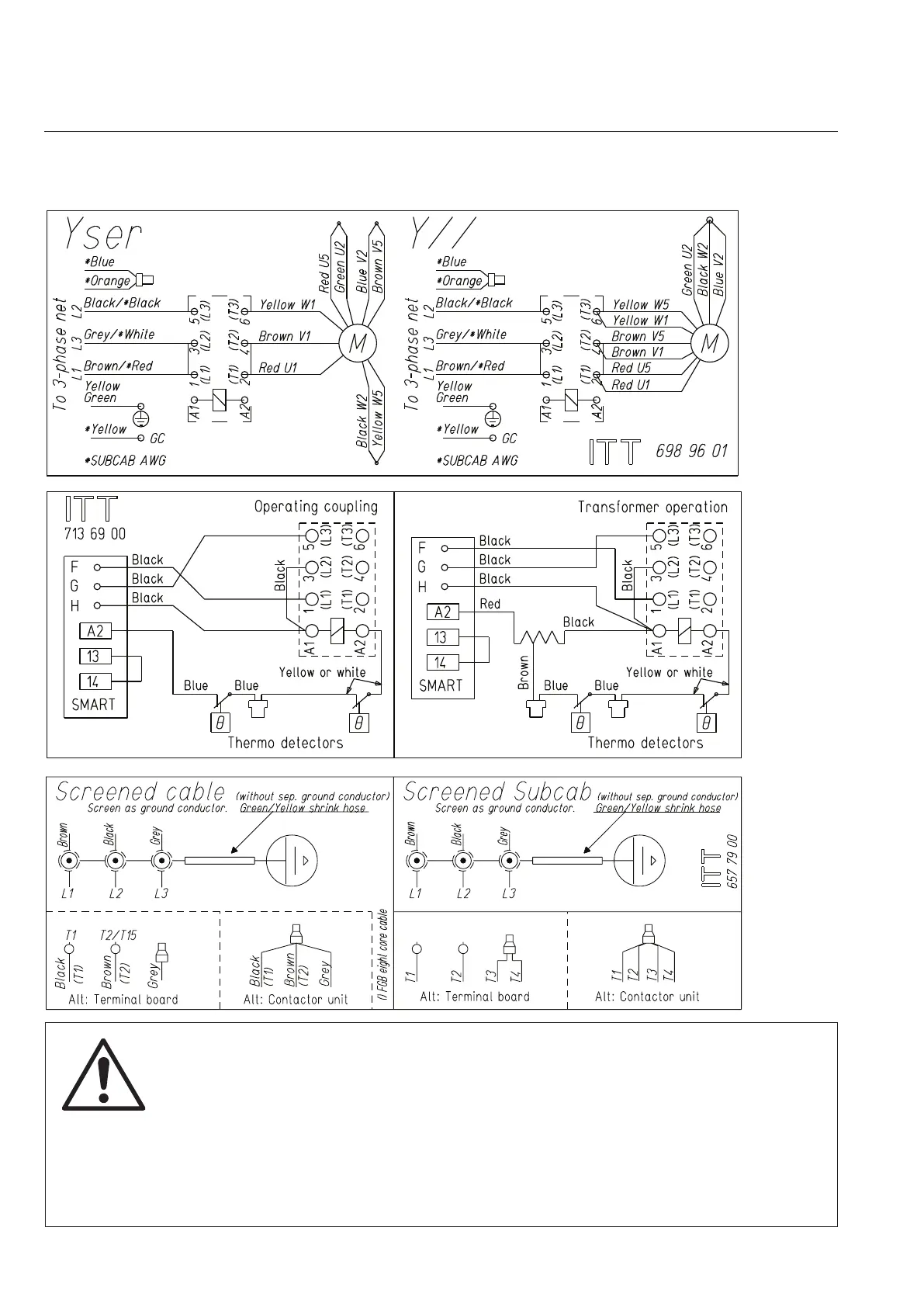

50/60 Hz 3~, SUBCAB
®
/SUBCAB
®
AWG/Screened cable
with contactor unit, Yser. or Y//, with or without transformer operation
NOTE!
The thermal contacts in the winding are CSA approved only for 250 V and below.
For other voltages when CSA approval is required a transformer is used to reduce
the voltage over the thermal contacts.
As a consequence the transformer has to be disconnected when the connection is
changed from 440-460 V Yser to 220-240 V Y// or to 230 V single phase. If the
change is done from 220-240 V Y// or 230 V single phase to 440-460 V Yser the
transformer has to be connected.
