Grindmaster RC400 - Spare Parts List

11
11

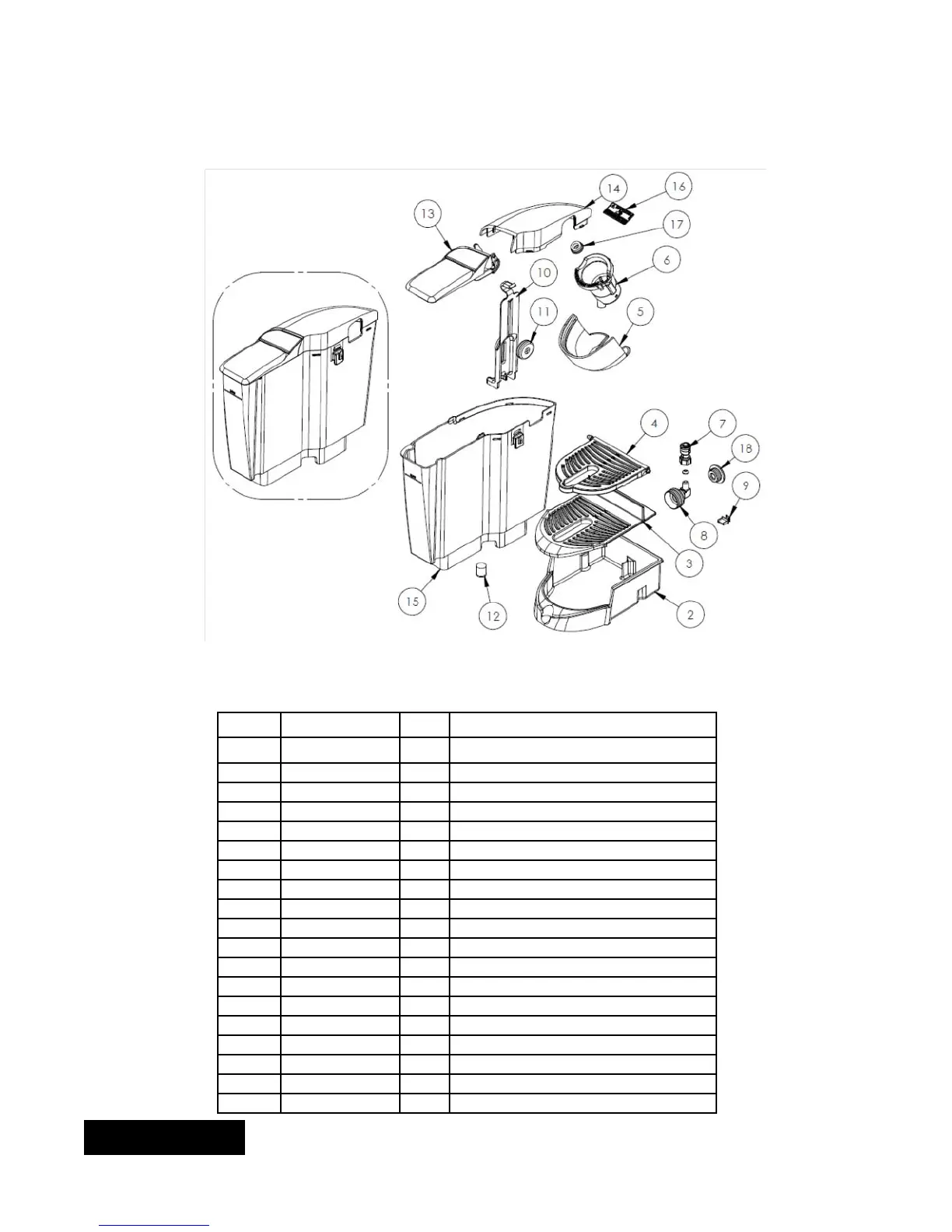

Exploded View Drawing
Spare Parts List
Item # Part Number Qty Description
1 230-00001 1 Reservoir sub-assembly
2 210-00030 1 Drip Tray- single Cup
3 210-00031 1 Grid- Single Cup
4 230-00004 1 Flip down grid sub-assembly
5 210-00004 1 Bezel
6 230-00015 1 Capsule holder sub-assembly
7 359-00003 1 Fitting, MUR-LOK 1/4", 1/4" Flare
8 359-00031 1 Fitting, Assy, 1/4 FL X 3/4 HS, BRS
9 B256A 1 Cover, USB Port
10 210-00052 1 Float guide
11 230-00021 1 Float assembly
12 280-00001 1 Valve, DW15 Check
13 210-00230 1 Reservoir cover assembly
14 210-00233 1 Lid- stationary
15 210-00051 1 Reservoir
16 380-00020 1 Label, Warning, Hot Liquid
17 210-00017 1 Seal-Capsule upper
18 210-00235 1 Cap, Molded inlet valve
19 359-00115 1 Gasket, 1/4" SAE flare
