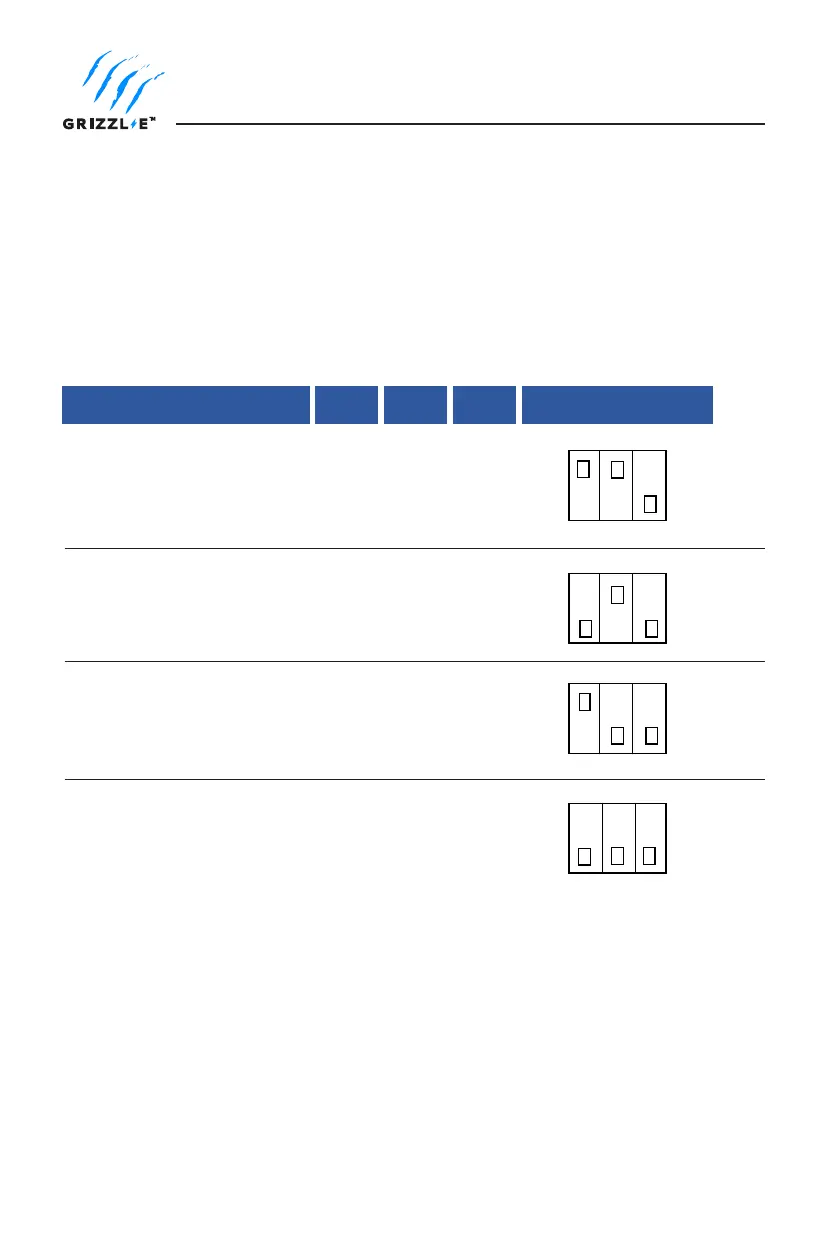

Maximum Current Output DIP 1 DIP 2 DIP3
DIP Switch Setting
40A Maximum Current Output
(Factory Default Setting)
32A Maximum Current Output
24A Maximum Current Output
16A Maximum Current Output
Down
DOWNDOWN
UP UP
To adjust the Maximum Current Output Setting DIP Switches:
1. Ensure the Charging station is unplugged. Place the Charging Station on a at surface with
the front cover facing up.
2. Use a Phillips Head screwdriver to remove the front cover by removing the 4 screws at
each corner of the charging station.
3. Using a non-conductive object adjust the Maximum Current Output using the following
combination of DIP switch settings:
4. Replace the enclosure lid by tightening the 4 screws at each corner
